Search › Model › BU72

BU72

Toyota DYNA-TOYOACE · 1989 · 4,435 parts · 215 categories

4,435 items

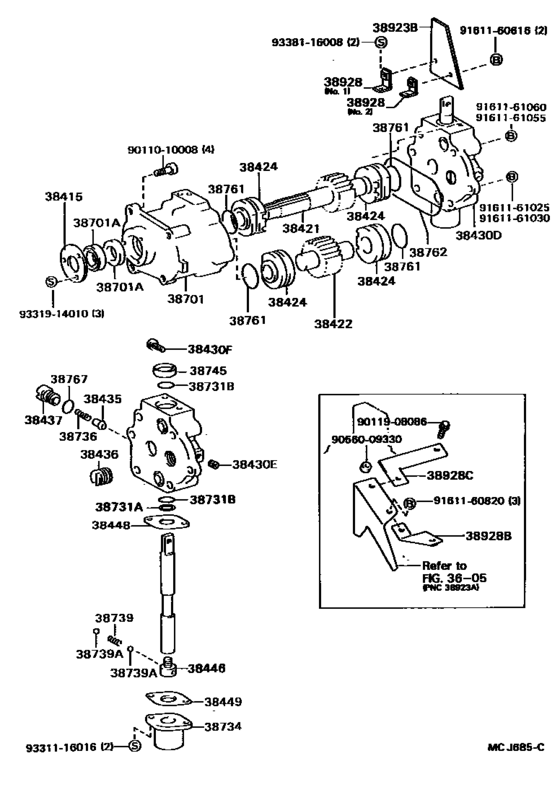

Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3) 49

#	OEM	Part name
38415	38415-96300	Cover, Power Oil Pump Seal
38421	38421-96300	Gear, Power Oil Pump Drive
38422	38422-96300	Gear, Power Oil Pump Follow
38424	38424-96300	Bush, Power Oil Pump Inner
38430	38430-96302	Valve Assy, Power Control
38430	90344-51006	Plug (For Power Control Valve)
38430	90114-08025	Bolt, Serration (For Power Take-Off Shaft)
38435	38435-96300	Valve, Power Control Check, No.1
38436	38436-96301	Valve, Power Control Check, No.2
38437	38437-96300	Plug, Power Control Check Valve
38446	38446-96300	Stopper, Power Control Detention Spring
38448	38448-96300	Holder, Power Control Plunger Cover
38449	38449-96300	Gasket, Power Control Plunger Cover
38701	38411-96300	Body Sub-Assy, Oil Pump
38701	90311-22004	Seal, Oil (For Power Take-Off)
38701	90311-22008	Seal, Oil (For Oil Pump Body)
38731	90562-18005	Ring, O (For Plunger No.1)
38731	96711-24018	Ring, O
38734	38441-96301	Cover, Plunger
38736	90501-04017	Spring, Check Valve
38739	90501-08069	Spring, Plunger Neutral Indicating Ball
38739	90360-05004	Ball, Plunger Neutral Indicating
38745	90304-17001	Seal, Oil (For Pump Control Valve Plunger)
38761	90301-33008	Ring, O (For Power Oil Pump)
38762	96711-31080	Ring, O (For Oil Pump Inner Bush)
38767	90301-10005	Ring, O (For Check Valve Spring)
38923	38923-96307	Protector, Power Take-Off Control, No.1
38928	38928-96308	Bracket, Power Take-Off Protector
38928	38928-96309	Bracket, Power Take-Off Protector
38928	38928-96300	Bracket, Power Take-Off Protector
38928	38928-96310	Bracket, Power Take-Off Protector, No.2
9011010008	90110-10008	Bolt, Cover, Short
9011908086	90119-08086	Bolt(For Transmission Input Damper Cover & Flywheel)
9056009330	90560-09330	New Genuine Part
9161160616	91611-60616	Bolt(For Transaxle Case Receiver)
9161160616	91611-B0616	Bolt(For Transaxle Case Receiver)
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9161161025	91611-61025	Bolt(For Transaxle & Engine Setting)
9161161025	91612-61025	Bolt (For Control Shaft Cover)
9161161030	91611-61030	Bolt (For Transmission Control Cable Bracket)
9161161030	91612-61030	Bolt (For Transmission Control Cable Bracket)
9161161055	91611-61055	Bolt(For Clutch Release Cylinder Setting)
9161161060	91611-61060	Bolt(for Clutch Release Cylinder Setting)
9161161060	91612-61060	Bolt(for Clutch Release Cylinder Setting)
9331116016	93311-16016	SCREW
9331914010	93319-14010	SCREW
9338116008	93381-16008	Bolt, Exhaust Valve Link Cover
9338116008	46791-37150	Bolt, Exhaust Valve Link Cover

OEM	Part name	Category
38411-96300	Body Sub-Assy, Oil Pump	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38415-96300	Cover, Power Oil Pump Seal	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38421-96300	Gear, Power Oil Pump Drive	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38422-96300	Gear, Power Oil Pump Follow	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38424-96300	Bush, Power Oil Pump Inner	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38430-96302	Valve Assy, Power Control	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38435-96300	Valve, Power Control Check, No.1	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38436-96301	Valve, Power Control Check, No.2	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38437-96300	Plug, Power Control Check Valve	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38441-96301	Cover, Plunger	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38446-96300	Stopper, Power Control Detention Spring	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38448-96300	Holder, Power Control Plunger Cover	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38449-96300	Gasket, Power Control Plunger Cover	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38923-96307	Protector, Power Take-Off Control, No.1	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38928-96300	Bracket, Power Take-Off Protector	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38928-96308	Bracket, Power Take-Off Protector	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38928-96309	Bracket, Power Take-Off Protector	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
38928-96310	Bracket, Power Take-Off Protector, No.2	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
46791-37150	Bolt, Exhaust Valve Link Cover	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90110-10008	Bolt, Cover, Short	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90114-08025	Bolt, Serration (For Power Take-Off Shaft)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90119-08086	Bolt(For Transmission Input Damper Cover & Flywheel)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90301-10005	Ring, O (For Check Valve Spring)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90301-33008	Ring, O (For Power Oil Pump)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90304-17001	Seal, Oil (For Pump Control Valve Plunger)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90311-22004	Seal, Oil (For Power Take-Off)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90311-22008	Seal, Oil (For Oil Pump Body)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90344-51006	Plug (For Power Control Valve)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90360-05004	Ball, Plunger Neutral Indicating	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90501-04017	Spring, Check Valve	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90501-08069	Spring, Plunger Neutral Indicating Ball	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90560-09330	New Genuine Part	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
90562-18005	Ring, O (For Plunger No.1)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
91611-60616	Bolt(For Transaxle Case Receiver)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
91611-60820	Bolt(For Transaxle & Engine Setting)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
91611-61025	Bolt(For Transaxle & Engine Setting)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
91611-61030	Bolt (For Transmission Control Cable Bracket)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
91611-61055	Bolt(For Clutch Release Cylinder Setting)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
91611-61060	Bolt(for Clutch Release Cylinder Setting)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
91611-B0616	Bolt(For Transaxle Case Receiver)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
91611-G0820	Bolt	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
91612-61025	Bolt (For Control Shaft Cover)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
91612-61030	Bolt (For Transmission Control Cable Bracket)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
91612-61060	Bolt(for Clutch Release Cylinder Setting)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
93311-16016	SCREW	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
93319-14010	SCREW	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
93381-16008	Bolt, Exhaust Valve Link Cover	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
96711-24018	Ring, O	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
96711-31080	Ring, O (For Oil Pump Inner Bush)	Power Take-Off Oil Pump ([09.1991 - ] (8910-9109)BU72..DMP ; (9109- )BU72..DM3)
