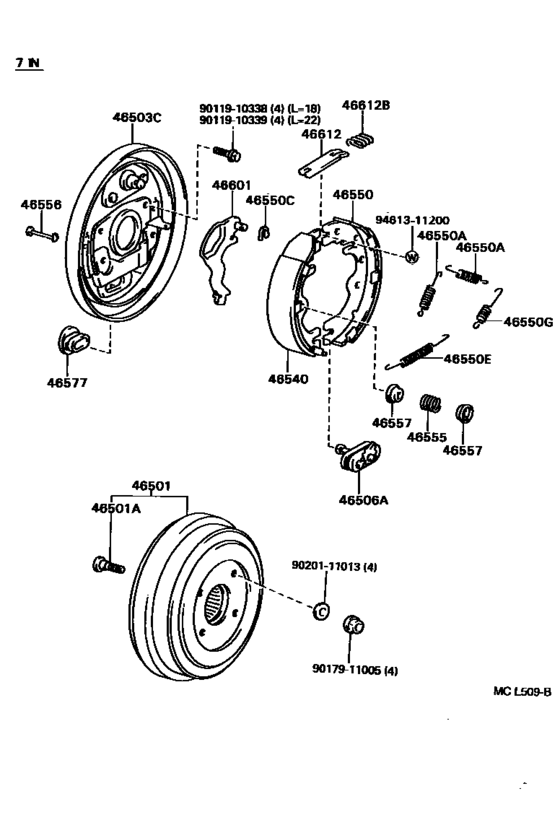

| 46501-36180 |
Drum Sub-Assy, Parking Brake |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 46503-36031 |
Plate Sub-Assy, Parking Brake |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 46506-36010 |
Screw Set, Shoe Adjusting, Rh |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 46530-25010 |
Shoe Assy, Parking Brake, Rh Or Center No.1 |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 46530-37030 |
Shoe Assy, Parking Brake, Rh Or Center No.1 |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 46577-36010 |
Cover, Adjusting Cam Hole |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 46601-36010 |
Lever Sub-Assy, Parking Brake Shoe |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 46612-36010 |
Strut, Parking Brake Shoe Lever |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 47447-22010 |
Pin, Shoe Hold Down Spring |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 47449-20011 |
Cup, Brake Shoe Hold Down |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 90114-11124 |
Bolt (For Transfer Output Shaft Companion Flange) |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 90119-10338 |
New Genuine Part |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 90119-10339 |
Bolt, Hexagon(For Front Disc Brake Caliper) |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 90179-11005 |
Nut, No.1 (For Propeller Shaft & Differential Setting) |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 90201-11013 |
Washer, No.1 (For Propeller Shaft & Differential Setting) |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 90213-06013 |
Washer, Type C(For Parking Brake Shoe) |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 90501-16025 |
Spring, Brake Shoe Hold Down |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 90504-10001 |
Spring, Compression(For Parking Brake Shoe Strut) |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 90506-14012 |
Spring, Tension, No.2(For Parking Brake Shoe Return) |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 90506-18001 |
Spring, Tension |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
| 94613-11200 |
WASHER |
Parking Brake & Cable ([10.1989 - ] (8808- )BU66,78,85,87,88,94..275,30T ; (8910- )BU72,73,74) |
