Search › Model › BU72

BU72

Toyota DYNA-TOYOACE · 1989 · 4,435 parts · 215 categories

4,435 items

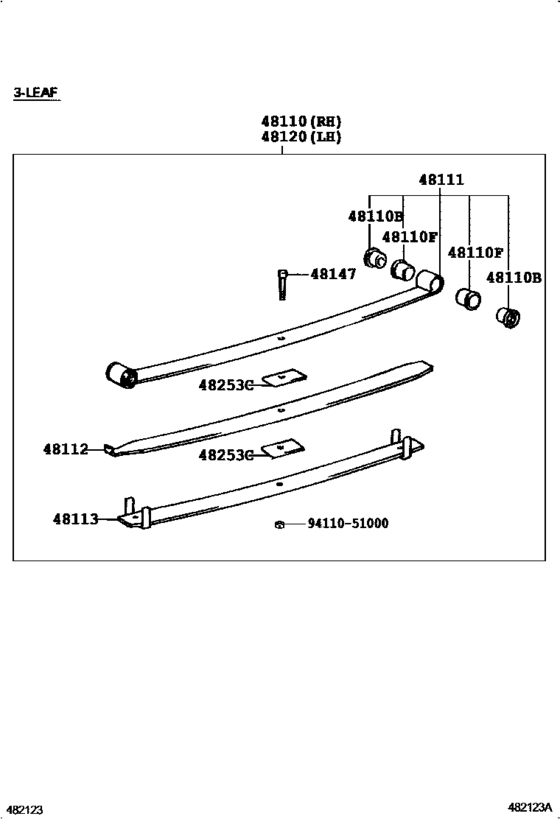

Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3) 26

#	OEM	Part name
48110	48110-3B670	Spring Assy, Front, Rh
48110	48110-3B672	Spring Assy, Front, Rh
48110	48110-3B671	Spring Assy, Front, Rh
48110	90385-23002	Bush(For Front Spring Pin)
48110	48299-36010	Bimetal Formed Bush(For Front Spring)
48111	48101-3B670	Leaf, Front Spring, No.1
48111	48101-3B671	Leaf, Front Spring, No.1
48111	48101-3B680	Leaf, Front Spring, No.1
48111	48101-3B681	Leaf, Front Spring, No.1
48112	48112-3B670	Leaf, Front Spring, No.2
48112	48112-3B671	Leaf, Front Spring, No.2
48112	48112-3B680	Leaf, Front Spring, No.2
48112	48112-3B681	Leaf, Front Spring, No.2
48113	48102-3B670	Leaf, Front Spring, No.3
48113	48102-3B671	Leaf, Front Spring, No.3
48113	48102-3B680	Leaf, Front Spring, No.3
48113	48102-3B681	Leaf, Front Spring, No.3
48120	48110-3B680	Spring Assy, Front, Lh
48120	48110-3B682	Spring Assy, Front, Lh
48120	48110-3B681	Spring Assy, Front, Lh
48147	48147-3B670	Bolt, Front Spring, Center
48253	48253-3B440	Spacer, Front Leaf Spring, No.1
48253	48152-37J42	Spacer, Front Leaf Spring, No.1
48253	48253-3B730	Spacer, Rear Spring, No.1
48253	48254-3B730	Spacer, Front Leaf Spring, No.1
9411051000	94110-51000	Nut(For Steering Center Arm)

OEM	Part name	Category
48101-3B670	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48101-3B671	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48101-3B680	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48101-3B681	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48102-3B670	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48102-3B671	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48102-3B680	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48102-3B681	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48110-3B670	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48110-3B671	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48110-3B672	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48110-3B680	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48110-3B681	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48110-3B682	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48112-3B670	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48112-3B671	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48112-3B680	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48112-3B681	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48147-3B670	Bolt, Front Spring, Center	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48152-37J42	Spacer, Front Leaf Spring, No.1	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48253-3B440	Spacer, Front Leaf Spring, No.1	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48253-3B730	Spacer, Rear Spring, No.1	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48254-3B730	Spacer, Front Leaf Spring, No.1	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
48299-36010	Bimetal Formed Bush(For Front Spring)	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
90385-23002	Bush(For Front Spring Pin)	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
94110-51000	Nut(For Steering Center Arm)	Front Spring & Shock Absorber ([10.1989 - ] 3-LEAF (8910- )BU60,61,66..T4..IV3 ; (8910- )BU72 ,73,74..DM3,DM4,T3 ; (9210- )BU6 0,61,66..T2,T3..5 F..WT..20T..IV3)
