BU72

Toyota DYNA-TOYOACE · 1989 · 4,435 parts · 215 categories

4,435 items

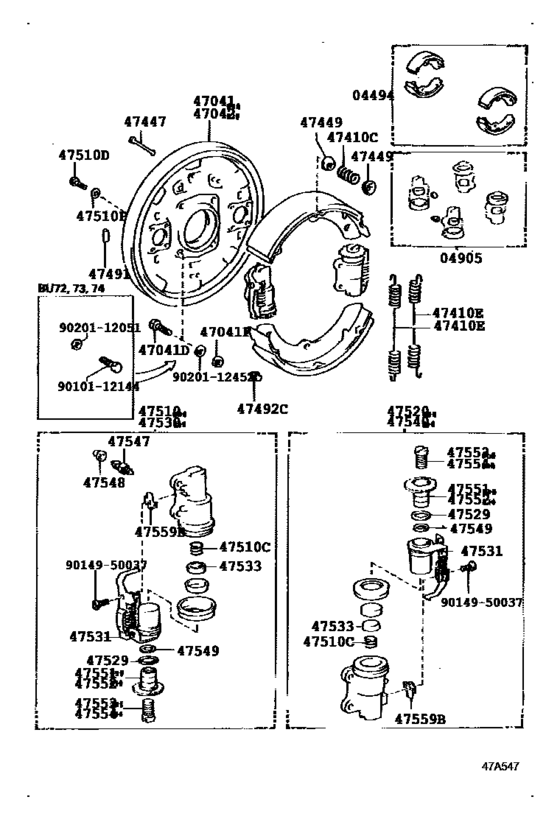

Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94) 36

#	OEM	Part name
4494	04494-36141	Shoe Kit, Front Brake
4905	04905-36080	Cup Kit, Front Wheel Cylinder
4905	04905-36140	Cup Kit, Front Wheel Cylinder
47041	47041-36160	Plate Sub-Assy, Brake Backing, Front Rh
47041	47041-36161	Plate Sub-Assy, Brake Backing, Front Rh
47041	47492-28010	Plug, Shoe Inspection(For Rear Brake)
47042	47042-36160	Plate Sub-Assy, Brake Backing, Front Lh
47042	47042-36161	Plate Sub-Assy, Brake Backing, Front Lh
47410	90501-20012	Spring(For Front Brake Shoe Hold Down)
47410	90507-29006	Spring, Tension(For Front Brake Shoe Return)
47447	47447-36030	Pin, Shoe Hold Down Spring(For Front Brake)
47449	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47491	47491-36010	Plug, Hole(For Front Brake)
47491	47491-36020	Plug, Hole(For Rear Brake)
47510	47510-36100	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	47510-36101	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	90501-08122	Spring, Compression(For Front Wheel Brake Cylinder)
47510	90101-10127	Bolt(For Front Wheel Cylinder)
47510	90201-10287	Washer(For Front Wheel Cylinder)
47520	47520-36100	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47520	47520-36101	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47530	47530-36100	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530	47530-36101	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47533	47533-30011	Seat, Wheel Cylinder Piston Spring(For Front Brake)
47540	47540-36100	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47540	47540-36101	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47547	47547-12010	Plug, Bleeder(For Release Cylinder)
47548	31478-30010	Bleeder Plug Cap
47551	47551-36130	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47552	47552-36130	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47553	47553-36060	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47554	47554-36060	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
9010112144	90101-12144	Bolt, Hexagon(For Front Disc Brake Caliper)
9014950037	90149-50037	SCREW
9020112051	90201-12051	WASHER
9020112452	90201-12452	Nut(For Backing Plate To Steering Knuckle Setting)

OEM	Part name	Category
04494-36141	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
04905-36080	Cup Kit, Front Wheel Cylinder	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
04905-36140	Cup Kit, Front Wheel Cylinder	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
31478-30010	Bleeder Plug Cap	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47041-36160	Plate Sub-Assy, Brake Backing, Front Rh	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47041-36161	Plate Sub-Assy, Brake Backing, Front Rh	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47042-36160	Plate Sub-Assy, Brake Backing, Front Lh	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47042-36161	Plate Sub-Assy, Brake Backing, Front Lh	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47447-36030	Pin, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47491-36010	Plug, Hole(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47491-36020	Plug, Hole(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47492-28010	Plug, Shoe Inspection(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47510-36100	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47510-36101	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47520-36100	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47520-36101	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47530-36100	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47530-36101	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47533-30011	Seat, Wheel Cylinder Piston Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47540-36100	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47540-36101	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47547-12010	Plug, Bleeder(For Release Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47551-36130	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47552-36130	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47553-36060	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
47554-36060	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
90101-10127	Bolt(For Front Wheel Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
90101-12144	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
90149-50037	SCREW	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
90201-10287	Washer(For Front Wheel Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
90201-12051	WASHER	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
90201-12452	Nut(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
90501-08122	Spring, Compression(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
90501-20012	Spring(For Front Brake Shoe Hold Down)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
90507-29006	Spring, Tension(For Front Brake Shoe Return)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - 03.1993] ｱﾘ(ｵｰﾄｱｼﾞｬｽﾀ) (8808-9303)BU73..03S ; (8808-9303)BU6#,72,74,78, 83,84,87,88,94)
