| 04473-36030 |
Cylinder Kit, Front Wheel |

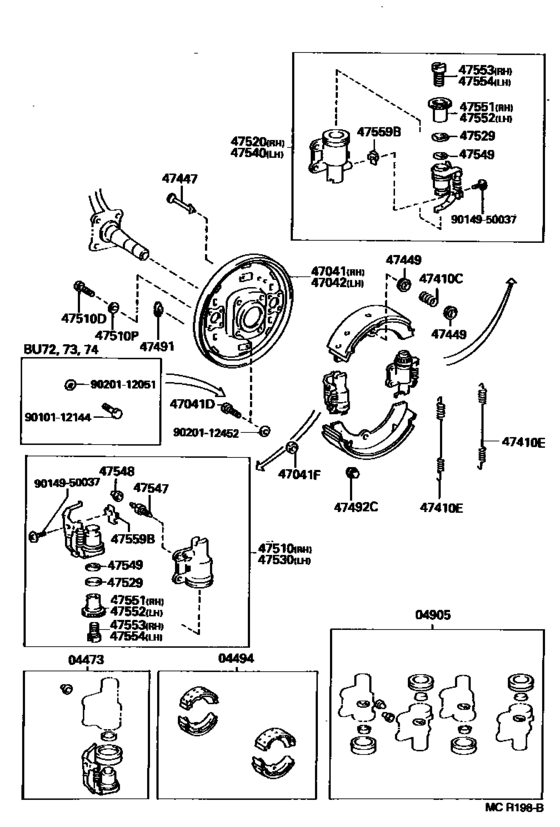

Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 04473-36040 |
Cylinder Kit, Front Wheel |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 04494-36141 |
Shoe Kit, Front Brake |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 04905-36080 |
Cup Kit, Front Wheel Cylinder |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 04905-36140 |
Cup Kit, Front Wheel Cylinder |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 31478-30010 |
Bleeder Plug Cap |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47041-36160 |
Plate Sub-Assy, Brake Backing, Front Rh |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47041-36161 |
Plate Sub-Assy, Brake Backing, Front Rh |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47042-36160 |
Plate Sub-Assy, Brake Backing, Front Lh |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47042-36161 |
Plate Sub-Assy, Brake Backing, Front Lh |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47447-36030 |
Pin, Shoe Hold Down Spring(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47449-30020 |
Cup, Shoe Hold Down Spring(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47491-36010 |
Plug, Hole(For Front Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47491-36020 |
Plug, Hole(For Rear Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47492-28010 |
Plug, Shoe Inspection(For Rear Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47510-36100 |
Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47510-36101 |
Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47520-36100 |
Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47520-36101 |
Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47530-36100 |
Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47530-36101 |
Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47540-36100 |
Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47540-36101 |
Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47547-12010 |
Plug, Bleeder(For Release Cylinder) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47551-36130 |
Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47552-36130 |
Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47553-36060 |
Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 47554-36060 |
Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 90101-10127 |
Bolt(For Front Wheel Cylinder) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 90101-12144 |
Bolt, Hexagon(For Front Disc Brake Caliper) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 90149-50037 |
SCREW |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 90201-10287 |
Washer(For Front Wheel Cylinder) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 90201-12051 |
WASHER |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 90201-12452 |
Nut(For Backing Plate To Steering Knuckle Setting) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 90501-20012 |
Spring(For Front Brake Shoe Hold Down) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
| 90507-29006 |
Spring, Tension(For Front Brake Shoe Return) |
Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU6#,7#,8#,94) |
