Search › Model › BU68

BU68

Toyota DYNA-TOYOACE · 1989 · 3,542 parts · 191 categories

3,542 items

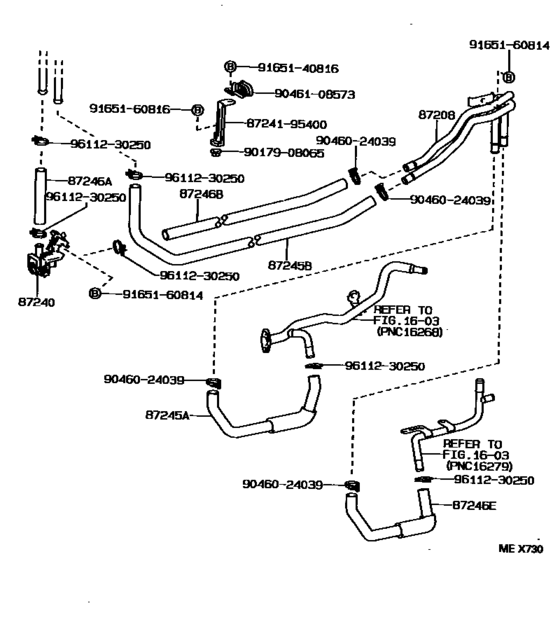

Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG) 20

#	OEM	Part name
87208	87208-37010	Pipe Sub-Assy, Heater Water
87240	87240-95409	Valve Assy, Heater Water
87245	87245-37050	Hose, Heater Water, Inlet A
87245	99556-31000	Hose, Heater Water, Inlet B
87246	99556-30135	Hose, Heater Water, Inlet E
87246	99556-30200	Hose, Heater Water, Inlet D
87246	99556-30680	Hose, Heater Water, Inlet B
87246	87245-37040	Hose, Heater Water, Outlet E
8724195400	87241-95400	Controller, Water Valve
9017908065	90179-08065	New Genuine Part
9046024039	90460-24039	Clamp Or Clip, Hose(For Oil Cooler Hose)
9046024039	90467-21010	Clip(For Ventilation Hose No.2)
9046108573	90461-08573	New Genuine Part
9165140816	91651-40816	BOLT
9165160814	91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814	91651-B0814	Bolt with washer
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9611230250	96112-30250	Clamp Or Clip, Hose(For Oil Cooler Hose)
9611230250	96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)

OEM	Part name	Category
87208-37010	Pipe Sub-Assy, Heater Water	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
87240-95409	Valve Assy, Heater Water	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
87241-95400	Controller, Water Valve	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
87245-37040	Hose, Heater Water, Outlet E	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
87245-37050	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
90080-11396	Bolt	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
90179-08065	New Genuine Part	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
90460-24039	Clamp Or Clip, Hose(For Oil Cooler Hose)	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
90461-08573	New Genuine Part	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
90467-21010	Clip(For Ventilation Hose No.2)	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
91651-40816	BOLT	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
91651-60816	BOLT	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
91651-B0814	Bolt with washer	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
96112-10250	Clamp Or Clip, Hose(For Oil Cooler Hose)	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
96112-30250	Clamp Or Clip, Hose(For Oil Cooler Hose)	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
99556-30135	Hose, Heater Water, Inlet E	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
99556-30200	Hose, Heater Water, Inlet D	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
99556-30680	Hose, Heater Water, Inlet B	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
99556-31000	Hose, Heater Water, Inlet B	Heating & Air Conditioning - Water Piping ([11.1993 - ] (9311- )LPG)
