BU67

Toyota DYNA-TOYOACE · 1988 · 4,623 parts · 231 categories
BU67 ×

← Back to categories

4,623 items

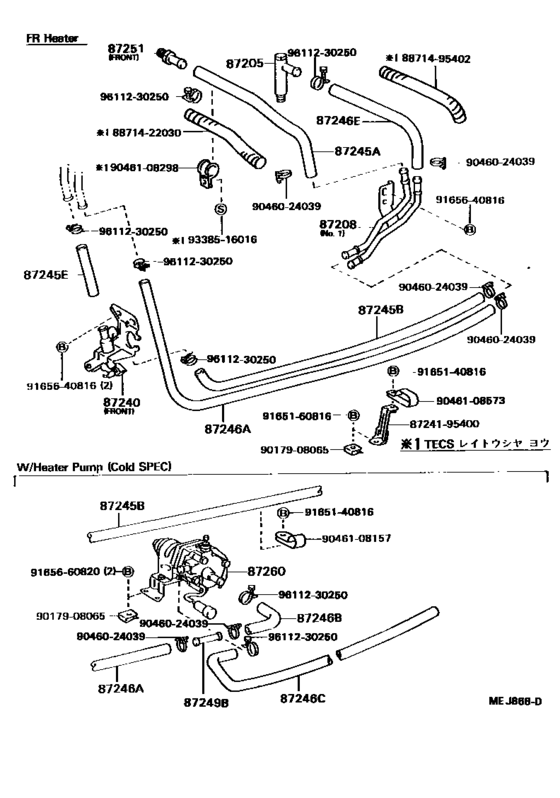

Heating & Air Conditioning - Water Piping ([08.1988 - ] (8808- )BU6#,70,83,84,87..DSL) 36
#OEMPart name
87205 87251-95400 Joint Or Union, Front Heater Hose Through Or Inlet Valve
87208 87208-95409 Pipe Sub-Assy, Heater Water
87240 87240-95409 Valve Assy, Heater Water
87245 99556-30300 Hose, Heater Water, Inlet A
87245 99556-30680 Hose, Heater Water, Inlet B
87245 99556-31000 Hose, Heater Water, Inlet B
87245 99556-30135 Hose, Heater Water, Inlet E
87245 99556-30200 Hose, Heater Water, Inlet D
87246 99556-30500 Hose, Heater Water, Inlet A
87246 99556-30980 Hose, Heater Water, Inlet A
87246 87245-95454 Hose, Heater Water, Outlet B
87246 87245-95471 Hose, Heater Water, Outlet C
87249 87248-14090 Pipe, Heater Water Inlet, A
87251 87251-20160 Joint Or Union, Water Hose Through
87251 87251-30200 Union(For Water By-Pass Hose)
87260 87260-95402 Pump Assy, Heater
8724195400 87241-95400 Controller, Water Valve
8871422030 88714-22030 Insulator, Cooler Refrigerant Hose, No.1
8871422030 88714-12050 Insulator, Cooler Refrigerant Hose, No.1
8871495402 88714-95402 Insulator, Cooler Refrigerant Hose, No.1
9017908065 90179-08065 New Genuine Part
9046024039 90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose)
9046024039 90467-21010 Clip(For Ventilation Hose No.2)
9046108157 90461-08157 New Genuine Part
9046108298 90461-08298 New Genuine Part
9046108573 90461-08573 New Genuine Part
9165140816 91651-40816 BOLT
9165160816 91651-60816 BOLT
9165540816 91655-40816 New Genuine Part
9165540816 91651-B0814 Bolt with washer
9165640816 91656-40816 New Genuine Part
9165640816 90119-A0109 New Genuine Part
9165660820 91656-60820 New Genuine Part
9338516016 93385-16016 New Genuine Part
9611230250 96112-30250 Clamp Or Clip, Hose(For Oil Cooler Hose)
9611230250 96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose)
