BU63

Toyota DYNA-TOYOACE · 1984 · 3,881 parts · 182 categories
BU63 ×

← Back to categories

3,881 items

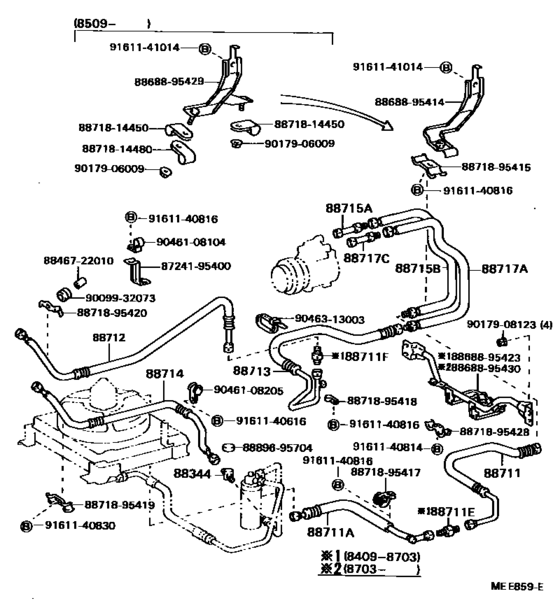

Heating & Air Conditioning - Cooler Piping ([09.1984 - ] (8409- )BU6#,80,81,82..RHD) 48
#OEMPart name
88344 88407-95701 Glass Sub-Assy, Sight
88711 88711-95406 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-95409 Hose, Cooler Refrigerant Discharge, No.2
88711 88711-95421 Hose, Cooler Refrigerant Discharge, No.2
88711 90404-19009 Union, No.1(For Cooler Hose)
88711 90404-22005 Union, No.1(For Cooler Hose)
88712 88712-95410 Hose, Cooler Refrigerant Suction, No.1
88712 88712-37270 Hose, Cooler Refrigerant Suction, No.1
88713 88712-95408 Hose, Cooler Refrigerant Suction, No.2
88714 88721-95407 Hose, Cooler Refrigerant Liquid, No.1
88714 88721-36H01 Hose, Cooler Refrigerant Liquid, No.1
88715 88715-95403 Pipe, Cooler Refrigerant Discharge, A
88715 88715-95404 Pipe, Cooler Refrigerant Discharge, B
88715 88715-95406 Pipe, Cooler Refrigerant Discharge, B
88717 88717-95402 Pipe, Cooler Refrigerant Suction, A
88717 88717-95401 Pipe, Cooler Refrigerant Suction, B
8724195400 87241-95400 Controller, Water Valve
8846722010 88467-22010 Insulator, Cooler Condenser Mounting
8868895414 88688-95414 Bracket, Cooler Diaphragm
8868895423 88688-95423 Bracket, Cooler Condenser, No.3
8868895429 88688-95429 Bracket, Cooler Diaphragm
8868895430 88688-95430 Bracket, Cooler Refrigerant Pipe
8871814450 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
8871814480 88718-14480 Clamp(For Cooler Refrigerant Pipe), No.5
8871895415 88718-95415 Pipe, Cooler Refrigerant Suction, No.2
8871895417 88718-95417 Pipe, Cooler Refrigerant Suction, No.2
8871895418 88718-95418 Pipe, Cooler Refrigerant Suction, No.2
8871895419 88718-95419 Pipe, Cooler Refrigerant Suction, No.2
8871895420 88718-95420 Pipe, Cooler Refrigerant Suction, No.2
8871895428 88718-95428 Pipe, Cooler Refrigerant Suction, No.2
8889695704 88896-95704 Cover Assy, Cooler Unit
9009932073 90099-32073 Grommet
9017906009 90179-06009 Nut (For Transmission Control Cable)
9017906009 90179-06156 Nut (For Transmission Control Cable)
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9046108104 90461-08104 New Genuine Part
9046108205 90461-08205 New Genuine Part
9046313003 90463-13003 Clamp, Hood Lock Control Wire
9161140616 91611-40616 Bolt, Hexagon(For Steering Column Bracket)
9161140616 91611-B0616 Bolt(For Transaxle Case Receiver)
9161140814 91611-40814 Bolt(For Manual Transmission Oil Pan Setting)
9161140814 91611-60814 Bolt
9161140816 91611-40816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816 91611-B0816 Bolt
9161140830 91611-40830 Bolt(For Clutch Release Cylinder Setting)
9161140830 91611-60830 Bolt(For Clutch Release Cylinder Setting)
9161141014 91611-41014 New Genuine Part
9161141014 91612-B1014 BOLT WWASHER
