Search › Model › BU63

BU63

Toyota DYNA-TOYOACE · 1984 · 3,881 parts · 182 categories

3,881 items

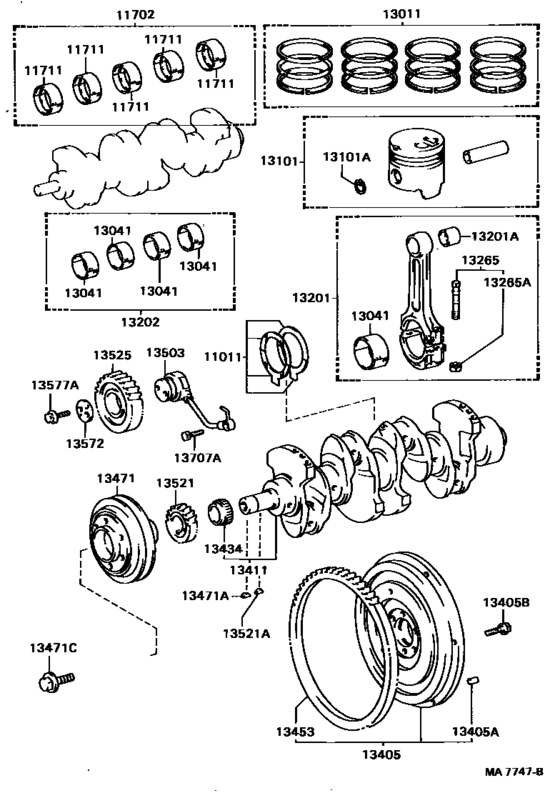

Crankshaft & Piston ([09.1984 - ] (8409- )B) 57

#	OEM	Part name
11011	11011-56010	Washer Set, Crankshaft Thrust
11011	11011-58020	Washer Set, Crankshaft Thrust
11011	11011-56020	Washer Set, Crankshaft Thrust
11011	11012-56010	Washer Set, Crankshaft Thrust
11011	11012-58020	Washer Set, Crankshaft Thrust
11011	11012-56020	Washer Set, Crankshaft Thrust
11011	11013-56010	Washer Set, Crankshaft Thrust
11011	11013-58020	Washer Set, Crankshaft Thrust
11011	11013-56020	Washer Set, Crankshaft Thrust
11702	11704-56020	Bearing Set, Crankshaft
11702	11705-56020	Bearing Set, Crankshaft
11702	11707-56020	Bearing Set, Crankshaft
11711	11701-56010-01	Bearing, Crankshaft
11711	11701-56010-02	Bearing, Crankshaft
13011	13011-56021	Ring Set, Piston
13011	13011-56022	Ring Set, Piston
13041	13041-56010-01	Bearing, Connecting Rod
13041	13041-56010-02	Bearing, Connecting Rod
13101	13101-56031	Piston Sub-Assy, W/pin
13101	13101-56032	Piston Sub-Assy, W/pin
13101	13101-56032-02	Piston Sub-Assy, W/pin
13101	90521-31001	Ring, Hole Snap(For Piston Pin)
13201	13201-59045	Rod Sub-Assy, Connecting
13201	13201-59049	Rod Sub-Assy, Connecting
13201	90999-73065	Bush(For Connecting Rod Small End)
13201	90999-73131	Bush(For Connecting Rod Small End)
13202	13204-56011	Bearing Set, Connecting Rod
13202	13205-56011	Bearing Set, Connecting Rod
13202	13207-56011	Bearing Set, Connecting Rod
13265	13265-59015	Bolt, Connecting Rod
13265	90179-11006	Nut, Hexagon(For Connecting Rod Bolt)
13405	13405-56031	Flywheel Sub-Assy
13405	13405-56032	Flywheel Sub-Assy
13405	90250-10192	Pin, Straight(For Timing Gear Cover Set)
13405	90105-13004	Bolt, Flywheel Setting
13405	90913-01015	Bolt, Flywheel Setting
13411	13401-56020	Crankshaft
13411	13041-56031-01	Bearing, Connecting Rod
13411	90561-50001	New Genuine Part
13411	13041-56031-02	Bearing, Connecting Rod
13411	13401-56022	New Genuine Part
13434	13519-56010	Spline, Oil Pump Drive
13453	13453-56020	Gear, Flywheel Ring
13453	13453-56021	Gear, Flywheel Ring
13471	13470-56170	Pulley, Crankshaft
13471	90901-19032	Bolt(For Crankshaft Pulley Set)
13471	13470-56171	Pulley Assy, Crankshaft
13471	95161-10416	Key, Crankshaft(For Crankshaft Pulley Set)
13471	90105-16003	Bolt(For Crankshaft Pulley Set)
13503	13504-56030	Shaft Sub-Assy, Idle Gear
13521	13521-56030	Gear Or Sprocket, Crankshaft Timing
13521	95161-10519	Key(For Oil Pump Drive Spline)
13525	13508-56010	Gear, Idle, No.1
13572	13572-56020	Plate, Idle Gear Thrust
13577	90105-10194	Bolt, Hexagon(For Idle Gear Bolt Lock)
13577	90119-10208	Bolt, Hexagon(For Idle Gear Bolt Lock)
13707	90044-01010	Union(For Oil Pipe, No.1)

OEM	Part name	Category
11011-56010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1984 - ] (8409- )B)
11011-56020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1984 - ] (8409- )B)
11011-58020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1984 - ] (8409- )B)
11012-56010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1984 - ] (8409- )B)
11012-56020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1984 - ] (8409- )B)
11012-58020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1984 - ] (8409- )B)
11013-56010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1984 - ] (8409- )B)
11013-56020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1984 - ] (8409- )B)
11013-58020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([09.1984 - ] (8409- )B)
11701-56010-01	Bearing, Crankshaft	Crankshaft & Piston ([09.1984 - ] (8409- )B)
11701-56010-02	Bearing, Crankshaft	Crankshaft & Piston ([09.1984 - ] (8409- )B)
11704-56020	Bearing Set, Crankshaft	Crankshaft & Piston ([09.1984 - ] (8409- )B)
11705-56020	Bearing Set, Crankshaft	Crankshaft & Piston ([09.1984 - ] (8409- )B)
11707-56020	Bearing Set, Crankshaft	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13011-56021	Ring Set, Piston	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13011-56022	Ring Set, Piston	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13041-56010-01	Bearing, Connecting Rod	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13041-56010-02	Bearing, Connecting Rod	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13041-56031-01	Bearing, Connecting Rod	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13041-56031-02	Bearing, Connecting Rod	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13101-56031	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13101-56032	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13101-56032-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13201-59045	Rod Sub-Assy, Connecting	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13201-59049	Rod Sub-Assy, Connecting	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13204-56011	Bearing Set, Connecting Rod	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13205-56011	Bearing Set, Connecting Rod	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13207-56011	Bearing Set, Connecting Rod	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13265-59015	Bolt, Connecting Rod	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13401-56020	Crankshaft	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13401-56022	New Genuine Part	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13405-56031	Flywheel Sub-Assy	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13405-56032	Flywheel Sub-Assy	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13453-56020	Gear, Flywheel Ring	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13453-56021	Gear, Flywheel Ring	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13470-56170	Pulley, Crankshaft	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13470-56171	Pulley Assy, Crankshaft	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13504-56030	Shaft Sub-Assy, Idle Gear	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13508-56010	Gear, Idle, No.1	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13519-56010	Spline, Oil Pump Drive	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13521-56030	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([09.1984 - ] (8409- )B)
13572-56020	Plate, Idle Gear Thrust	Crankshaft & Piston ([09.1984 - ] (8409- )B)
90044-01010	Union(For Oil Pipe, No.1)	Crankshaft & Piston ([09.1984 - ] (8409- )B)
90105-10194	Bolt, Hexagon(For Idle Gear Bolt Lock)	Crankshaft & Piston ([09.1984 - ] (8409- )B)
90105-13004	Bolt, Flywheel Setting	Crankshaft & Piston ([09.1984 - ] (8409- )B)
90105-16003	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([09.1984 - ] (8409- )B)
90119-10208	Bolt, Hexagon(For Idle Gear Bolt Lock)	Crankshaft & Piston ([09.1984 - ] (8409- )B)
90179-11006	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([09.1984 - ] (8409- )B)
90250-10192	Pin, Straight(For Timing Gear Cover Set)	Crankshaft & Piston ([09.1984 - ] (8409- )B)
90521-31001	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([09.1984 - ] (8409- )B)
90561-50001	New Genuine Part	Crankshaft & Piston ([09.1984 - ] (8409- )B)
90901-19032	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([09.1984 - ] (8409- )B)
90913-01015	Bolt, Flywheel Setting	Crankshaft & Piston ([09.1984 - ] (8409- )B)
90999-73065	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([09.1984 - ] (8409- )B)
90999-73131	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([09.1984 - ] (8409- )B)
95161-10416	Key, Crankshaft(For Crankshaft Pulley Set)	Crankshaft & Piston ([09.1984 - ] (8409- )B)
95161-10519	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([09.1984 - ] (8409- )B)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 182
Collected: 2026-08-03
