BU62

Toyota DYNA-TOYOACE · 1984 · 4,553 parts · 199 categories

4,553 items

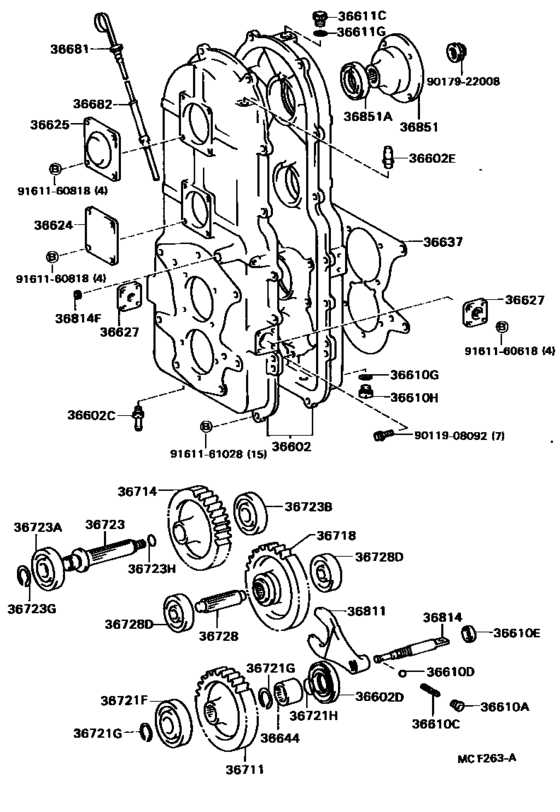

Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4) 47

#	OEM	Part name
36602	36602-36010	Case Sub-Assy, Center Power Take-Off
36602	90404-51257	Union (For Center Power Take-Off Case)
36602	90316-48002	Seal, Oil (For Transfer Case)
36602	90930-03090	Plug, Breather(For Manual Transmission)
36610	90341-12008	Plug, W/head Straight Screw(For Transfer Adapter)
36610	90501-14037	Spring, Gear Shift Fork Lock Ball (For Power Take-Off)
36610	90360-10003	Ball(For Transmission Oil Pump Cover)
36610	90313-22001	Seal, Oil (For Power Take-Off)
36610	90430-18008	Gasket
36610	90430-T0021	Gasket(For Manual Transmission Filler Plug)
36610	90341-18057	Drain Plug (with Magnet)
36611	90341-18006	Plug (No magnet)
36624	36624-36020	Cap, Power Take-Off Bearing
36625	36625-36010	Cover, Power Take-Off Bearing
36627	36627-36010	Cover, Center Powr Take-Off Water Inlet
36637	36637-36010	Gasket, Power Take-Off
36644	36644-36010	Spacer, Power Take-Off Input Shaft
36681	36681-36010	Gage, Power Take-Off Oil Level
36682	36682-36010	Tube, Power Take-Off Oil Level Gage
36711	36711-36020	Gear, Power Take-Off Input
36714	36714-36020	Gear, Power Take-Off Output
36718	36718-36020	Gear, Power Take-Off Idler
36721	90363-32017	Bearing (For Input Shaft Front)
36721	90520-30214	Ring, Shaft Snap (For Front Bearing)
36721	90520-30216	Ring, Shaft Snap (For Front Bearing)
36721	90520-30218	Ring, Shaft Snap (For Front Bearing)
36721	90520-33107	Ring, Shaft Snap (For Front Bearing)
36721	90520-33108	Ring, Shaft Snap (For Front Bearing)
36721	90520-33109	Ring, Shaft Snap (For Front Bearing)
36721	96711-31035	Ring, O (For Power Take-Off Input Shaft)
36723	36723-36020	Shaft, Power Take-Off Output, No.1
36723	97103-06207	Bearing (For Output Shaft Rear)
36723	96711-35030	Ring, O, Distributor Housing
36728	36728-36020	Shaft, Power Take-Off Idler
36728	90363-25020	Bearing (For Output Shaft Rear)
36811	36811-36020	Fork, Powr Take-Off Shift, No.1
36814	36814-36020	Shaft, Powr Take-Off Fork, No.1
36814	96411-41800	Plug, Tight, No.1
36851	36851-36020	Retainer, Power Take-Off Joint
36851	90311-45002	Seal, Oil(For Timing Chain Or Belt Cover)
9011908092	90119-08092	Bolt(For Front Bearing Retainer Setting)
9017922008	90179-22008	Nut (For Manual Transmission Output Shaft Rear Set)
9161160618	91611-60618	Bolt(For Oil Receiver Pipe)
9161160818	91611-60818	Bolt(For Oil Receiver Pipe)
9161160818	90119-08830	Bolt(For Oil Receiver Pipe)
9161161028	91611-61028	Bolt(For Transaxle Case & Engine Setting)
9161161028	91612-61028	Bolt(For Transaxle Case & Engine Setting)

OEM	Part name	Category
36602-36010	Case Sub-Assy, Center Power Take-Off	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36624-36020	Cap, Power Take-Off Bearing	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36625-36010	Cover, Power Take-Off Bearing	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36627-36010	Cover, Center Powr Take-Off Water Inlet	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36637-36010	Gasket, Power Take-Off	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36644-36010	Spacer, Power Take-Off Input Shaft	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36681-36010	Gage, Power Take-Off Oil Level	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36682-36010	Tube, Power Take-Off Oil Level Gage	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36711-36020	Gear, Power Take-Off Input	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36714-36020	Gear, Power Take-Off Output	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36718-36020	Gear, Power Take-Off Idler	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36723-36020	Shaft, Power Take-Off Output, No.1	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36728-36020	Shaft, Power Take-Off Idler	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36811-36020	Fork, Powr Take-Off Shift, No.1	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36814-36020	Shaft, Powr Take-Off Fork, No.1	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
36851-36020	Retainer, Power Take-Off Joint	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90119-08092	Bolt(For Front Bearing Retainer Setting)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90119-08830	Bolt(For Oil Receiver Pipe)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90179-22008	Nut (For Manual Transmission Output Shaft Rear Set)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90311-45002	Seal, Oil(For Timing Chain Or Belt Cover)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90313-22001	Seal, Oil (For Power Take-Off)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90316-48002	Seal, Oil (For Transfer Case)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90341-12008	Plug, W/head Straight Screw(For Transfer Adapter)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90341-18006	Plug (No magnet)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90341-18057	Drain Plug (with Magnet)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90360-10003	Ball(For Transmission Oil Pump Cover)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90363-25020	Bearing (For Output Shaft Rear)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90363-32017	Bearing (For Input Shaft Front)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90404-51257	Union (For Center Power Take-Off Case)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90430-18008	Gasket	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90501-14037	Spring, Gear Shift Fork Lock Ball (For Power Take-Off)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90520-30214	Ring, Shaft Snap (For Front Bearing)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90520-30216	Ring, Shaft Snap (For Front Bearing)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90520-30218	Ring, Shaft Snap (For Front Bearing)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90520-33107	Ring, Shaft Snap (For Front Bearing)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90520-33108	Ring, Shaft Snap (For Front Bearing)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90520-33109	Ring, Shaft Snap (For Front Bearing)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
90930-03090	Plug, Breather(For Manual Transmission)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
91611-60618	Bolt(For Oil Receiver Pipe)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
91611-60818	Bolt(For Oil Receiver Pipe)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
91611-61028	Bolt(For Transaxle Case & Engine Setting)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
91612-61028	Bolt(For Transaxle Case & Engine Setting)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
96411-41800	Plug, Tight, No.1	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
96711-31035	Ring, O (For Power Take-Off Input Shaft)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
96711-35030	Ring, O, Distributor Housing	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
97103-06207	Bearing (For Output Shaft Rear)	Power Take-Off Case & Gear ([08.1987 - ] (8708- )IV4)
