Search › Model › BU62

BU62

Toyota DYNA-TOYOACE · 1984 · 4,553 parts · 199 categories

4,553 items

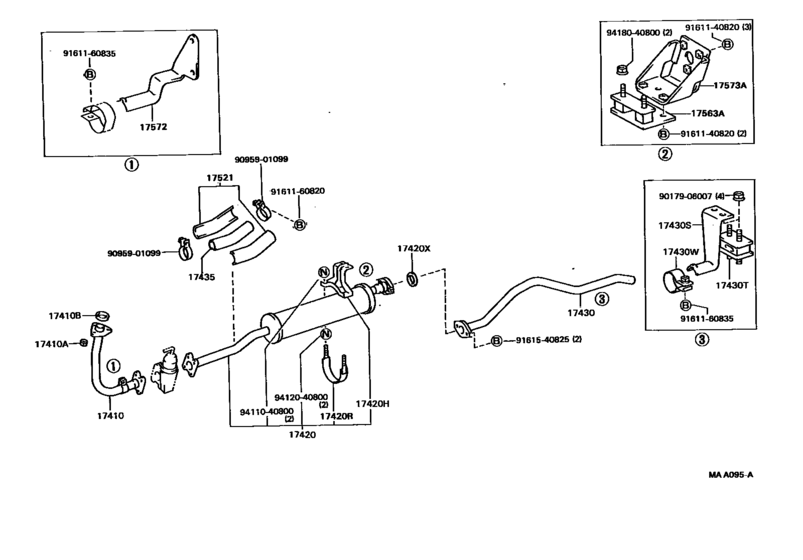

Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4) 32

#	OEM	Part name
17410	17410-58060	Pipe Assy, Exhaust, Front
17410	17410-58050	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06012	Gasket, Exhaust Pipe
17410	90917-06045	Gasket, Exhaust Pipe
17420	17420-58220	Pipe Assy, Exhaust, Center
17420	17576-56020	Clamp No.1, Exhaust Pipe Center, Center
17420	17504-56010	Clamp No.2, Exhaust Pipe Center, Center
17420	90917-06008	Gasket, Exhaust Pipe
17430	17430-58110	Pipe Assy, Exhaust, Tail
17430	17561-56010	Bracket, Exhaust Pipe Front (For Rear)
17430	17567-61030	Cushion, Exhaust Pipe Front (For Rear)
17430	90461-32005	Clamp No.1, Exhaust Tail Pipe (For Rear)
17435	17435-36010	Insulator, Exhaust Pipe Heat
17521	17521-36011	Protector, Exhaust Pipe, Front No.1
17563	17563-58010	Cushion, Exhaust Pipe Center, Center
17563	17563-58041	Cushion, Exhaust Pipe Center, Center - EXHAUST PIPE, NO.3
17572	17571-36041	Bracket, Exhaust Pipe No.1 Support
17573	17573-58040	Bracket, Exhaust Pipe, Center
9017906007	90179-06007	Nut
9095901099	90959-01099	Clamp
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9161540825	91615-40825	Bolt(for Intake Manifold To Exhaust Manifold)
9161540825	91611-60822	Bolt
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9418040800	94180-40800	NUT

OEM	Part name	Category
17410-58050	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
17410-58060	Pipe Assy, Exhaust, Front	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
17420-58220	Pipe Assy, Exhaust, Center	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
17430-58110	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
17435-36010	Insulator, Exhaust Pipe Heat	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
17504-56010	Clamp No.2, Exhaust Pipe Center, Center	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
17521-36011	Protector, Exhaust Pipe, Front No.1	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
17561-56010	Bracket, Exhaust Pipe Front (For Rear)	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
17563-58010	Cushion, Exhaust Pipe Center, Center	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
17563-58041	Cushion, Exhaust Pipe Center, Center - EXHAUST PIPE, NO.3	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
17567-61030	Cushion, Exhaust Pipe Front (For Rear)	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
17571-36041	Bracket, Exhaust Pipe No.1 Support	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
17573-58040	Bracket, Exhaust Pipe, Center	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
17576-56020	Clamp No.1, Exhaust Pipe Center, Center	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
90179-06007	Nut	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
90461-32005	Clamp No.1, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
90917-06008	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
90917-06012	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
90917-06045	Gasket, Exhaust Pipe	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
90959-01099	Clamp	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
91611-60820	Bolt(For Transaxle & Engine Setting)	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
91611-60822	Bolt	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
91611-G0820	Bolt	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
91615-40825	Bolt(for Intake Manifold To Exhaust Manifold)	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
94110-40800	Nut(For Steering Damper)	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
94120-40800	Nut(For Clutch Pedal Stopper)	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
94130-00802	Nut, No.1 (For Center Support Bearing)	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
94180-40800	NUT	Exhaust Pipe ([08.1987 - ] (8708- )13B..BU62..IV4)
