Search › Model › BU62

BU62

Toyota DYNA-TOYOACE · 1984 · 4,553 parts · 199 categories

4,553 items

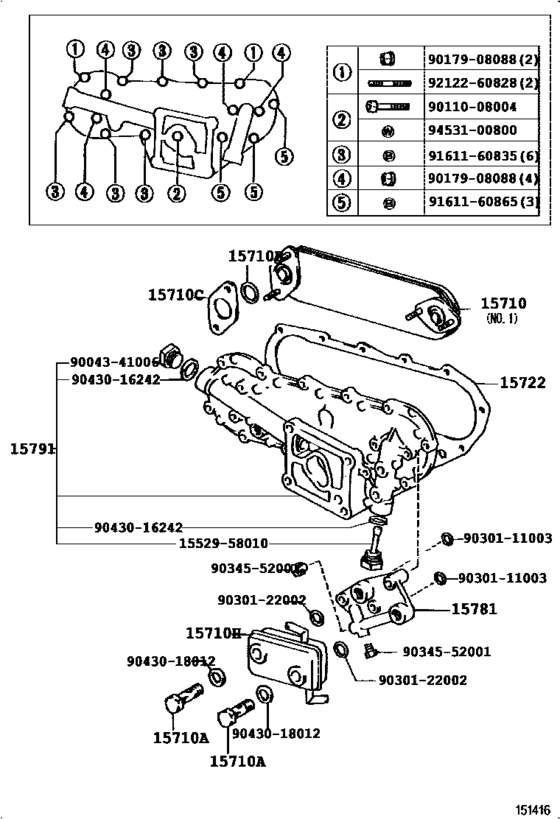

Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4) 26

#	OEM	Part name
15710	15710-56051	Cooler Assy, Oil
15710	90401-18009	Bolt, Union(For Oil Cooler)
15710	90401-18011	Bolt, Union(For Oil Cooler)
15710	90301-20001	Ring, O(For Oil Cooler)
15710	90923-05014	Gasket(For Oil Cooler)
15710	90923-05018	Gasket(For Oil Cooler)
15710	15710-64010	Cooler Assy, Oil
15722	15725-56011	Gasket, Oil Cooler
15722	15725-56020	Gasket, Oil Cooler
15781	15781-58010	Bracket, Oil Cooler, No.1
15791	15701-58021	Case, Oil Cooler
1552958010	15529-58010	Plug(For Centrifugal Oil Filter)
9004341006	90043-41006	Plug(For Transmission Case)
9004341006	90341-16012	Plug(For Transmission Case)
9011008004	90110-08004	New Genuine Part
9017908088	90179-08088	NUT
9017908088	94185-60800	NUT
9030111003	90301-11003	Ring, O
9030122002	90301-22002	Ring, O(For Oil Cooler)
9034552001	90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)
9043016242	90430-16242	Gasket, W/head Straight Screw Plug
9043018012	90430-18012	Gasket(For Oil Pump Outlet Pipe)
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9161160865	91611-60865	Bolt(For Rocker Support Set)
9212260828	92122-60828	New Genuine Part
9453100800	94531-00800	Washer (For Transfer Shift Outer Lever)

OEM	Part name	Category
15529-58010	Plug(For Centrifugal Oil Filter)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
15701-58021	Case, Oil Cooler	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
15710-56051	Cooler Assy, Oil	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
15710-64010	Cooler Assy, Oil	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
15725-56011	Gasket, Oil Cooler	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
15725-56020	Gasket, Oil Cooler	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
15781-58010	Bracket, Oil Cooler, No.1	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90043-41006	Plug(For Transmission Case)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90110-08004	New Genuine Part	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90179-08088	NUT	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90301-11003	Ring, O	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90301-20001	Ring, O(For Oil Cooler)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90301-22002	Ring, O(For Oil Cooler)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90341-16012	Plug(For Transmission Case)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90401-18009	Bolt, Union(For Oil Cooler)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90401-18011	Bolt, Union(For Oil Cooler)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90430-16242	Gasket, W/head Straight Screw Plug	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90430-18012	Gasket(For Oil Pump Outlet Pipe)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90923-05014	Gasket(For Oil Cooler)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
90923-05018	Gasket(For Oil Cooler)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
91611-60865	Bolt(For Rocker Support Set)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
92122-60828	New Genuine Part	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
94185-60800	NUT	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
94531-00800	Washer (For Transfer Shift Outer Lever)	Engine Oil Cooler ([08.1987 - ] (8708- )13B..BU62..IV4)
