BU61

Toyota DYNA-TOYOACE · 1985 · 4,797 parts · 223 categories

← Back to categories

4,797 items

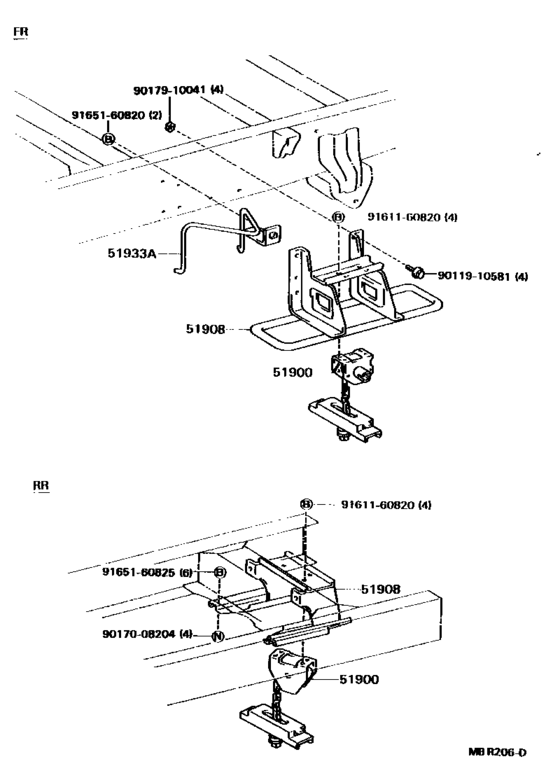

Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4) 14

#	OEM	Part name
51900	51900-36101	Carrier Assy, Spare Wheel
51900	51900-36102	Carrier Assy, Spare Wheel
51908	51908-36040	Bracket Sub-Assy, Spare Wheel Carrier
51908	51908-36050	Bracket Sub-Assy, Spare Wheel Carrier
9011910581	90119-10581	Bolt, Fuel Tank
9011910581	91645-C1032	Bolt, Fuel Tank
9017008204	90170-08204	Nut (For Propeller Shaft)
9017910041	90179-10041	Nut(For Backing Plate To Rear Axle Housing Setting)
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9165160825	91651-60825	Bolt, Hexagon(For Steering Column Bracket)
9165160825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)

OEM	Part name	Category
51900-36101	Carrier Assy, Spare Wheel	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
51900-36102	Carrier Assy, Spare Wheel	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
51908-36040	Bracket Sub-Assy, Spare Wheel Carrier	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
51908-36050	Bracket Sub-Assy, Spare Wheel Carrier	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
90119-10581	Bolt, Fuel Tank	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
90170-08204	Nut (For Propeller Shaft)	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
90179-10041	Nut(For Backing Plate To Rear Axle Housing Setting)	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
91611-60820	Bolt(For Transaxle & Engine Setting)	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
91611-G0820	Bolt	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
91645-C1032	Bolt, Fuel Tank	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
91651-60820	Bolt, Radiator Side Support Plate	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
91651-60825	Bolt, Hexagon(For Steering Column Bracket)	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
91651-B0820	Bolt, Radiator Side Support Plate	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Spare Wheel Carrier ([08.1988 - ] (8808- )BU66..T4..4FC ; (8808- )BU66..DM2, T2,TW4 ; (8808- )BU60,61..T2,T4, TW2,TW4)
