Search › Model › BU61

BU61

Toyota DYNA-TOYOACE · 1985 · 4,797 parts · 223 categories
BU61 ×

← Back to categories

4,797 items

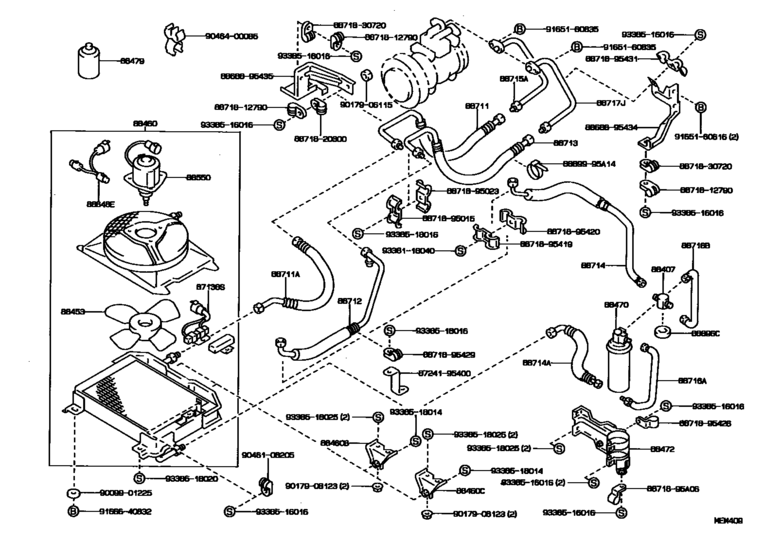

Heating & Air Conditioning - Cooler Piping ([08.1988 - 09.1993] (8808-9309)BU6#,70,72,73,74,83,84,87) 80
#OEMPart name
87138 87138-95411 Resistor, Blower
88407 88407-95701 Glass Sub-Assy, Sight
88453 88453-95A01 Fan, Cooling (For Condenser)
88460 88460-36080 Condenser Assy, Cooler
88460 88460-37090 Condenser Assy, Cooler
88460 88460-95404 Condenser Assy, Cooler
88460 88688-95416 Bracket, Cooler Condenser, No.1
88460 88688-95418 Bracket, Cooler Condenser, No.1
88460 88688-95417 Bracket, Cooler Condenser, No.2
88460 88688-95419 Bracket, Cooler Condenser, No.2
88470 88471-20050 Receiver & Dryer Assy, Cooler
88470 88471-34010 Receiver & Dryer Assy, Cooler
88470 88471-95400 Receiver & Dryer Assy, Cooler
88470 88471-16010 Receiver & Dryer Assy, Cooler
88472 88472-37010 Bracket, Receiver Tank, No.1
88472 88472-95408 Bracket, Receiver Tank, No.1
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88479 90986-02007 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88550 87104-95407 Motor Assy, Blower (For Condenser)
88648 88648-95419 Wiring, Cooler
88711 88711-36110 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-36230 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-37090 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-95415 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-37020 Hose, Cooler Refrigerant Discharge, No.2
88711 88711-95417 Hose, Cooler Refrigerant Discharge, No.2
88712 88712-36110 Hose, Cooler Refrigerant Suction, No.1
88712 88712-36250 Hose, Cooler Refrigerant Suction, No.1
88712 88712-37120 Hose, Cooler Refrigerant Suction, No.1
88712 88712-95420 Hose, Cooler Refrigerant Suction, No.1
88713 88712-37130 Hose, Cooler Refrigerant Suction, No.2
88713 88712-95421 Hose, Cooler Refrigerant Suction, No.2
88714 88721-37030 Hose, Cooler Refrigerant Liquid, No.1
88714 88721-95413 Hose, Cooler Refrigerant Liquid, No.1
88714 88721-36H00 Hose, Cooler Refrigerant Liquid, No.1
88714 88721-37010 Hose, Cooler Refrigerant Liquid, No.2
88714 88721-95405 Hose, Cooler Refrigerant Liquid, No.1
88715 88715-37020 Pipe, Cooler Refrigerant Discharge, A
88715 88715-95407 Pipe, Cooler Refrigerant Discharge, A
88716 88716-37030 Pipe, Cooler Refrigerant Liquid, A
88716 88716-95412 Pipe, Cooler Refrigerant Liquid, A
88716 88716-37020 Pipe, Cooler Refrigerant Liquid, B
88716 88716-95413 Pipe, Cooler Refrigerant Liquid, B
88717 88717-37020 Pipe, Cooler Refrigerant Suction, B
88717 88717-95404 Pipe, Cooler Refrigerant Suction, B
88896 88896-95705 Cover, Cooler Refrigerant Pipe, No.1
8871895 88718-95A06 Pipe, Cooler Refrigerant Suction, No.2
8889995 88899-95A14 Cover, Evaporator
8724195400 87241-95400 Controller, Water Valve
8868895434 88688-95434 Bracket, Cooler Diaphragm
8868895435 88688-95435 Bracket, Cooler Diaphragm
8871812790 88718-12790 Pipe, Cooler Refrigerant Suction, No.2
8871820300 88718-20300 Pipe, Cooler Refrigerant Suction, No.2
8871830720 88718-30720 Pipe, Cooler Refrigerant Suction, No.2
8871895015 88718-95015 Pipe, Cooler Refrigerant Suction, No.2
8871895023 88718-95023 Pipe, Cooler Refrigerant Suction, No.2
8871895419 88718-95419 Pipe, Cooler Refrigerant Suction, No.2
8871895420 88718-95420 Pipe, Cooler Refrigerant Suction, No.2
8871895426 88718-95426 Pipe, Cooler Refrigerant Suction, No.2
8871895429 88718-95429 Pipe, Cooler Refrigerant Suction, No.2
8871895431 88718-95431 Pipe, Cooler Refrigerant Suction, No.2
9009901225 90099-01225 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9046108205 90461-08205 New Genuine Part
9046400085 90464-00085 New Genuine Part
9165160616 91651-60616 BOLT
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9166640832 91666-40832 New Genuine Part
9166640832 91661-60830 Bolt
9338118040 93381-18040 New Genuine Part
9338516016 93385-16016 New Genuine Part
9338518014 93385-18014 New Genuine Part
9338518016 93385-18016 New Genuine Part
9338518020 93385-18020 New Genuine Part
9338518025 93385-18025 New Genuine Part
9338518025 90091-20817 New Genuine Part
