Search › Model › BU60

BU60

Toyota DYNA-TOYOACE · 1984 · 3,510 parts · 165 categories

3,510 items

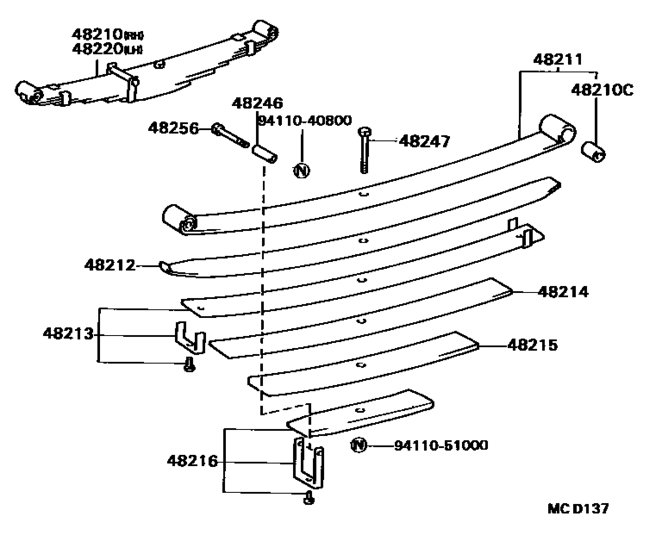

Rear Spring & Shock Absorber ([01.1986 - ] (8601- )) 21

#	OEM	Part name
48210	48210-3B122	Spring Assy, Rear Rh
48210	90389-16013	Bush(For Rear Spring Leaf)
48211	48201-36062	Leaf, Rear Spring, No.1
48211	48201-3B122	Leaf, Rear Spring, No.1
48212	48212-3B122	Leaf, Rear Spring, No.2
48212	48222-36062	Leaf, Rear Spring, No.2
48213	48202-3B122	Leaf, Rear Spring, No.3
48213	48203-36062	Leaf, Rear Spring, No.3
48214	48214-3B122	Leaf, Rear Spring, No.4
48214	48224-36062	Leaf, Rear Spring, No.4
48215	48215-3B122	Leaf, Rear Spring, No.5
48215	48225-36062	Leaf, Rear Spring, No.5
48216	48203-3B122	Leaf, Rear Spring, No.6
48216	48204-36062	Leaf, Rear Spring, No.6
48220	48220-36062	Spring Assy, Rear Lh
48246	48146-60070	Case(For Rear Spring Clip Bolt)
48247	48247-36500	Bolt, Rear Spring, Center
48256	48256-25050	Bolt, Hexagon(For Rear Spring Clip)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411051000	94110-51000	Nut(For Steering Center Arm)

OEM	Part name	Category
48146-60070	Case(For Rear Spring Clip Bolt)	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48201-36062	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48201-3B122	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48202-3B122	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48203-36062	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48203-3B122	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48204-36062	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48210-3B122	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48212-3B122	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48214-3B122	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48215-3B122	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48220-36062	Spring Assy, Rear Lh	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48222-36062	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48224-36062	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48225-36062	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48247-36500	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
48256-25050	Bolt, Hexagon(For Rear Spring Clip)	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
90389-16013	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
94110-40800	Nut(For Steering Damper)	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
94110-51000	Nut(For Steering Center Arm)	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Rear Spring & Shock Absorber ([01.1986 - ] (8601- ))
