BU60

Toyota DYNA-TOYOACE · 1984 · 3,510 parts · 165 categories

3,510 items

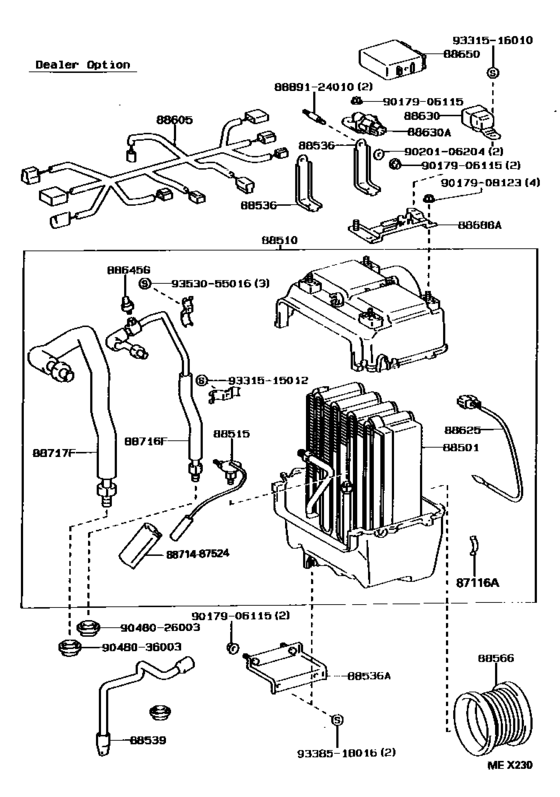

Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- )) 43

#	OEM	Part name
87116	87116-14010	Spring, Heater Case Fastening
88501	88501-37020	Evaporator Sub-Assy, Cooler, No.1
88501	88501-95403	Evaporator Sub-Assy, Cooler, No.1
88510	88510-37030	Unit Assy, Cooler
88510	88510-90F08	Unit Assy, Cooler
88510	88510-90F09	Unit Assy, Cooler
88515	88515-16030	Valve, Cooler Expansion
88515	88515-16031	Valve, Cooler Expansion
88515	88515-28090	Valve, Cooler Expansion
88536	88688-90F00	Bracket, Cooling Unit, No.1
88536	88688-90D06	Bracket, Cooling Unit, No.2
88536	88688-90D12	Bracket, Cooling Unit, No.2
88539	88539-90F00	Hose, Cooler Unit Drain, No.1
88566	88566-95407	Duct, Cooler Air, No.1
88605	88605-37030	Harness Sub-Assy, Cooler Wiring, No.1
88605	88605-90F07	Harness Sub-Assy, Cooler Wiring, No.1
88625	88625-90A00	Thermistor, Cooler, No.1
88625	88625-12070	Thermistor, Cooler, No.1
88625	88625-95A00	Thermistor, Cooler, No.1
88625	88625-28150	Thermistor, Cooler No.2
88630	88630-95400	Relay Assy, Cooler
88630	90987-02005	Relay, Ignition, No.1
88645	88645-10020	Switch, Pressure
88645	88645-17010	Switch, Pressure
88645	88645-20050	Switch, Pressure
88645	88645-37010	Switch, Pressure
88650	88650-90K01	Amplifier Assy, Cooler Stabilizer
88688	88688-90D14	Bracket, Cooling Unit, No.3
88716	88716-26500	Pipe, Cooler Refrigerant Liquid, F
88716	88716-90D18	Pipe, Cooler Refrigerant Liquid, F
88717	88717-26370	Pipe, Cooler Refrigerant Suction, F
88717	88717-90D14	Pipe, Cooler Refrigerant Suction, F
8871487524	88714-87524	Hose, Cooler Refrigerant Liquid, No.1
8889124010	88891-24010	Packing (for Cooler)
9017906115	90179-06115	Nut (For Rear Wiper Arm Setting)
9017908123	90179-08123	Nut (For Front Wiper Arm Setting)
9020106204	90201-06204	Washer, Plate(For Steering Tilt Lever)
9048026003	90480-26003	Grommet (For Cooler Unit)
9048036003	90480-36003	Grommet (For Cooler Unit)
9331515012	93315-15012	SCREWWWASHER
9331516010	93315-16010	New Genuine Part
9338518016	93385-18016	New Genuine Part
9353055016	93530-55016	New Genuine Part

OEM	Part name	Category
87116-14010	Spring, Heater Case Fastening	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88501-37020	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88501-95403	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88510-37030	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88510-90F08	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88510-90F09	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88515-16030	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88515-16031	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88515-28090	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88539-90F00	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88566-95407	Duct, Cooler Air, No.1	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88605-37030	Harness Sub-Assy, Cooler Wiring, No.1	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88605-90F07	Harness Sub-Assy, Cooler Wiring, No.1	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88625-12070	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88625-28150	Thermistor, Cooler No.2	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88625-90A00	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88625-95A00	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88630-95400	Relay Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88645-10020	Switch, Pressure	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88645-17010	Switch, Pressure	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88645-20050	Switch, Pressure	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88645-37010	Switch, Pressure	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88650-90K01	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88688-90D06	Bracket, Cooling Unit, No.2	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88688-90D12	Bracket, Cooling Unit, No.2	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88688-90D14	Bracket, Cooling Unit, No.3	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88688-90F00	Bracket, Cooling Unit, No.1	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88714-87524	Hose, Cooler Refrigerant Liquid, No.1	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88716-26500	Pipe, Cooler Refrigerant Liquid, F	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88716-90D18	Pipe, Cooler Refrigerant Liquid, F	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88717-26370	Pipe, Cooler Refrigerant Suction, F	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88717-90D14	Pipe, Cooler Refrigerant Suction, F	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
88891-24010	Packing (for Cooler)	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
90179-06115	Nut (For Rear Wiper Arm Setting)	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
90179-08123	Nut (For Front Wiper Arm Setting)	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
90201-06204	Washer, Plate(For Steering Tilt Lever)	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
90480-26003	Grommet (For Cooler Unit)	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
90480-36003	Grommet (For Cooler Unit)	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
90987-02005	Relay, Ignition, No.1	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
93315-15012	SCREWWWASHER	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
93315-16010	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
93385-18016	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
93530-55016	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.1993 - ] (9309- ))
