BU60

Toyota DYNA-TOYOACE · 1984 · 3,510 parts · 165 categories

← Back to categories

3,510 items

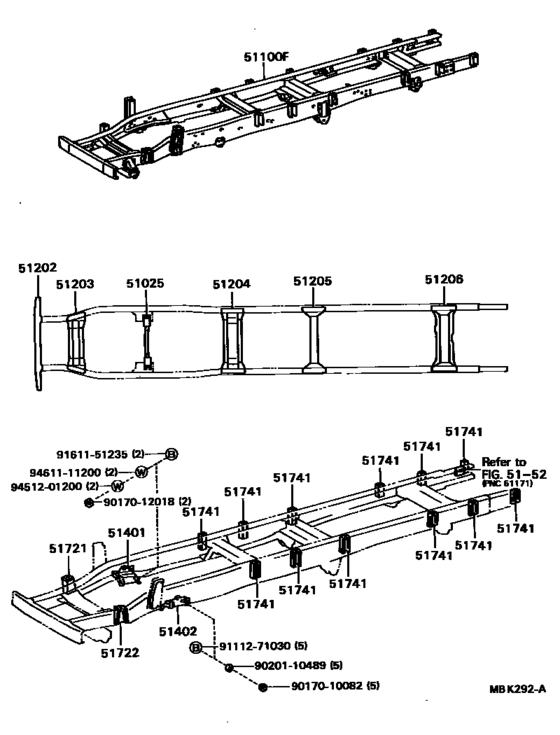

Frame ([01.1986 - ] (8601- )) 19

#	OEM	Part name
51025	51025-36040	Member Sub-Assy, Engine Front Mounting
51100	51002-3B211	Frame Sub-Assy
51202	51201-36130	Crossmember Sub-Assy, Frame, Front
51203	51202-36130	Crossmember Sub-Assy, Frame, No.2
51204	51203-36250	Crossmember Sub-Assy, Frame, No.3
51204	51203-36251	Crossmember Sub-Assy, Frame, No.3
51205	51205-36140	Crossmember Sub-Assy, Frame, No.4
51206	51207-36090	Crossmember Sub-Assy, Frame, No.5
51401	51421-36140	Bracket Sub-Assy, Engine Front Mounting, Rh
51402	51422-36100	Bracket Sub-Assy, Engine Front Mounting, Lh
51721	51723-36020	Bracket, Cab Front Mounting, Rh
51741	51741-36061	Bracket, Rear Body Mounting, No.1
9017010082	90170-10082	Nut, Hexagon (For Control Rod Setting)
9017012018	90170-12018	Nut (For Propeller Shaft)
9020110489	90201-10489	Washer, Plate(For Timing Gear)
9111271030	91112-71030	New Genuine Part
9161151235	91611-51235	New Genuine Part
9451201200	94512-01200	Washer
9461111200	94611-11200	New Genuine Part

OEM	Part name	Category
51002-3B211	Frame Sub-Assy	Frame ([01.1986 - ] (8601- ))
51025-36040	Member Sub-Assy, Engine Front Mounting	Frame ([01.1986 - ] (8601- ))
51201-36130	Crossmember Sub-Assy, Frame, Front	Frame ([01.1986 - ] (8601- ))
51202-36130	Crossmember Sub-Assy, Frame, No.2	Frame ([01.1986 - ] (8601- ))
51203-36250	Crossmember Sub-Assy, Frame, No.3	Frame ([01.1986 - ] (8601- ))
51203-36251	Crossmember Sub-Assy, Frame, No.3	Frame ([01.1986 - ] (8601- ))
51205-36140	Crossmember Sub-Assy, Frame, No.4	Frame ([01.1986 - ] (8601- ))
51207-36090	Crossmember Sub-Assy, Frame, No.5	Frame ([01.1986 - ] (8601- ))
51421-36140	Bracket Sub-Assy, Engine Front Mounting, Rh	Frame ([01.1986 - ] (8601- ))
51422-36100	Bracket Sub-Assy, Engine Front Mounting, Lh	Frame ([01.1986 - ] (8601- ))
51723-36020	Bracket, Cab Front Mounting, Rh	Frame ([01.1986 - ] (8601- ))
51741-36061	Bracket, Rear Body Mounting, No.1	Frame ([01.1986 - ] (8601- ))
90170-10082	Nut, Hexagon (For Control Rod Setting)	Frame ([01.1986 - ] (8601- ))
90170-12018	Nut (For Propeller Shaft)	Frame ([01.1986 - ] (8601- ))
90201-10489	Washer, Plate(For Timing Gear)	Frame ([01.1986 - ] (8601- ))
91112-71030	New Genuine Part	Frame ([01.1986 - ] (8601- ))
91611-51235	New Genuine Part	Frame ([01.1986 - ] (8601- ))
94512-01200	Washer	Frame ([01.1986 - ] (8601- ))
94611-11200	New Genuine Part	Frame ([01.1986 - ] (8601- ))

Source: Public OEM parts-catalog data
Variants: 2 / 142
Category: 165
Collected: 2026-08-03
