Search › Model › BU420

BU420

Toyota DYNA-TOYOACE · 1999 · 3,157 parts · 182 categories

3,157 items

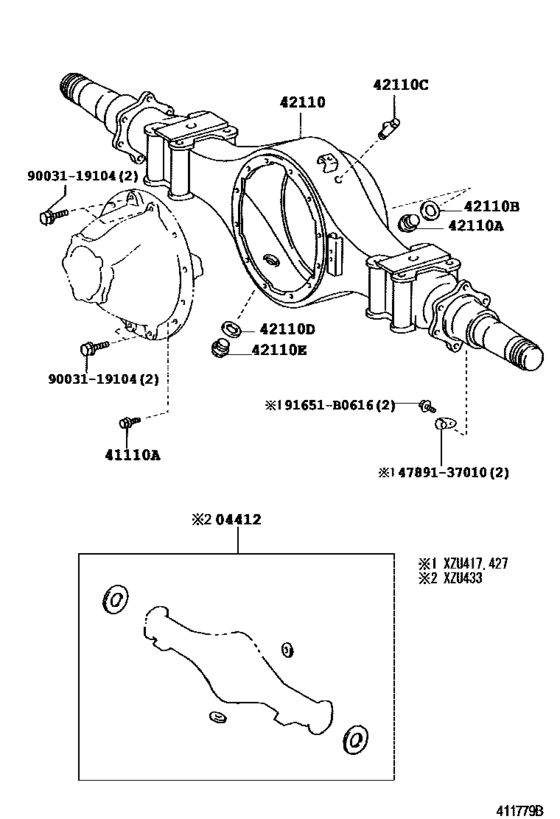

Rear Axle Housing & Differential ([12.2002 - ] (0212- )XZU412,422,424..85T ; (0212- )BU41 0,420,WU412,422,XZU417,427,430,433, 434..6F..75T,85T. .ARL,GCC,SA,TAIW) 10

#	OEM	Part name
41110	90031-19103	Bolt, No.1 (For Rear Differential Carrier Set)
42110	42110-37430	Housing Assy, Rear Axle
42110	42110-37431	Housing Assy, Rear Axle
42110	90033-41022	Plug (For Rear Axle Housing Filler)
42110	42183-37010	Gasket (For Rear Axle Housing Filler Plug)
42110	33209-37010	Plug, Breather (For Rear Axle Housing)
42110	90033-41021	Plug (For Rear Axle Housing Drain)
91651	91651-B0616	BOLT WWASHER
4789137010	47891-37010	Cover, Disc Brake Caliper Dust, Rear Rh
9003119104	90031-19104	New Genuine Part

OEM	Part name	Category
33209-37010	Plug, Breather (For Rear Axle Housing)	Rear Axle Housing & Differential ([12.2002 - ] (0212- )XZU412,422,424..85T ; (0212- )BU41 0,420,WU412,422,XZU417,427,430,433, 434..6F..75T,85T. .ARL,GCC,SA,TAIW)
42110-37430	Housing Assy, Rear Axle	Rear Axle Housing & Differential ([12.2002 - ] (0212- )XZU412,422,424..85T ; (0212- )BU41 0,420,WU412,422,XZU417,427,430,433, 434..6F..75T,85T. .ARL,GCC,SA,TAIW)
42110-37431	Housing Assy, Rear Axle	Rear Axle Housing & Differential ([12.2002 - ] (0212- )XZU412,422,424..85T ; (0212- )BU41 0,420,WU412,422,XZU417,427,430,433, 434..6F..75T,85T. .ARL,GCC,SA,TAIW)
42183-37010	Gasket (For Rear Axle Housing Filler Plug)	Rear Axle Housing & Differential ([12.2002 - ] (0212- )XZU412,422,424..85T ; (0212- )BU41 0,420,WU412,422,XZU417,427,430,433, 434..6F..75T,85T. .ARL,GCC,SA,TAIW)
47891-37010	Cover, Disc Brake Caliper Dust, Rear Rh	Rear Axle Housing & Differential ([12.2002 - ] (0212- )XZU412,422,424..85T ; (0212- )BU41 0,420,WU412,422,XZU417,427,430,433, 434..6F..75T,85T. .ARL,GCC,SA,TAIW)
90031-19103	Bolt, No.1 (For Rear Differential Carrier Set)	Rear Axle Housing & Differential ([12.2002 - ] (0212- )XZU412,422,424..85T ; (0212- )BU41 0,420,WU412,422,XZU417,427,430,433, 434..6F..75T,85T. .ARL,GCC,SA,TAIW)
90031-19104	New Genuine Part	Rear Axle Housing & Differential ([12.2002 - ] (0212- )XZU412,422,424..85T ; (0212- )BU41 0,420,WU412,422,XZU417,427,430,433, 434..6F..75T,85T. .ARL,GCC,SA,TAIW)
90033-41021	Plug (For Rear Axle Housing Drain)	Rear Axle Housing & Differential ([12.2002 - ] (0212- )XZU412,422,424..85T ; (0212- )BU41 0,420,WU412,422,XZU417,427,430,433, 434..6F..75T,85T. .ARL,GCC,SA,TAIW)
90033-41022	Plug (For Rear Axle Housing Filler)	Rear Axle Housing & Differential ([12.2002 - ] (0212- )XZU412,422,424..85T ; (0212- )BU41 0,420,WU412,422,XZU417,427,430,433, 434..6F..75T,85T. .ARL,GCC,SA,TAIW)
91651-B0616	BOLT WWASHER	Rear Axle Housing & Differential ([12.2002 - ] (0212- )XZU412,422,424..85T ; (0212- )BU41 0,420,WU412,422,XZU417,427,430,433, 434..6F..75T,85T. .ARL,GCC,SA,TAIW)

Source: Public OEM parts-catalog data
Variants: 2 / 18
Category: 182
Collected: 2026-08-03
