BU420

Toyota DYNA-TOYOACE · 1999 · 3,157 parts · 182 categories

3,157 items

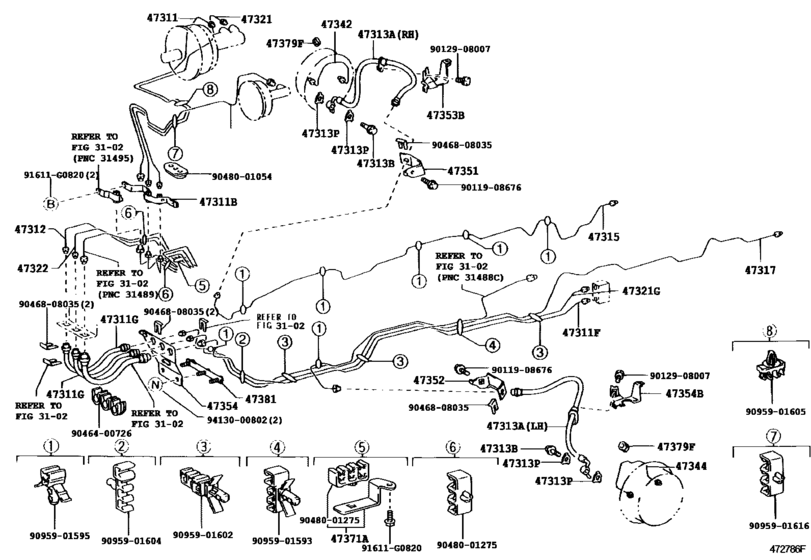

Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420) 40

#	OEM	Part name
47311	47311-37171	Tube, Front Brake, No.1
47311	47391-37020	Way, No.1(For Front Brake Tube)
47311	47311-37410	Tube, Front Brake, Frame No.1
47311	90947-02A79	Hose, Flexible(For Brake Tube)
47312	47312-37430	Tube, Front Brake, No.2
47313	90947-02A77	Hose, Flexible, No.1(For Front)
47313	90947-02B28	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47315	47315-37530	Tube, Front Brake, No.5
47317	47317-37510	Tube, Front Brake, No.7
47321	47321-37172	Tube, Rear Brake, No.1
47321	47321-37340	Tube, Rear Brake, Frame No.1
47322	47322-37510	Tube, Rear Brake, No.2
47342	47342-37061	Tube, Wheel Cylinder, Front Rh No.2
47351	47351-37300	Bracket, Flexible Hose(For Front Rh)
47352	47352-37180	Bracket, Flexible Hose(For Front Lh)
47353	47353-37210	Bracket, Flexible Hose, No.3
47354	47354-37131	Bracket, Front Flexible Hose
47354	47354-37210	Bracket, Flexible Hose, No.4
47371	47371-37020	Clamp, Brake Tube, No.1
47379	47379-37010	Damper, Tube(For Front)
47381	47381-37280	Bracket, Brake Tube Clamp No.1
47381	47381-37281	Bracket, Brake Tube Clamp No.1
91611	91611-G0820	Bolt
9011908676	90119-08676	BOLT WWASHER
9012908007	90129-08007	New Genuine Part
9046400726	90464-00726	Clamp, Brake Tube, No.4
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9048001054	90480-01054	Grommet(For Brake Tube)
9048001275	90480-01275	Clamp, Brake Tube, No.7
9095901593	90959-01593	Clamp, Brake Tube, No.6
9095901595	90959-01595	Clamp, Brake Tube, No.1
9095901602	90959-01602	Clamp, Brake Tube, No.6
9095901604	90959-01604	Clamp, Brake Tube, No.7
9095901605	90959-01605	New Genuine Part
9095901616	90959-01616	New Genuine Part
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part

OEM	Part name	Category
47311-37171	Tube, Front Brake, No.1	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47311-37410	Tube, Front Brake, Frame No.1	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47312-37430	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47315-37530	Tube, Front Brake, No.5	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47317-37510	Tube, Front Brake, No.7	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47321-37172	Tube, Rear Brake, No.1	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47321-37340	Tube, Rear Brake, Frame No.1	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47322-37510	Tube, Rear Brake, No.2	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47342-37061	Tube, Wheel Cylinder, Front Rh No.2	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47351-37300	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47352-37180	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47353-37210	Bracket, Flexible Hose, No.3	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47354-37131	Bracket, Front Flexible Hose	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47354-37210	Bracket, Flexible Hose, No.4	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47371-37020	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47379-37010	Damper, Tube(For Front)	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47381-37280	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47381-37281	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
47391-37020	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90119-08676	BOLT WWASHER	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90129-08007	New Genuine Part	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90170-A0001	New Genuine Part	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90464-00726	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90468-08035	CLIP	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90480-01054	Grommet(For Brake Tube)	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90480-01275	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90947-02A77	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90947-02A79	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90947-02B28	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90959-01593	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90959-01595	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90959-01602	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90959-01604	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90959-01605	New Genuine Part	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
90959-01616	New Genuine Part	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
91611-G0820	Bolt	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
94130-00802	Nut, No.1 (For Center Support Bearing)	Brake Tube & Clamp ([11.2004 - ] W(ABS) & W/O(LSPV) (0110-0610)WU410,XZU412,414,422,424,434..LHD ; ( 0411- )BU410,420)
