Search › Model › BU420

BU420

Toyota DYNA-TOYOACE · 1999 · 3,157 parts · 182 categories

3,157 items

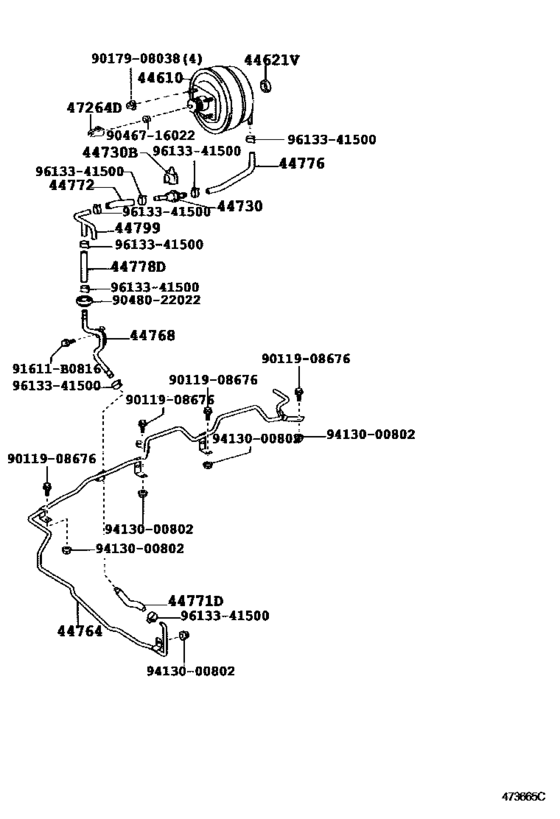

Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420) 46

#	OEM	Part name
27690	27690-78023	Solenoid Assy, W/bracket(For Exhaust Brake)
27690	27690-78130	Solenoid Assy, W/bracket(For Exhaust Brake)
44610	44610-37171	Booster Assy, Brake
44621	44621-36050	Seal, Booster Body
44674	44764-37250	Tube, Booster Vacuum
44704	44704-37070	Reservoir Sub-Assy, Vacuum
44704	44704-37162	Reservoir Sub-Assy, Vacuum
44704	44704-37071	Reservoir Sub-Assy, Vacuum
44730	44730-35010	Valve Assy, Vacuum Check(For Brake)
44730	44597-37020	Clamp, Vacuum Hose
44730	44597-37021	Clamp(For Clutch Booster Vacuum)
44730	44730-60050	Valve Assy, Vacuum Check(For Clutch Vacuum)
44743	90405-09188	Union(For Vacuum Pump)
44756	44756-37100	Bracket, Vacuum Reservoir
44757	44757-37091	Bracket, Vacuum Tank Clamp, No.2
44761	44761-37171	Tube, Intake Manifold Or Vacuum Pump To Connector
44764	44764-37472	Tube, Booster Vacuum
44764	44764-37473	Tube, Booster Vacuum
44764	95446-09160	Hose, Vacuum, No.1
44768	44768-37160	Tube, Booster Vacuum
44771	44771-37230	Hose, Vacuum Brake
44771	44771-37200	Hose, Vacuum Tube Connector, No.1
44772	44772-37020	Hose, Check Valve To Connector Tube
44773	44773-37120	Hose, Solenoid To Exhaust Retarder
44774	44774-37110	Hose, Union To Connector Tube
44774	44774-37320	Hose, Union To Connector Tube
44776	44776-37230	Hose, Brake Booster
44778	44778-37170	Hose, Vacuum Tube To Connector Tube
44778	44778-37171	Hose, Vacuum Tube To Connector Tube
44778	44778-37060	Hose, Solenoid To Vacuum Tube
44781	44781-37081	Bracket, Hose
44799	44799-37010	Way, Brake Vacuum Hose
44912	44912-37431	Tube, 3 Way To Magnetic Valve
44912	44912-37470	Tube, 3 Way To Magnetic Valve
47264	47264-50010	Clevis, Master Cylinder Push Rod
91611	91611-B0816	Bolt
4737137040	47371-37040	Clamp(For Clutch Tube)
9011908676	90119-08676	BOLT WWASHER
9017908038	90179-08038	Nut
9046108385	90461-08385	Clamp
9046716022	90467-16022	Clip(For Water Inlet Hose)
9048022022	90480-22022	GROMMET
9164180818	91641-80818	BOLT WWASHER
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part
9613341500	96133-41500	Clamp Or Clip(For Air Hose, No.5)

OEM	Part name	Category
27690-78023	Solenoid Assy, W/bracket(For Exhaust Brake)	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
27690-78130	Solenoid Assy, W/bracket(For Exhaust Brake)	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44597-37020	Clamp, Vacuum Hose	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44597-37021	Clamp(For Clutch Booster Vacuum)	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44610-37171	Booster Assy, Brake	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44621-36050	Seal, Booster Body	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44704-37070	Reservoir Sub-Assy, Vacuum	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44704-37071	Reservoir Sub-Assy, Vacuum	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44704-37162	Reservoir Sub-Assy, Vacuum	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44730-35010	Valve Assy, Vacuum Check(For Brake)	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44730-60050	Valve Assy, Vacuum Check(For Clutch Vacuum)	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44756-37100	Bracket, Vacuum Reservoir	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44757-37091	Bracket, Vacuum Tank Clamp, No.2	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44761-37171	Tube, Intake Manifold Or Vacuum Pump To Connector	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44764-37250	Tube, Booster Vacuum	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44764-37472	Tube, Booster Vacuum	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44764-37473	Tube, Booster Vacuum	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44768-37160	Tube, Booster Vacuum	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44771-37200	Hose, Vacuum Tube Connector, No.1	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44771-37230	Hose, Vacuum Brake	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44772-37020	Hose, Check Valve To Connector Tube	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44773-37120	Hose, Solenoid To Exhaust Retarder	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44774-37110	Hose, Union To Connector Tube	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44774-37320	Hose, Union To Connector Tube	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44776-37230	Hose, Brake Booster	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44778-37060	Hose, Solenoid To Vacuum Tube	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44778-37170	Hose, Vacuum Tube To Connector Tube	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44778-37171	Hose, Vacuum Tube To Connector Tube	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44781-37081	Bracket, Hose	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44799-37010	Way, Brake Vacuum Hose	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44912-37431	Tube, 3 Way To Magnetic Valve	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
44912-37470	Tube, 3 Way To Magnetic Valve	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
47264-50010	Clevis, Master Cylinder Push Rod	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
47371-37040	Clamp(For Clutch Tube)	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
90119-08676	BOLT WWASHER	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
90170-A0001	New Genuine Part	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
90179-08038	Nut	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
90405-09188	Union(For Vacuum Pump)	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
90461-08385	Clamp	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
90467-16022	Clip(For Water Inlet Hose)	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
90480-22022	GROMMET	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
91611-B0816	Bolt	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
91641-80818	BOLT WWASHER	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
94130-00802	Nut, No.1 (For Center Support Bearing)	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
95446-09160	Hose, Vacuum, No.1	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
96133-41500	Clamp Or Clip(For Air Hose, No.5)	Brake Booster & Vacuum Tube ([11.2004 - ] W/O(ABS) & W(CLUTCH BOOSTER) (0411- )BU410,420)
