| 78100-37620 |
Link Assy, Accelerator |

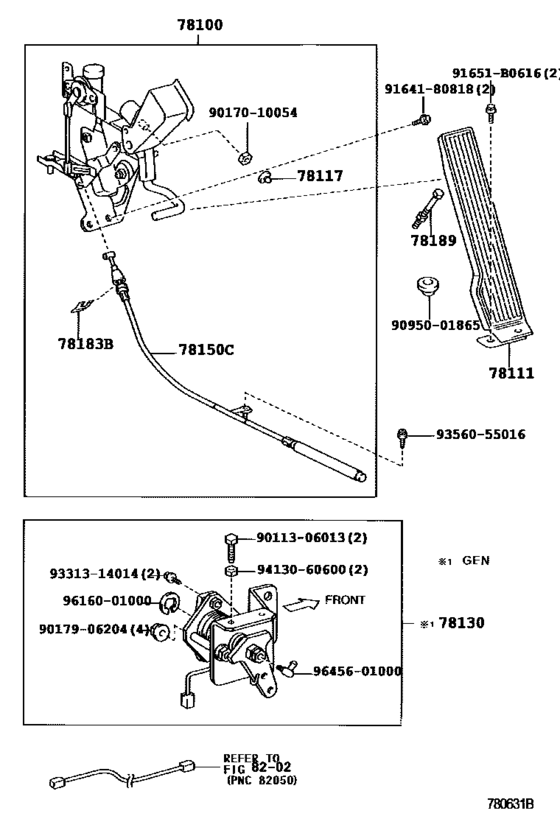

Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 78110-95410 |
Pedal, Accelerator |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 78130-37021 |
Bellcrank Assy, Accelerator |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 78150-37490 |
Wire Assy, Accelerator Flexible |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 78183-26170 |
Clamp, Accelerator Control Cable |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 78208-37090 |
Bolt, Accelerator Pedal Stopper |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 90113-06013 |
New Genuine Part |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 90170-10054 |
Nut, Hexagon |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 90179-06204 |
NUT |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 90541-06038 |
Cushion(For Parking Brake Pedal) |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 90950-01865 |
PLUG HOLE |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 91641-80818 |
BOLT WWASHER |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 91651-B0616 |
BOLT WWASHER |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 93313-14014 |
New Genuine Part |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 93560-55016 |
Screw(For Mat Set Plate) |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 94130-60600 |
Nut, Wire Adjusting, No.1 |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 96160-01000 |
Ring, E(For Clutch Booster Air Valve) |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
| 96456-01000 |
FITTING GREASE |
Accelerator Link ([10.2001 - ] (0110- )BU410,420,XZU414,424,434..LHD) |
