Search › Model › BU410

BU410

Toyota DYNA-TOYOACE · 1999 · 3,157 parts · 182 categories

3,157 items

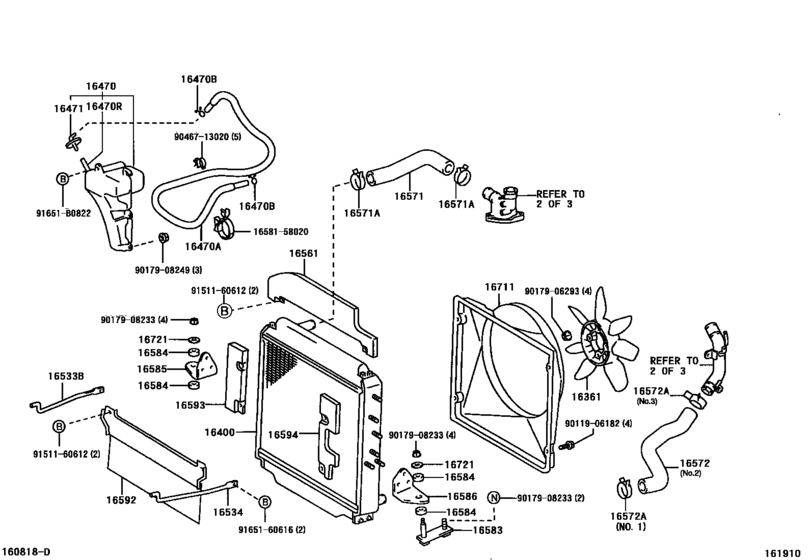

Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE) 73

#	OEM	Part name
16027	16027-58041	Pipe Sub-Assy, Turbo Water, No.1
16028	16028-58020	Pipe Sub-Assy, Turbo Water, No.2
16261	16261-58020	Hose, Water By-Pass
16261	90467-28005	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	16261-58030	Hose, Water By-Pass, No.1
16261	90467-15022	Clip Or Clamp(For Ventilation Hose)
16264	16264-58040	Hose, Water By-Pass, No.2
16267	16267-58030	Hose, Water By-Pass, No.3
16283	16285-58040	Hose, Water By-Pass, No.6
16283	90464-00769	Clamp Or Clip(For Water By-Pass Hose)
16284	16284-58060	Hose, Turbo Water, No.1
16331	16331-58080	Outlet, Water
16331	90916-03102	Thermostat
16331	16401-67150	Cap Sub-Assy(For Water Outlet)
16333	16333-58110	Housing, Water Outlet
16333	92112-60832	Bolt, Stud(For Water Outlet Housing)
16341	16341-56030	Gasket, Water Outlet
16343	16343-56023	Gasket, Water Outlet Housing
16361	16361-58030	Fan
16400	16400-58750	Radiator Assy
16400	16417-15210	Plug, Radiator Drain Cock
16400	16418-15520	Packing(For Radiator Drain Cock)
16441	16441-58610	Tank, Radiator, Upper
16442	16442-58460	Ring, O(For Radiator Upper Tank)
16453	16453-58650	Plate, Radiator Side
16454	16454-58650	Plate, Radiator Side
16455	16455-67020	Bolt, Radiator Side Support Plate
16461	16461-58610	Tank, Radiator, Lower
16465	16465-58710	Packing, Radiator
16470	16470-78010	Tank Assy, Radiator Reserve
16470	16567-58100	Hose Or Pipe(For Radiator Reserve Tank)
16470	16567-78570	Hose Or Pipe(For Radiator Reserve Tank)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16470	90445-12078	Hose(For Radiator Breather)
16471	16405-78010	Cap Sub-Assy, Reserve Tank
16533	16533-58060	Support, Radiator, No.1
16534	16534-58030	Support, Radiator, No.2
16561	16561-58030	Seal, Radiator To Support, No.1
16571	16571-58170	Hose, Radiator, Inlet
16571	16581-78140	Clamp, Sub Radiator Inlet Hose
16571	16581-78191	Clamp, Sub Radiator Inlet Hose
16571	90460-55014	Clamp, Sub Radiator Inlet Hose
16572	16572-58110	Hose, Radiator, Outlet
16572	16572-58150	Hose, Radiator, Outlet
16572	90466-41003	Clip, Radiator Hose, No.1
16572	90467-48003	Clamp Or Clip, Hose(For Radiator Outlet No.1)
16577	16577-58070	Pipe, Radiator, No.7
16583	16583-78020	Bracket, Radiator, No.2
16584	16584-78010	Insulator, Radiator Mounting
16585	16585-58030	Bracket, Radiator, No.3
16586	16586-58030	Bracket, Radiator, No.4
16592	16592-58090	Guide, Radiator Air, No.3
16593	16593-58130	Guide, Radiator Air, No.1
16594	16594-58090	Guide, Radiator Air, No.2
16711	16711-58220	Shroud, Fan
16721	16721-78010	Plate, Holder
91651	91651-B0822	BOLT WWASHER
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part
91651	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
1658158020	16581-58020	Clamp, Hose(For Radiator Hose)
9011906182	90119-06182	Bolt, W/washer (For Floor Shift)
9017906293	90179-06293	NUT
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9017908233	90179-08233	NUT
9017908249	90179-08249	New Genuine Part
9040112097	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
9046400696	90464-00696	Clamp, No.2(For Vacuum Hose)
9046713020	90467-13020	Clamp Or Clip(For Radiator Reserve Tank Hose No.2)
9090430004	90904-30004	Gasket(For Turbo Oil Inlet Pipe)
9151160612	91511-60612	BOLT
9163160816	91631-60816	BOLT
9165160616	91651-60616	BOLT

OEM	Part name	Category
16027-58041	Pipe Sub-Assy, Turbo Water, No.1	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16028-58020	Pipe Sub-Assy, Turbo Water, No.2	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16261-58020	Hose, Water By-Pass	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16261-58030	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16264-58040	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16267-58030	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16284-58060	Hose, Turbo Water, No.1	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16285-58040	Hose, Water By-Pass, No.6	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16331-58080	Outlet, Water	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16333-58110	Housing, Water Outlet	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16341-56030	Gasket, Water Outlet	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16343-56023	Gasket, Water Outlet Housing	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16361-58030	Fan	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16400-58750	Radiator Assy	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16401-67150	Cap Sub-Assy(For Water Outlet)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16405-78010	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16417-15210	Plug, Radiator Drain Cock	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16418-15520	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16441-58610	Tank, Radiator, Upper	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16442-58460	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16453-58650	Plate, Radiator Side	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16454-58650	Plate, Radiator Side	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16455-67020	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16461-58610	Tank, Radiator, Lower	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16465-58710	Packing, Radiator	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16470-78010	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16533-58060	Support, Radiator, No.1	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16534-58030	Support, Radiator, No.2	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16561-58030	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16567-58100	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16567-78570	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16571-58170	Hose, Radiator, Inlet	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16572-58110	Hose, Radiator, Outlet	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16572-58150	Hose, Radiator, Outlet	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16577-58070	Pipe, Radiator, No.7	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16581-58020	Clamp, Hose(For Radiator Hose)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16581-78140	Clamp, Sub Radiator Inlet Hose	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16581-78191	Clamp, Sub Radiator Inlet Hose	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16583-78020	Bracket, Radiator, No.2	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16584-78010	Insulator, Radiator Mounting	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16585-58030	Bracket, Radiator, No.3	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16586-58030	Bracket, Radiator, No.4	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16592-58090	Guide, Radiator Air, No.3	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16593-58130	Guide, Radiator Air, No.1	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16594-58090	Guide, Radiator Air, No.2	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16711-58220	Shroud, Fan	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
16721-78010	Plate, Holder	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90080-11347	New Genuine Part	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90119-06182	Bolt, W/washer (For Floor Shift)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90179-06293	NUT	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90179-08233	NUT	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90179-08249	New Genuine Part	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90460-55014	Clamp, Sub Radiator Inlet Hose	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90464-00696	Clamp, No.2(For Vacuum Hose)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90464-00769	Clamp Or Clip(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90466-41003	Clip, Radiator Hose, No.1	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90467-13020	Clamp Or Clip(For Radiator Reserve Tank Hose No.2)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90467-28005	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90467-48003	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90904-30004	Gasket(For Turbo Oil Inlet Pipe)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
90916-03102	Thermostat	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
91511-60612	BOLT	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
91631-60816	BOLT	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
91651-60616	BOLT	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
91651-B0820	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
91651-B0822	BOLT WWASHER	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
92112-60832	Bolt, Stud(For Water Outlet Housing)	Radiator & Water Outlet ([11.2004 - ] (0411- )15BFTE)
