Search › Model › BU35

BU35

Toyota DYNA-TOYOACE · 1980 · 3,994 parts · 163 categories
BU35 ×

← Back to categories

3,994 items

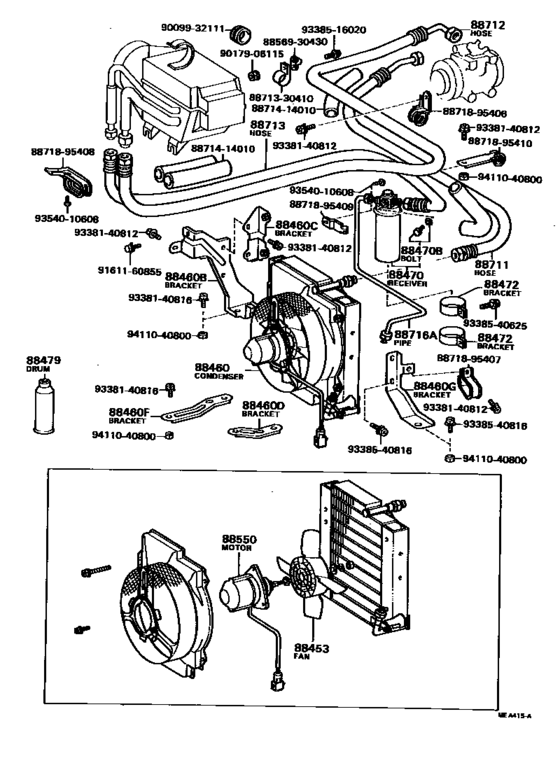

Heating & Air Conditioning - Cooler Piping ([08.1980 - 07.1981] (8008-8107)BU35,36) 46
#OEMPart name
88453 88453-95A01 Fan, Cooling (For Condenser)
88460 88460-95401 Condenser Assy, Cooler
88460 88460-95402 Condenser Assy, Cooler
88460 88688-95401 Bracket, Cooler Condenser, No.1
88460 88688-95408 Bracket, Cooler Condenser, No.1
88460 88688-95400 Bracket, Cooler Condenser, No.2
88460 88688-95402 Bracket, Cooler Condenser, No.3
88460 88688-95409 Bracket, Cooler Condenser, No.3
88460 88688-95403 Bracket, Cooler Condenser, No.4
88460 88688-95404 Bracket, Cooler Condenser, No.5
88460 88688-95406 Bracket, Cooler Condenser, No.5
88470 88470-20070 Receiver & Dryer Assy, Cooler
88470 90099-04579 Bolt, Fuse
88470 88475-12020 Bolt, Fuse
88472 88473-30250 Bracket, Receiver Tank, No.1
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88550 88550-95A03 Motor Assy, Blower (For Condenser)
88711 88711-95403 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-95A11 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-95403 Hose, Cooler Refrigerant Suction, No.1
88712 88712-95404 Hose, Cooler Refrigerant Suction, No.1
88713 88721-95401 Hose, Cooler Refrigerant Suction, No.2
88716 88716-95401 Pipe, Cooler Refrigerant Liquid, A
88716 88716-95402 Pipe, Cooler Refrigerant Liquid, A
8856930430 88569-30430 Clamp (for Cooler Relay)
8871330410 88713-30410 Hose, Cooler Refrigerant Suction, No.2
8871414010 88714-14010 Insulator, Cooler Refrigerant Hose, No.1
8871895406 88718-95406 Pipe, Cooler Refrigerant Suction, No.2
8871895407 88718-95407 Pipe, Cooler Refrigerant Suction, No.2
8871895408 88718-95408 Pipe, Cooler Refrigerant Suction, No.2
8871895409 88718-95409 Pipe, Cooler Refrigerant Suction, No.2
8871895410 88718-95410 Pipe, Cooler Refrigerant Suction, No.2
9009932111 90099-32111 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9161160855 91611-60855 Bolt(For Rocker Support Set)
9338140812 93381-40812 New Genuine Part
9338140816 93381-40816 New Genuine Part
9338516020 93385-16020 New Genuine Part
9338516020 93385-26020 New Genuine Part
9338540625 93385-40625 New Genuine Part
9338540816 93385-40816 New Genuine Part
9354010608 93540-10608 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
