BU297

Toyota DYNA-200-TOYOACE-G25 · 1997 · 4,564 parts · 212 categories

← Back to categories

4,564 items

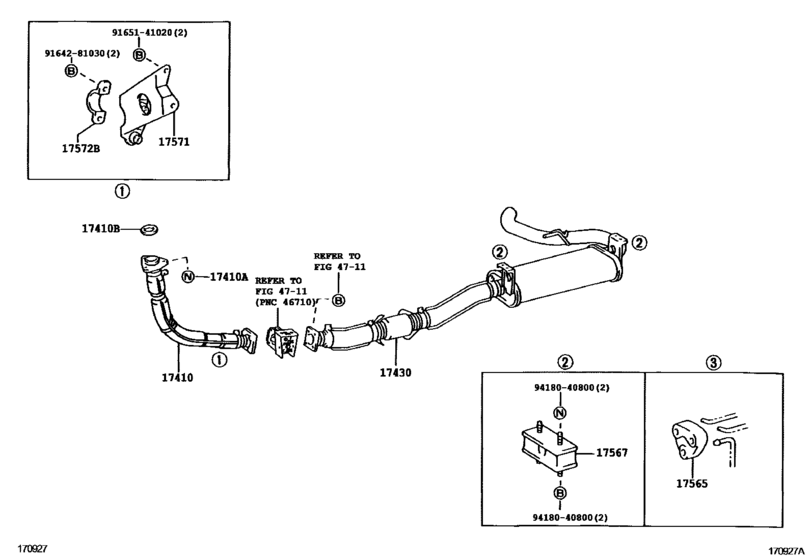

Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297) 13

#	OEM	Part name
17410	17410-58230	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06059	Gasket, Exhaust Pipe
17430	17430-58690	Pipe Assy, Exhaust, Tail
17565	17566-64010	Ring, Catalytic Converter
17567	17567-35010	Cushion, Exhaust Pipe Front (For Rear)
17571	17571-58310	Bracket, Exhaust Pipe Support, No.1
17571	17571-58350	Bracket, Exhaust Pipe Support, No.1
17572	17572-58120	Bracket, Exhaust Pipe No.1 Support
9164281030	91642-81030	Bolt
9165141020	91651-41020	BOLT W-WASHER
9418040800	94180-40800	NUT

OEM	Part name	Category
17410-58230	Pipe Assy, Exhaust, Front	Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297)
17430-58690	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297)
17566-64010	Ring, Catalytic Converter	Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297)
17567-35010	Cushion, Exhaust Pipe Front (For Rear)	Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297)
17571-58310	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297)
17571-58350	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297)
17572-58120	Bracket, Exhaust Pipe No.1 Support	Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297)
90917-06059	Gasket, Exhaust Pipe	Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297)
91642-81030	Bolt	Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297)
91651-41020	BOLT W-WASHER	Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297)
94180-40800	NUT	Exhaust Pipe ([01.1997 - ] (9701- )15BFT..BU297)
