BU297

Toyota DYNA-200-TOYOACE-G25 · 1997 · 4,564 parts · 212 categories
BU297 ×

← Back to categories

4,564 items

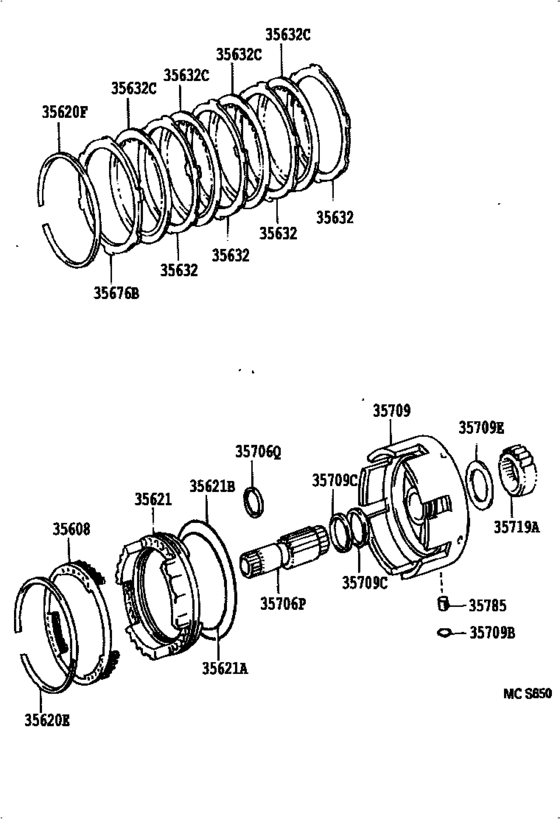

Center Support & Planetary Sun Gear (Atm) ([05.1995 - 06.1999] A443E,A443F (9505-9906)4FC) 24
#OEMPart name
35608 35608-36010 Spring Sub-Assy, Overdrive Brake Return
35620 90521-99109 Ring, Hole Snap (For Overdrive Brake Return Spring)
35621 35621-36010 Piston, Overdrive Brake
35621 90301-99030 Ring, O (For Overdrive Brake Piston)
35621 90301-99031 Ring, O (For Overdrive Brake Piston)
35632 35632-36010 Plate, Brake
35632 35633-36060 Disc, Clutch (For Brake)
35676 35676-60010 Flange, Overdrive Brake, No.1
35676 35676-60020 Flange, Brake, No.1
35676 35676-60030 Flange, Brake, No.1
35676 35676-60040 Flange, Brake, No.1
35706 35706-37010 Gear Sub-Assy, Planetary Sun
35706 90520-33009 Ring, Shaft Snap (For Front Planetary Sun Gear)
35709 35709-60010 Support Sub-Assy, Center
35709 35709-60011 Support Sub-Assy, Center
35709 90301-09008 Ring, O (For Overdrive Case)
35709 35617-36020 Ring, Clutch Drum Oil Seal (For Overdrive)
35709 90209-52005 Washer (For Center Support)
35709 90209-52006 Washer (For Center Support)
35709 90209-52007 Washer (For Center Support)
35709 90209-52008 Washer (For Center Support)
35709 90209-52009 Washer (For Center Support)
35719 35719-37010 Gear, Rear Planetary Sun
35785 35785-36010 Retainer, Center Support Ring
