Search › Model › BU297

BU297

Toyota DYNA-200-TOYOACE-G25 · 1997 · 4,564 parts · 212 categories

4,564 items

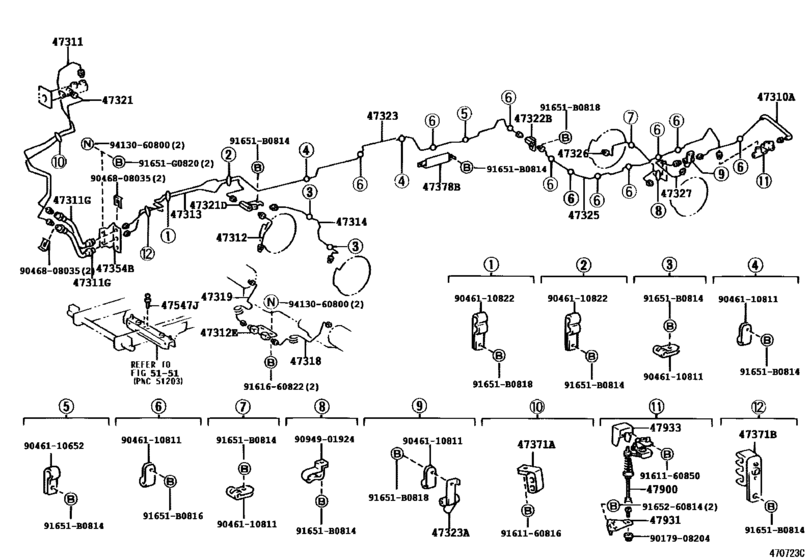

Brake Tube & Clamp ([01.1997 - ] (9701- )BU297) 46

#	OEM	Part name
47310	47320-37010	Tube Assy, Brake, No.2
47311	47311-37040	Tube, Front Brake, No.1
47311	90947-02964	Hose, Flexible(For Brake Tube)
47312	47313-36280	Tube, Front Brake, No.2
47312	47391-36010	Way, No.2(For Front Brake Tube)
47313	47313-37112	Tube, Front Brake, No.3
47314	47314-37130	Tube, Front Brake, No.4
47318	47318-36250	Tube, Front Brake, No.8
47319	47319-36170	Tube, Front Brake, No.9
47321	47321-37040	Tube, Front Brake, No.2
47321	90904-13030	Way, No.3(For Front Brake Tube)
47322	90412-10006	Way(For Front Brake Tube)
47323	47323-37031	Tube, Rear Brake, No.3
47323	90904-13003	Way, No.1(For Rear Brake Tube)
47325	47323-37040	Tube, Rear Brake, No.5
47326	47326-65020	Tube, Rear Brake, No.6
47327	47327-65020	Tube, Rear Brake, No.7
47354	47354-37020	Bracket, Flexible Hose, No.4
47371	90949-01188	Clamp, Brake Tube, No.1
47371	47372-36040	Clamp, Brake Tube, No.6
47378	17551-58070	Protector, Tube, Upper
47547	47547-60020	Plug, Bleeder(For Release Cylinder)
47900	47900-65020	Valve Assy, Load Sensing W/spring
47931	47931-65010	Bracket, Load Sensing Valve
47933	47933-65010	Bracket, Load Sensing Shackle, No.1
91651	91651-B0814	Bolt with washer
91651	91651-B0816	New Genuine Part
91651	91651-B0818	BOLT WWASHER
91651	91651-G0820	New Genuine Part
91651	90119-08842	BOLT WWASHER
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER
9046110652	90461-10652	New Genuine Part
9046110811	90461-10811	New Genuine Part
9046110822	90461-10822	New Genuine Part
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9094901924	90949-01924	New Genuine Part
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160850	91611-60850	Bolt(For Rocker Support Set)
9161660822	91616-60822	Bolt(For Clutch Release Cylinder Setting)
9161660822	91611-G0820	Bolt
9165260814	91652-60814	New Genuine Part
9413060800	94130-60800	Nut(For Clutch Pedal Stopper)
9413060800	90170-A0003	New Genuine Part

OEM	Part name	Category
17551-58070	Protector, Tube, Upper	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47311-37040	Tube, Front Brake, No.1	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47313-36280	Tube, Front Brake, No.2	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47313-37112	Tube, Front Brake, No.3	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47314-37130	Tube, Front Brake, No.4	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47318-36250	Tube, Front Brake, No.8	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47319-36170	Tube, Front Brake, No.9	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47320-37010	Tube Assy, Brake, No.2	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47321-37040	Tube, Front Brake, No.2	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47323-37031	Tube, Rear Brake, No.3	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47323-37040	Tube, Rear Brake, No.5	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47326-65020	Tube, Rear Brake, No.6	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47327-65020	Tube, Rear Brake, No.7	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47354-37020	Bracket, Flexible Hose, No.4	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47372-36040	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47391-36010	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47547-60020	Plug, Bleeder(For Release Cylinder)	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47900-65020	Valve Assy, Load Sensing W/spring	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47931-65010	Bracket, Load Sensing Valve	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
47933-65010	Bracket, Load Sensing Shackle, No.1	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90080-18070	NUT, WWASHER	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90119-08842	BOLT WWASHER	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90170-A0003	New Genuine Part	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90179-08204	Nut	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90412-10006	Way(For Front Brake Tube)	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90461-10652	New Genuine Part	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90461-10811	New Genuine Part	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90461-10822	New Genuine Part	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90468-08035	CLIP	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90904-13003	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90904-13030	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90947-02964	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90949-01188	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
90949-01924	New Genuine Part	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
91611-60850	Bolt(For Rocker Support Set)	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
91611-B0816	Bolt	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
91611-G0820	Bolt	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
91616-60822	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
91651-B0814	Bolt with washer	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
91651-B0816	New Genuine Part	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
91651-B0818	BOLT WWASHER	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
91651-G0820	New Genuine Part	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
91652-60814	New Genuine Part	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
94130-60800	Nut(For Clutch Pedal Stopper)	Brake Tube & Clamp ([01.1997 - ] (9701- )BU297)
