BU23

Toyota DYNA-TOYOACE · 1983 · 2,947 parts · 144 categories
BU23 ×

← Back to categories

2,947 items

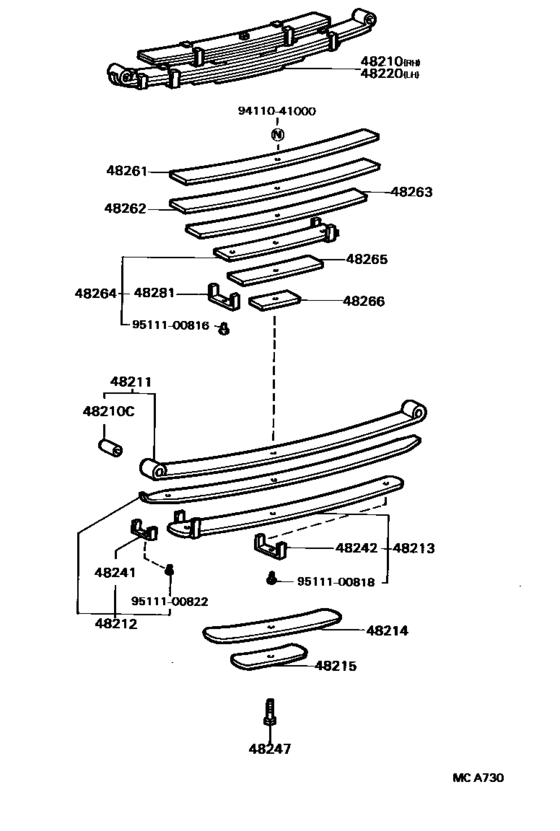

Rear Spring & Shock Absorber ([12.1983 - 08.1984] (8312-8408)BU23) 23
#OEMPart name
48210 48210-36460 Spring Assy, Rear Rh
48210 90389-16002 Bimetal Formed Bush(For Front Spring)
48211 48201-36190 Leaf, Rear Spring, No.1
48212 48204-36460 Leaf, Rear Spring, No.2
48213 48202-36190 Leaf, Rear Spring, No.3
48214 48214-36190 Leaf, Rear Spring, No.4
48214 48214-36690 Leaf, Rear Spring, No.4
48215 48215-36190 Leaf, Rear Spring, No.5
48215 48215-3B350 Leaf, Rear Spring, No.5
48241 48242-36190 Clip, Rear Spring, No.1
48242 48241-36190 Clip, Rear Spring, No.2
48247 48247-36460 Bolt, Rear Spring, Center
48261 48216-36460 Leaf, Rear Helper Spring, No.1
48262 48217-36460 Leaf, Rear Helper Spring, No.2
48263 48218-36460 Leaf, Rear Helper Spring, No.3
48264 48203-36460 Leaf, Rear Helper Spring, No.4
48265 48221-36460 Leaf, Rear Helper Spring, No.5
48266 48222-36460 Leaf, Rear Helper Spring, No.6
48281 48242-36360 Clip, Rear Helper Spring, No.1 - REAR SPRING, NO.1
9411041000 94110-41000 Nut(For Steering Damper)
9511100816 95111-00816 New Genuine Part
9511100818 95111-00818 New Genuine Part
9511100822 95111-00822 New Genuine Part
Source
Public OEM parts-catalog data
Variants
2 / 16
Category
144
Collected
2026-08-03
