BU223

Toyota DYNA-200-TOYOACE-G25 · 1999 · 3,304 parts · 180 categories

← Back to categories

3,304 items

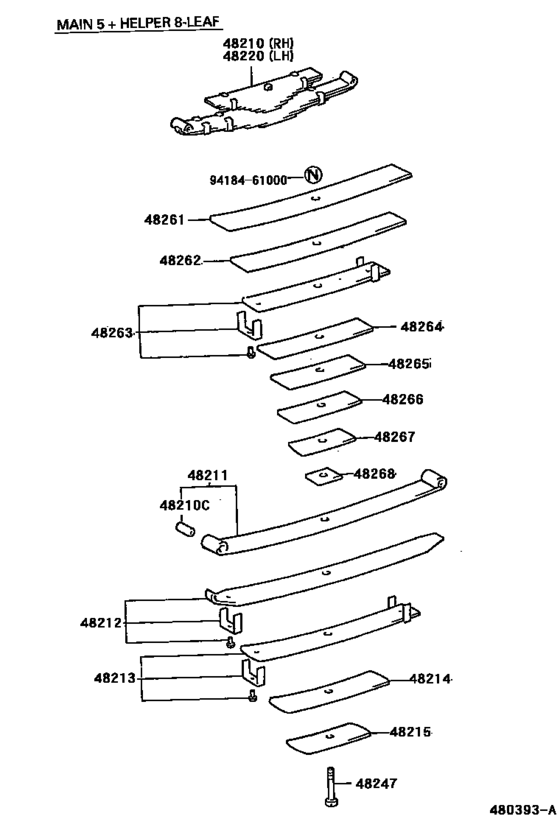

Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T) 18

#	OEM	Part name
48210	48210-36690	Spring Assy, Rear Rh
48210	90389-16002	Bimetal Formed Bush(For Front Spring)
48211	48201-36690	Leaf, Rear Spring, No.1
48212	48202-36690	Leaf, Rear Spring, No.2
48213	48203-36690	Leaf, Rear Spring, No.3
48214	48214-36690	Leaf, Rear Spring, No.4
48215	48215-36690	Leaf, Rear Spring, No.5
48247	48247-36160	Bolt, Rear Spring, Center
48261	48216-36690	Leaf, Rear Helper Spring, No.1
48262	48217-36690	Leaf, Rear Helper Spring, No.2
48263	48204-36690	Leaf, Rear Helper Spring, No.3
48264	48219-36690	Leaf, Rear Helper Spring, No.4
48265	48221-36690	Leaf, Rear Helper Spring, No.5
48266	48222-36690	Leaf, Rear Helper Spring, No.6
48267	48223-36690	Leaf, Rear Helper Spring, No.7
48268	48224-36690	Leaf, Rear Helper Spring, No.8
9418461000	94184-61000	Nut(For Rear Spring)
9418461000	48284-37U70	Nut(For Rear Spring)

OEM	Part name	Category
48201-36690	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48202-36690	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48203-36690	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48204-36690	Leaf, Rear Helper Spring, No.3	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48210-36690	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48214-36690	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48215-36690	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48216-36690	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48217-36690	Leaf, Rear Helper Spring, No.2	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48219-36690	Leaf, Rear Helper Spring, No.4	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48221-36690	Leaf, Rear Helper Spring, No.5	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48222-36690	Leaf, Rear Helper Spring, No.6	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48223-36690	Leaf, Rear Helper Spring, No.7	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48224-36690	Leaf, Rear Helper Spring, No.8	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48247-36160	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
48284-37U70	Nut(For Rear Spring)	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
90389-16002	Bimetal Formed Bush(For Front Spring)	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
94184-61000	Nut(For Rear Spring)	Rear Spring & Shock Absorber ([08.1999 - ] (9505- )BU211 ; (9505- )BU212..30T,40T..AR L,GEN,TAIW ; (9908- )BU213,223.. 30T)
