BU223

Toyota DYNA-200-TOYOACE-G25 · 1999 · 3,304 parts · 180 categories

← Back to categories

3,304 items

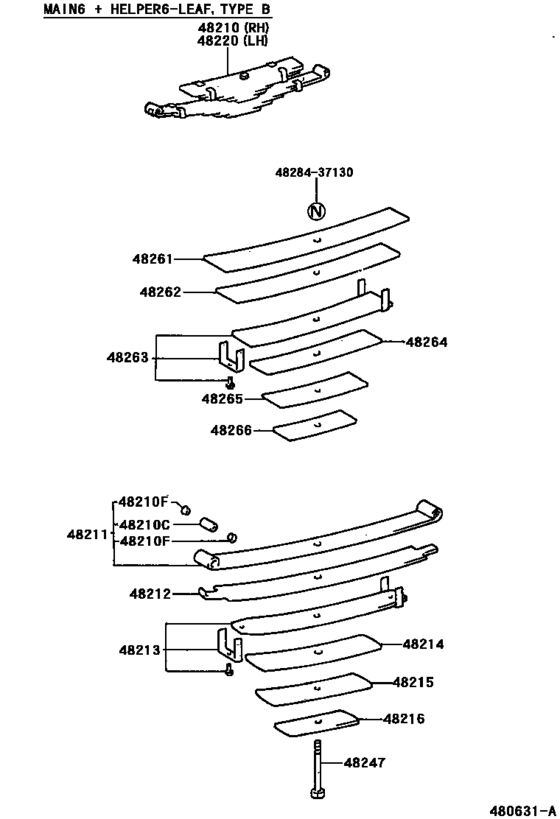

Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW) 17

#	OEM	Part name
48210	48210-3B300	Spring Assy, Rear Rh
48210	90384-28120	Bush(For Rear Spring Leaf)
48210	90304-27009	Seal, Dust(For Rear Spring Pin)
48211	48201-3B300	Leaf, Rear Spring, No.1
48212	48212-3B300	Leaf, Rear Spring, No.2
48213	48202-3B300	Leaf, Rear Spring, No.3
48214	48214-3B300	Leaf, Rear Spring, No.4
48215	48215-3B300	Leaf, Rear Spring, No.5
48216	48216-3B300	Leaf, Rear Spring, No.6
48247	48247-36300	Bolt, Rear Spring, Center
48261	48217-3B300	Leaf, Rear Helper Spring, No.1
48262	48218-3B300	Leaf, Rear Helper Spring, No.2
48263	48203-3B300	Leaf, Rear Helper Spring, No.3
48264	48221-3B300	Leaf, Rear Helper Spring, No.4
48265	48222-3B300	Leaf, Rear Helper Spring, No.5
48266	48223-3B300	Leaf, Rear Helper Spring, No.6
4828437130	48284-37130	Nut, Front Spring Center Bolt

OEM	Part name	Category
48201-3B300	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48202-3B300	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48203-3B300	Leaf, Rear Helper Spring, No.3	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48210-3B300	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48212-3B300	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48214-3B300	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48215-3B300	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48216-3B300	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48217-3B300	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48218-3B300	Leaf, Rear Helper Spring, No.2	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48221-3B300	Leaf, Rear Helper Spring, No.4	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48222-3B300	Leaf, Rear Helper Spring, No.5	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48223-3B300	Leaf, Rear Helper Spring, No.6	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48247-36300	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
48284-37130	Nut, Front Spring Center Bolt	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
90304-27009	Seal, Dust(For Rear Spring Pin)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
90384-28120	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )LHD..40T..TD..GEN ; (9505- )BU21#, 223..40T..DSL,TDEFI ; (9505- )BU 221,222..ARL,EUR, SA,TAIW)
