BU223

Toyota DYNA-200-TOYOACE-G25 · 1999 · 3,304 parts · 180 categories
BU223 ×

← Back to categories

3,304 items

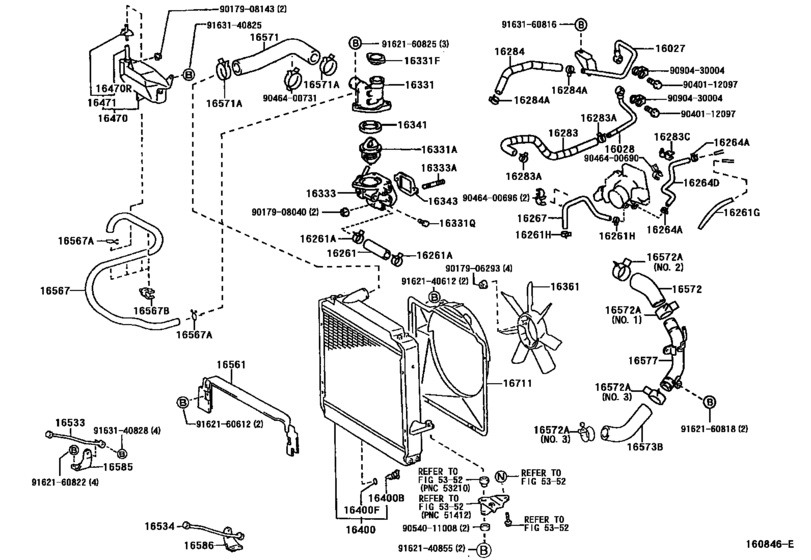

Radiator & Water Outlet ([08.1999 - ] (9908- )15BFTE) 68
#OEMPart name
16027 16027-58040 Pipe Sub-Assy, Turbo Water, No.1
16027 16027-58041 Pipe Sub-Assy, Turbo Water, No.1
16028 16028-58020 Pipe Sub-Assy, Turbo Water, No.2
16261 16261-58020 Hose, Water By-Pass
16261 90467-28005 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 16261-58030 Hose, Water By-Pass, No.1
16261 90467-15022 Clip Or Clamp(For Ventilation Hose)
16264 16264-58080 Hose, Water By-Pass, No.2
16267 16267-58030 Hose, Water By-Pass, No.3
16283 16285-58040 Hose, Water By-Pass, No.6
16283 90464-00769 Clamp Or Clip(For Water By-Pass Hose)
16284 16284-58060 Hose, Turbo Water, No.1
16331 16331-58080 Outlet, Water
16331 90916-03102 Thermostat
16331 16401-67150 Cap Sub-Assy(For Water Outlet)
16331 90345-54005 Plug, W/head Taper Screw, No.1
16333 16333-58110 Housing, Water Outlet
16333 92112-60832 Bolt, Stud(For Water Outlet Housing)
16341 16341-56030 Gasket, Water Outlet
16343 16343-56023 Gasket, Water Outlet Housing
16361 16361-58030 Fan
16400 16400-58491 Radiator Assy
16400 16400-58492 Radiator Assy
16400 16417-15210 Plug, Radiator Drain Cock
16400 16418-15520 Packing(For Radiator Drain Cock)
16470 16470-58070 Tank Assy, Radiator Reserve
16470 90445-12078 Hose(For Radiator Breather)
16471 16405-58050 Cap Sub-Assy, Reserve Tank
16533 16505-58020 Support, Radiator, Upper
16534 16506-58010 Support, Radiator, No.2
16561 16561-58020 Seal, Radiator To Support, No.1
16567 16567-58010 Hose Or Pipe(For Radiator Reserve Tank)
16567 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16567 90469-12009 Clamp Or Clip(For Radiator Reserve Tank Hose)
16571 16571-58210 Hose, Radiator, Inlet
16571 90467-42001 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90466-41008 Clamp, Hose(For Radiator Hose)
16572 16572-58110 Hose, Radiator, Outlet
16572 90467-41004 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16572 90466-41003 Clip, Radiator Hose, No.1
16572 90467-48003 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16572 96111-10510 Clamp Or Clip, Sub Radiator Hose
16573 16573-58150 Hose, Radiator, No.3
16577 16577-58070 Pipe, Radiator, No.7
16585 16585-58010 Bracket, Radiator, No.3
16586 16586-58010 Bracket, Radiator, No.4
16711 16711-58250 Shroud, Fan
9017906293 90179-06293 NUT
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9017908143 90179-08143 NUT
9040112097 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
9046400690 90464-00690 New Genuine Part
9046400696 90464-00696 Clamp, No.2(For Vacuum Hose)
9046400731 90464-00731 Clamp Or Clip(For Water Hose)
9054011008 90540-11008 Insulator, Radiator Mounting
9090430004 90904-30004 Gasket(For Turbo Oil Inlet Pipe)
9162140612 91621-40612 BOLT W-WASHER
9162140855 91621-40855 New Genuine Part
9162160612 91621-60612 BOLTWWASHER
9162160612 91621-J0612 BOLT W-WASHER
9162160818 91621-60818 Bolt(For Automatic Transmission Case Protector)
9162160818 91651-B0820 Bolt, Radiator Side Support Plate
9162160822 91621-60822 Bolt, W/washer(For Repair Actuator Set)
9162160825 91621-60825 BOLT
9162160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9163140825 91631-40825 New Genuine Part
9163140828 91631-40828 New Genuine Part
9163160816 91631-60816 BOLT
