Search › Model › BU223

BU223

Toyota DYNA-200-TOYOACE-G25 · 1999 · 3,304 parts · 180 categories

3,304 items

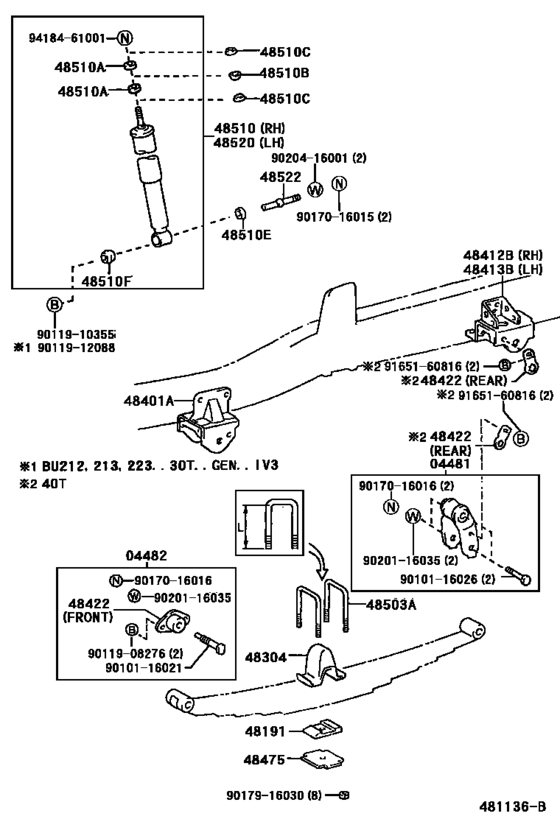

Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210) 42

#	OEM	Part name
4481	04481-36100	Shackle Kit, Front Spring
4482	04482-36040	Pin Kit, Front Spring
48191	48191-35020	Wedge, Caster(For Front Leaf Spring)
48304	48304-36110	Bumper Sub-Assy, Front Spring, No.1
48304	48304-36150	Bumper Sub-Assy, Front Spring, No.1
48401	48411-36140	Bracket Sub-Assy, Spring, No.1
48401	48412-36140	Bracket Sub-Assy, Spring, No.1
48401	48411-36130	Bracket Sub-Assy, Spring, No.1
48401	48412-36130	Bracket Sub-Assy, Spring, No.1
48412	48433-36060	Bracket, Spring, No.2 Rh
48413	48434-36060	Bracket, Spring, No.2 Lh
48422	48422-36040	Support, Front Spring Pin
48422	48422-36050	Support, Front Spring Pin
48475	48475-36070	Plate, Distance(For Front)
48503	90117-16017	Bolt, U(For Front Shock Absorber Bracket)
48503	90117-16033	Bolt, U(For Front Shock Absorber Bracket)
48503	90117-16016	Bolt, U(For Front Shock Absorber Bracket)
48510	48511-80037	Absorber Assy, Shock, Front Rh
48510	90948-01003	Rubber Cushion
48510	90948-02007	Retainer, Steering Damper Cushion
48510	90948-02002	Retainer, Steering Damper Cushion
48510	90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)
48510	90385-16011	Cushion, Shock Absorber
48510	48511-80036	Absorber Assy, Shock, Front Rh
48510	90948-03011	Washer, Front Shock Absorber Cushion, No.1
48510	90385-19006	Cushion, Shock Absorber
48522	48522-25020	Pin, Front Shock Absorber Lower Pivot
48522	48522-36041	Pin, Front Shock Absorber Lower Pivot
9010116021	90101-16021	BOLT
9010116026	90101-16026	BOLT HEXAGON
9011908276	90119-08276	New Genuine Part
9011908276	90119-08336	BOLT
9011910355	90119-10355	Washer, Rear Shock Absorber Cushion, No.2
9011912088	90119-12088	BOLT
9017016015	90170-16015	New Genuine Part
9017016016	90170-16016	NUT HEXAGON
9017916030	90179-16030	NUT
9020116035	90201-16035	New Genuine Part
9020416001	90204-16001	Washer(For Center Arm Shaft)
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9418461001	94184-61001	Nut(For Front Stabilizer Bar)

OEM	Part name	Category
04481-36100	Shackle Kit, Front Spring	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
04482-36040	Pin Kit, Front Spring	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48191-35020	Wedge, Caster(For Front Leaf Spring)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48304-36110	Bumper Sub-Assy, Front Spring, No.1	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48304-36150	Bumper Sub-Assy, Front Spring, No.1	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48411-36130	Bracket Sub-Assy, Spring, No.1	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48411-36140	Bracket Sub-Assy, Spring, No.1	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48412-36130	Bracket Sub-Assy, Spring, No.1	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48412-36140	Bracket Sub-Assy, Spring, No.1	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48422-36040	Support, Front Spring Pin	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48422-36050	Support, Front Spring Pin	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48433-36060	Bracket, Spring, No.2 Rh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48434-36060	Bracket, Spring, No.2 Lh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48475-36070	Plate, Distance(For Front)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48511-80036	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48511-80037	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48522-25020	Pin, Front Shock Absorber Lower Pivot	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
48522-36041	Pin, Front Shock Absorber Lower Pivot	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90080-11396	Bolt	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90101-16021	BOLT	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90101-16026	BOLT HEXAGON	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90117-16016	Bolt, U(For Front Shock Absorber Bracket)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90117-16017	Bolt, U(For Front Shock Absorber Bracket)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90117-16033	Bolt, U(For Front Shock Absorber Bracket)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90119-08276	New Genuine Part	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90119-08336	BOLT	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90119-10355	Washer, Rear Shock Absorber Cushion, No.2	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90119-12088	BOLT	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90170-16015	New Genuine Part	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90170-16016	NUT HEXAGON	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90179-16030	NUT	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90201-16035	New Genuine Part	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90204-16001	Washer(For Center Arm Shaft)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90385-16011	Cushion, Shock Absorber	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90385-19006	Cushion, Shock Absorber	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90948-01003	Rubber Cushion	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90948-02002	Retainer, Steering Damper Cushion	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90948-02007	Retainer, Steering Damper Cushion	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
90948-03011	Washer, Front Shock Absorber Cushion, No.1	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
91651-60816	BOLT	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)
94184-61001	Nut(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([03.1997 - ] (9703- )BU21#,22#,YU210)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 180
Collected: 2026-08-03
