Search › Model › BU22

BU22

Toyota DYNA-TOYOACE · 1983 · 3,812 parts · 168 categories

3,812 items

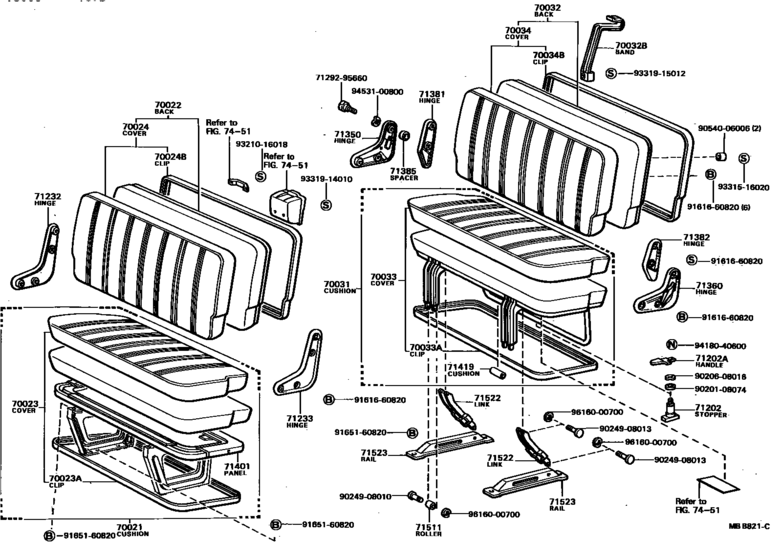

Seat & Seat Track ([08.1980 - ] (8008- )09S) 41

#	OEM	Part name
70021	71410-92663	Cushion Assy, No.2 Seat
70022	71450-92662	Back Assy, No.2 Seat
70023	71065-92662	Cover Assy, No.2 Seat Cushion
70023	71417-95A01	Clip, Leather (For Seat Cushion Cover)
70024	71409-92662	Cover Assy, No.2 Seat Back
70024	71417-95A02	Clip, Leather(For Seat Back Cover)
70031	71510-92662	Cushion Assy, No.3 Seat
70032	71550-92662	Back Assy, No.3 Seat
70032	58930-95701	Band, Engine Service Hole Cover Support
70032	58930-95701-01	Band Assy, Engine Service Hole Cover Support
71202	71054-92625	Stopper Sub-Assy, Rear Seat Leg
71202	71616-95A00	Handle, Rear Seat Leg Stopper
71232	71481-92660	Hinge, Rear Seat Back Frame, Rh
71233	71482-92660	Hinge, Rear Seat Back Frame, Lh
71350	71570-92160	Link Assy, Rear Seat Back Cushion, Rh
71360	71560-92160	Link Assy, Rear Seat Back Cushion, Lh
71381	71557-92160	Hinge, Rear Seat Back Stop, No.1
71382	71556-92160	Hinge, Rear Seat Back Stop, No.2
71385	71291-95660	Collar
71401	71401-92661	Panel Sub-Assy, Rear No.1, Seat Cushion
71419	71419-92628	Cushion (For Rear Seat Leg)
71511	71511-95A00	Roller, Rear Seat Leg
71522	71522-95A01	Link, Rear Seat
71523	71523-95A01	Rail, Rear Seat
7129295660	71292-95660	Bolt, Passenger Seat Hinge
9020108074	90201-08074	New Genuine Part
9020608016	90206-08016	Washer, Wave (For Low Speed Connecting Rod)
9024908010	90249-08010	New Genuine Part
9024908013	90249-08013	Pin, Shift Lever (For Floor Shift)
9054006006	90540-06006	New Genuine Part
9161660820	91616-60820	Bolt(For Clutch Release Cylinder Setting)
9161660820	91611-G0820	Bolt
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9321016018	93210-16018	New Genuine Part
9331516020	93315-16020	Screw
9331914010	93319-14010	SCREW
9331915012	93319-15012	Screw
9418040600	94180-40600	Retainer, Roof Window Hinge
9453100800	94531-00800	Washer (For Transfer Shift Outer Lever)
9616000700	96160-00700	Ring, E(For Chain Tensioner Slipper)

OEM	Part name	Category
58930-95701	Band, Engine Service Hole Cover Support	Seat & Seat Track ([08.1980 - ] (8008- )09S)
58930-95701-01	Band Assy, Engine Service Hole Cover Support	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71054-92625	Stopper Sub-Assy, Rear Seat Leg	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71065-92662	Cover Assy, No.2 Seat Cushion	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71291-95660	Collar	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71292-95660	Bolt, Passenger Seat Hinge	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71401-92661	Panel Sub-Assy, Rear No.1, Seat Cushion	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71409-92662	Cover Assy, No.2 Seat Back	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71410-92663	Cushion Assy, No.2 Seat	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71417-95A01	Clip, Leather (For Seat Cushion Cover)	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71417-95A02	Clip, Leather(For Seat Back Cover)	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71419-92628	Cushion (For Rear Seat Leg)	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71450-92662	Back Assy, No.2 Seat	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71481-92660	Hinge, Rear Seat Back Frame, Rh	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71482-92660	Hinge, Rear Seat Back Frame, Lh	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71510-92662	Cushion Assy, No.3 Seat	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71511-95A00	Roller, Rear Seat Leg	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71522-95A01	Link, Rear Seat	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71523-95A01	Rail, Rear Seat	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71550-92662	Back Assy, No.3 Seat	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71556-92160	Hinge, Rear Seat Back Stop, No.2	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71557-92160	Hinge, Rear Seat Back Stop, No.1	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71560-92160	Link Assy, Rear Seat Back Cushion, Lh	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71570-92160	Link Assy, Rear Seat Back Cushion, Rh	Seat & Seat Track ([08.1980 - ] (8008- )09S)
71616-95A00	Handle, Rear Seat Leg Stopper	Seat & Seat Track ([08.1980 - ] (8008- )09S)
90201-08074	New Genuine Part	Seat & Seat Track ([08.1980 - ] (8008- )09S)
90206-08016	Washer, Wave (For Low Speed Connecting Rod)	Seat & Seat Track ([08.1980 - ] (8008- )09S)
90249-08010	New Genuine Part	Seat & Seat Track ([08.1980 - ] (8008- )09S)
90249-08013	Pin, Shift Lever (For Floor Shift)	Seat & Seat Track ([08.1980 - ] (8008- )09S)
90540-06006	New Genuine Part	Seat & Seat Track ([08.1980 - ] (8008- )09S)
91611-G0820	Bolt	Seat & Seat Track ([08.1980 - ] (8008- )09S)
91616-60820	Bolt(For Clutch Release Cylinder Setting)	Seat & Seat Track ([08.1980 - ] (8008- )09S)
91651-60820	Bolt, Radiator Side Support Plate	Seat & Seat Track ([08.1980 - ] (8008- )09S)
91651-B0820	Bolt, Radiator Side Support Plate	Seat & Seat Track ([08.1980 - ] (8008- )09S)
93210-16018	New Genuine Part	Seat & Seat Track ([08.1980 - ] (8008- )09S)
93315-16020	Screw	Seat & Seat Track ([08.1980 - ] (8008- )09S)
93319-14010	SCREW	Seat & Seat Track ([08.1980 - ] (8008- )09S)
93319-15012	Screw	Seat & Seat Track ([08.1980 - ] (8008- )09S)
94180-40600	Retainer, Roof Window Hinge	Seat & Seat Track ([08.1980 - ] (8008- )09S)
94531-00800	Washer (For Transfer Shift Outer Lever)	Seat & Seat Track ([08.1980 - ] (8008- )09S)
96160-00700	Ring, E(For Chain Tensioner Slipper)	Seat & Seat Track ([08.1980 - ] (8008- )09S)
