Search › Model › BU22

BU22

Toyota DYNA-TOYOACE · 1983 · 3,812 parts · 168 categories

3,812 items

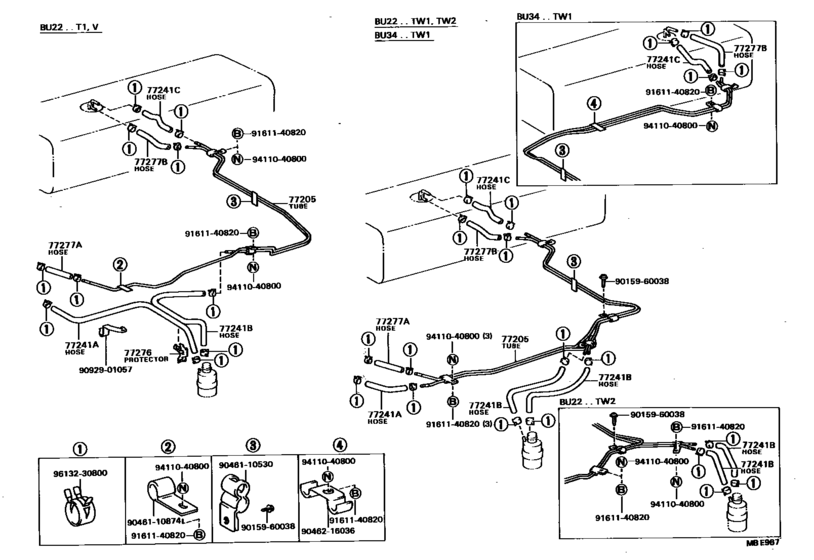

Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2) 20

#	OEM	Part name
77205	77205-36040	Tube Sub-Assy, Fuel Main
77241	23271-56020	Hose, Fuel, No.1 (For Main Tube, No.1)
77241	90445-14115	Hose, Fuel, No.1 (For Main Tube, No.1)
77241	95332-08080	Hose, Fuel, No.1(For Fuel Tank)
77241	95333-08100	Hose, Fuel, No.2 (For Main Tube, No.1)
77241	95332-08040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241	95337-08040	Hose, Fuel, No.2 (For Main Tube, No.1)
77241	95332-08020	Hose, Fuel Pipe, No.1
77241	95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77276	77276-36010	Protector, Fuel Hose
9015960038	90159-60038	SCREWTAPPING
9046110530	90461-10530	New Genuine Part
9046110874	90461-10874	New Genuine Part
9046216036	90462-16036	New Genuine Part
9092901057	90929-01057	Clamp, Injection Pipe, No.2
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9613230800	96132-30800	Clip, No.3(For Idle-Up Hose)
9613230800	96132-51300	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
23271-56020	Hose, Fuel, No.1 (For Main Tube, No.1)	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
77205-36040	Tube Sub-Assy, Fuel Main	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
77276-36010	Protector, Fuel Hose	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
90159-60038	SCREWTAPPING	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
90445-14115	Hose, Fuel, No.1 (For Main Tube, No.1)	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
90461-10530	New Genuine Part	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
90461-10874	New Genuine Part	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
90462-16036	New Genuine Part	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
90929-01057	Clamp, Injection Pipe, No.2	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
94110-40800	Nut(For Steering Damper)	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
94130-00802	Nut, No.1 (For Center Support Bearing)	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
95332-08020	Hose, Fuel Pipe, No.1	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
95332-08040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
95332-08080	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
95333-08100	Hose, Fuel, No.2 (For Main Tube, No.1)	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
95337-08040	Hose, Fuel, No.2 (For Main Tube, No.1)	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
96132-30800	Clip, No.3(For Idle-Up Hose)	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([02.1983 - ] (8302- )HRF,SRF,T1,TW1,TW2)

Source: Public OEM parts-catalog data
Variants: 2 / 20
Category: 168
Collected: 2026-08-03
