Search › Model › BU22

BU22

Toyota DYNA-TOYOACE · 1983 · 3,812 parts · 168 categories

3,812 items

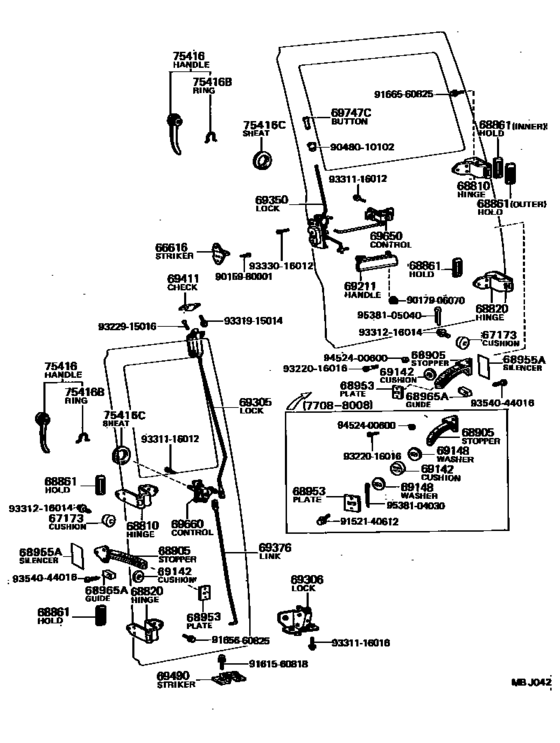

Back Door Lock & Hinge ([08.1977 - ] (7708- )V) 55

#	OEM	Part name
66616	69410-95010	Striker, Tail Gate Lock
66616	69410-37010	Plate Assy, Rear Door Lock Striker
67173	67173-92605	Cushion, Back Door
68810	68011-92605	Hinge Assy, Back Door, Upper
68810	68801-92602	Hinge Assy, Back Door, Upper
68820	68013-92605	Hinge Assy, Back Door, Lower
68820	68803-92601	Hinge Sub-Assy, Back Door, Lower Rh
68861	68861-92601	Hold, Back Door Hinge
68861	68861-92605	Hold, Back Door Hinge
68861	68862-92605	Hold, Back Door Hinge
68861	68863-92600	Hold, Back Door Hinge
68905	68905-92607	Stopper Sub-Assy, Back Door Open
68953	68953-92605	Plate, Back Door Open Stopper Arm Guide
68953	68954-92605	Plate, Back Door Open Stopper Arm Guide
68955	68955-92605	Silencer, Back Door Open Stopper
68965	68965-92605	Guide, Back Door Open Stopper
69142	69142-92606	Cushion, Door Open Stopper
69211	69210-95403	Handle Assy, Front Door, Outside Rh
69305	69370-92605	Lock Sub-Assy, Back Door, Upper
69306	69350-95A00	Lock Sub-Assy, Back Door, Lower
69350	69330-92605	Lock Assy, Back Door
69376	69375-92605	Link, Back Door Lower
69411	69431-92605	Check, Back Door
69490	69450-95A00	Striker Assy, Back Door
69650	69650-92605	Control Assy, Back Door Lock Remote, Rh
69660	69660-92606	Control Assy, Back Door Lock Remote, Lh
69747	69747-20020	Button, Door Locking(For Slide Door) - DOOR LOCKING(FOR FRONT DOOR)
69747	69747-20020-C0	Button, Door Locking(For Front Door)
75416	69271-95110	Handle Assy, Back Door Inside
75416	90520-01192	Ring, Snap (For Back Door Inside Handle)
75416	69171-95110	Sheet(For Back Door Inside Handle)
9015980001	90159-80001	SCREW
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9048010102	90480-10102	Grommet(For Door Panel Lock Button)
9048010102	90480-10102-01	Grommet(For Rear Door Panel Lock Button)
9152140612	91521-40612	New Genuine Part
9152140612	91511-A0612	New Genuine Part
9161560818	91615-60818	Screw Or Bolt(for Valve Rocker Shaft Lock)
9161560818	91611-B0816	Bolt
9165660825	91656-60825	Bolt, Hexagon(For Steering Column Bracket)
9165660825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9166560825	91665-60825	New Genuine Part
9166560825	91661-60825	New Genuine Part
9322016016	93220-16016	SCREW
9322915016	93229-15016	New Genuine Part
9331116012	93311-16012	Screw, Rear Axle Bearing Lock Nut
9331116016	93311-16016	SCREW
9331216014	93312-16014	SCREW W/WASHER
9331915014	93319-15014	Screw, Cover Set, No.1
9333016012	93330-16012	New Genuine Part
9354044016	93540-44016	New Genuine Part
9452400600	94524-00600	New Genuine Part
9538104030	95381-04030	PIN
9538105040	95381-05040	Key, Woodruff(For Steering Idler Arm)

OEM	Part name	Category
67173-92605	Cushion, Back Door	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
68011-92605	Hinge Assy, Back Door, Upper	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
68013-92605	Hinge Assy, Back Door, Lower	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
68801-92602	Hinge Assy, Back Door, Upper	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
68803-92601	Hinge Sub-Assy, Back Door, Lower Rh	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
68861-92601	Hold, Back Door Hinge	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
68861-92605	Hold, Back Door Hinge	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
68862-92605	Hold, Back Door Hinge	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
68863-92600	Hold, Back Door Hinge	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
68905-92607	Stopper Sub-Assy, Back Door Open	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
68953-92605	Plate, Back Door Open Stopper Arm Guide	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
68954-92605	Plate, Back Door Open Stopper Arm Guide	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
68955-92605	Silencer, Back Door Open Stopper	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
68965-92605	Guide, Back Door Open Stopper	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69142-92606	Cushion, Door Open Stopper	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69171-95110	Sheet(For Back Door Inside Handle)	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69210-95403	Handle Assy, Front Door, Outside Rh	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69271-95110	Handle Assy, Back Door Inside	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69330-92605	Lock Assy, Back Door	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69350-95A00	Lock Sub-Assy, Back Door, Lower	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69370-92605	Lock Sub-Assy, Back Door, Upper	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69375-92605	Link, Back Door Lower	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69410-37010	Plate Assy, Rear Door Lock Striker	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69410-95010	Striker, Tail Gate Lock	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69431-92605	Check, Back Door	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69450-95A00	Striker Assy, Back Door	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69650-92605	Control Assy, Back Door Lock Remote, Rh	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69660-92606	Control Assy, Back Door Lock Remote, Lh	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69747-20020	Button, Door Locking(For Slide Door) - DOOR LOCKING(FOR FRONT DOOR)	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
69747-20020-C0	Button, Door Locking(For Front Door)	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
90159-80001	SCREW	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
90480-10102	Grommet(For Door Panel Lock Button)	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
90480-10102-01	Grommet(For Rear Door Panel Lock Button)	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
90520-01192	Ring, Snap (For Back Door Inside Handle)	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
91511-A0612	New Genuine Part	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
91521-40612	New Genuine Part	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
91611-B0816	Bolt	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
91615-60818	Screw Or Bolt(for Valve Rocker Shaft Lock)	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
91656-60825	Bolt, Hexagon(For Steering Column Bracket)	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
91661-60825	New Genuine Part	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
91665-60825	New Genuine Part	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
93220-16016	SCREW	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
93229-15016	New Genuine Part	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
93311-16012	Screw, Rear Axle Bearing Lock Nut	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
93311-16016	SCREW	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
93312-16014	SCREW W/WASHER	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
93319-15014	Screw, Cover Set, No.1	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
93330-16012	New Genuine Part	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
93540-44016	New Genuine Part	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
94524-00600	New Genuine Part	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
95381-04030	PIN	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
95381-05040	Key, Woodruff(For Steering Idler Arm)	Back Door Lock & Hinge ([08.1977 - ] (7708- )V)
