BU172

Toyota DYNA-200-TOYOACE-G25 · 1995 · 4,019 parts · 210 categories

← Back to categories

4,019 items

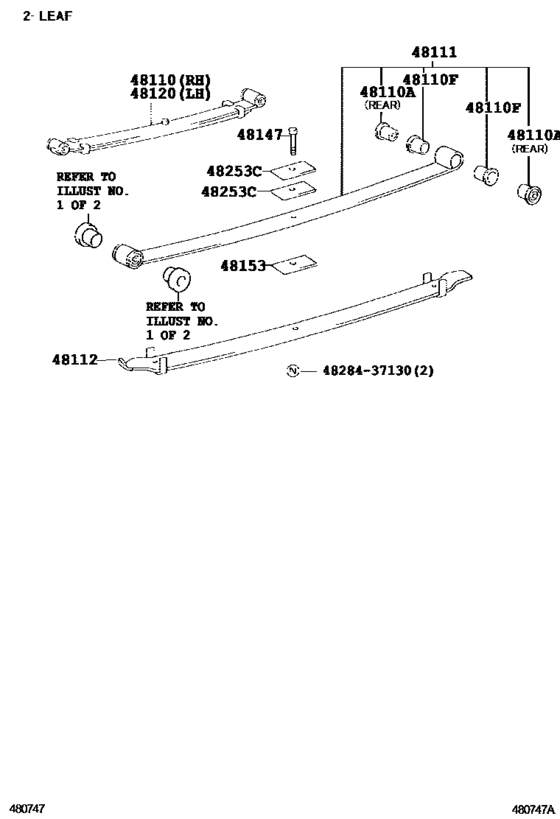

Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1) 14

#	OEM	Part name
48110	48110-3B653	Spring Assy, Front, Rh
48110	90385-23005	Bush(For Front Spring Shackle)
48110	90385-23037	Bush(For Front Spring Shackle)
48110	48299-36010	Bimetal Formed Bush(For Front Spring)
48111	48101-3B653	Leaf, Front Spring, No.1
48111	48101-3B663	Leaf, Front Spring, No.1
48112	48102-3B653	Leaf, Front Spring, No.2
48112	48102-3B663	Leaf, Front Spring, No.2
48120	48110-3B663	Spring Assy, Front, Lh
48147	48247-21240	Bolt, Front Spring, Center
48153	48254-3B521	Spacer, Front Leaf Spring, No.1
48253	48253-25670	Leaf, Front Spring, No.5
48253	48253-3B691	Spacer, Rear Spring, No.1
4828437130	48284-37130	Nut, Front Spring Center Bolt

OEM	Part name	Category
48101-3B653	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
48101-3B663	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
48102-3B653	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
48102-3B663	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
48110-3B653	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
48110-3B663	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
48247-21240	Bolt, Front Spring, Center	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
48253-25670	Leaf, Front Spring, No.5	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
48253-3B691	Spacer, Rear Spring, No.1	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
48254-3B521	Spacer, Front Leaf Spring, No.1	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
48284-37130	Nut, Front Spring Center Bolt	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
48299-36010	Bimetal Formed Bush(For Front Spring)	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
90385-23005	Bush(For Front Spring Shackle)	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
90385-23037	Bush(For Front Spring Shackle)	Front Spring & Shock Absorber ([05.1995 - ] (9505- )BU162,172..DM5,T4,TW1)
