Search › Model › BU172

BU172

Toyota DYNA-200-TOYOACE-G25 · 1995 · 4,019 parts · 210 categories

4,019 items

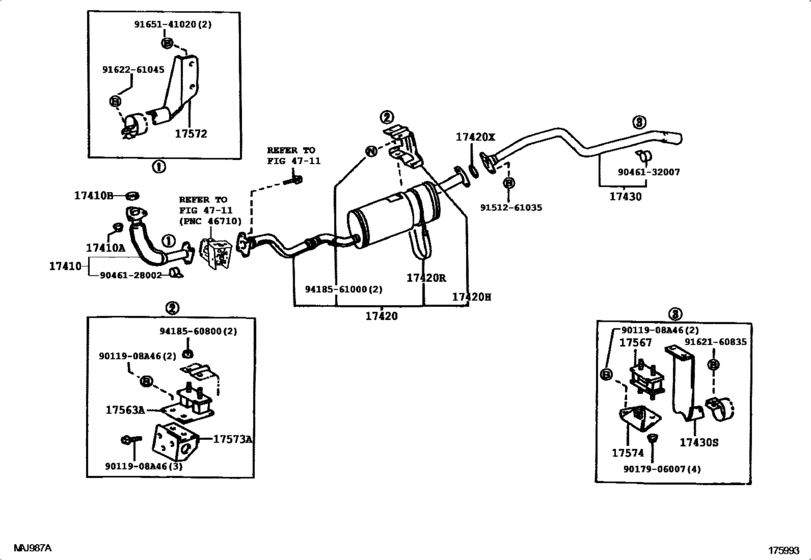

Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172) 28

#	OEM	Part name
17410	17410-58201	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06067	Gasket, Exhaust Pipe
17420	17420-58650	Pipe Assy, Exhaust, Center
17420	17576-58030	Clamp No.1, Exhaust Pipe Center, Center
17420	17504-58020	Clamp No.2, Exhaust Pipe Center, Center
17420	90917-06042	Gasket, Exhaust Pipe
17430	17430-58500	Pipe Assy, Exhaust, Tail
17430	17561-47010	Bracket, Exhaust Pipe Center, Front
17563	17563-58010	Cushion, Exhaust Pipe Center, Center
17563	17563-58041	Cushion, Exhaust Pipe Center, Center - EXHAUST PIPE, NO.3
17567	17567-17010	Cushion, Exhaust Pipe Center, Rear
17572	17571-58280	Bracket, Exhaust Pipe No.1 Support
17573	17573-58090	Bracket, Exhaust Pipe Support, No.3
17574	17574-58060	Bracket, Exhaust Tail Pipe (For Rear)
9011908	90119-08A46	BOLT WWASHER
9017906007	90179-06007	Nut
9046128002	90461-28002	CLAMP
9046132007	90461-32007	Clamp No.1, Exhaust Tail Pipe (For Front)
9151261035	91512-61035	Bolt(For Transaxle Case & Engine Setting)
9151261035	90080-10204	New Genuine Part
9162160835	91621-60835	BOLT
9162160835	91651-B0835	BOLT
9162261045	91622-61045	New Genuine Part
9165141020	91651-41020	BOLT W-WASHER
9418560800	94185-60800	NUT
9418561000	94185-61000	NUTLOCK

OEM	Part name	Category
17410-58201	Pipe Assy, Exhaust, Front	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
17420-58650	Pipe Assy, Exhaust, Center	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
17430-58500	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
17504-58020	Clamp No.2, Exhaust Pipe Center, Center	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
17561-47010	Bracket, Exhaust Pipe Center, Front	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
17563-58010	Cushion, Exhaust Pipe Center, Center	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
17563-58041	Cushion, Exhaust Pipe Center, Center - EXHAUST PIPE, NO.3	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
17567-17010	Cushion, Exhaust Pipe Center, Rear	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
17571-58280	Bracket, Exhaust Pipe No.1 Support	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
17573-58090	Bracket, Exhaust Pipe Support, No.3	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
17574-58060	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
17576-58030	Clamp No.1, Exhaust Pipe Center, Center	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
90080-10204	New Genuine Part	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
90119-08A46	BOLT WWASHER	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
90179-06007	Nut	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
90461-28002	CLAMP	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
90461-32007	Clamp No.1, Exhaust Tail Pipe (For Front)	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
90917-06042	Gasket, Exhaust Pipe	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
90917-06067	Gasket, Exhaust Pipe	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
91512-61035	Bolt(For Transaxle Case & Engine Setting)	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
91621-60835	BOLT	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
91622-61045	New Genuine Part	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
91651-41020	BOLT W-WASHER	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
91651-B0835	BOLT	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
94185-60800	NUT	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
94185-61000	NUTLOCK	Exhaust Pipe ([05.1995 - ] (9505- )15BF..BU172)
