Search › Model › BU162

BU162

Toyota DYNA-200-TOYOACE-G25 · 1995 · 4,189 parts · 213 categories

4,189 items

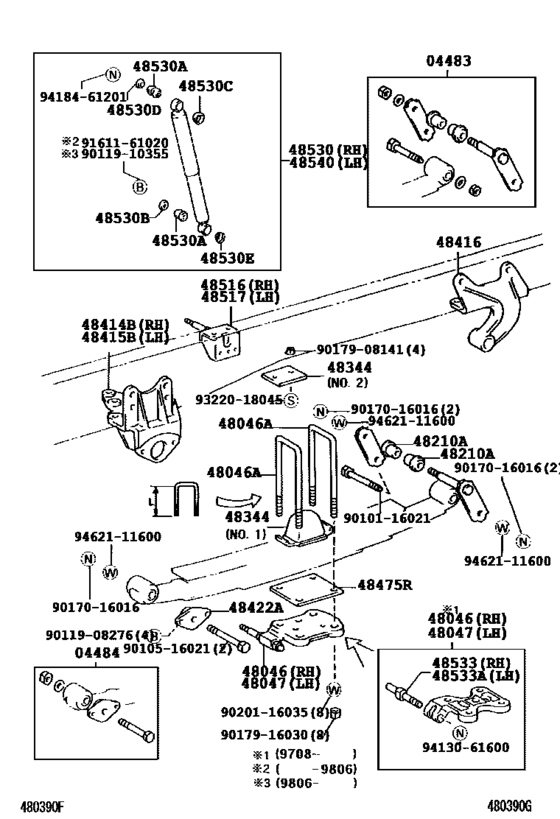

Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162) 40

#	OEM	Part name
4483	04483-36100	Shackle Kit, Rear Spring
4484	04484-36090	Pin Kit, Rear Spring
48046	48046-36230	Seat Sub-Assy, Spring U Bolt, Rh
48046	48046-37040	Seat Sub-Assy, Spring U Bolt, Rh
48046	90117-16021	Bolt, U(For Rear Spring)
48046	90117-16184	Bolt, U(For Rear Spring)
48047	48047-36230	Seat Sub-Assy, Spring U Bolt, Lh
48047	48047-37040	Seat Sub-Assy, Spring U Bolt, Lh
48210	90385-23002	Bush(For Front Spring Pin)
48344	48344-36330	Bumper Sub-Assy, Rear Spring
48344	48344-36400	Stopper, Bumper, Rear
48414	48414-36290	Bracket, Spring, No.3 Rh
48415	48415-36090	Bracket, Spring, No.3 Lh
48416	48416-36280	Bracket, Spring, No.4
48416	48417-36150	Bracket, Spring, No.4
48422	48422-36100	Support, Rear Spring Pin
48475	48475-36051	Plate, Distance(For Rear)
48516	48505-36080	Bracket, Rear Shock Absorber, Upper Rh
48530	48531-80445	Absorber Assy, Shock, Rear Rh
48530	90385-16011	Cushion, Shock Absorber
48530	90948-03007	Washer, Front Shock Absorber Cushion, No.1
48530	90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)
48530	90948-03003	Retainer, Cushion, No.1(For Front Shock Absorber)
48533	48533-36070	Pin, Rear Shock Absorber Lower Pivot, Rh
9010116021	90101-16021	BOLT
9010516021	90105-16021	BOLT
9011908276	90119-08276	New Genuine Part
9011908276	90119-08336	BOLT
9011910355	90119-10355	Washer, Rear Shock Absorber Cushion, No.2
9017016016	90170-16016	NUT HEXAGON
9017908141	90179-08141	Nut (For Transmission Control Cable)
9017908141	90179-08038	Nut
9017916030	90179-16030	NUT
9020116035	90201-16035	New Genuine Part
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9322018045	93220-18045	New Genuine Part
9413061600	94130-61600	Nut, Hexagon(for Sector Shaft To Pitman Arm Setting)
9418461201	94184-61201	Nut, Lock(For Power Steering Control Valve)
9462111600	94621-11600	Washer(For Rear Spring U Bolt)

OEM	Part name	Category
04483-36100	Shackle Kit, Rear Spring	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
04484-36090	Pin Kit, Rear Spring	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48046-36230	Seat Sub-Assy, Spring U Bolt, Rh	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48046-37040	Seat Sub-Assy, Spring U Bolt, Rh	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48047-36230	Seat Sub-Assy, Spring U Bolt, Lh	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48047-37040	Seat Sub-Assy, Spring U Bolt, Lh	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48344-36330	Bumper Sub-Assy, Rear Spring	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48344-36400	Stopper, Bumper, Rear	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48414-36290	Bracket, Spring, No.3 Rh	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48415-36090	Bracket, Spring, No.3 Lh	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48416-36280	Bracket, Spring, No.4	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48417-36150	Bracket, Spring, No.4	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48422-36100	Support, Rear Spring Pin	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48475-36051	Plate, Distance(For Rear)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48505-36080	Bracket, Rear Shock Absorber, Upper Rh	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48531-80445	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
48533-36070	Pin, Rear Shock Absorber Lower Pivot, Rh	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90101-16021	BOLT	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90105-16021	BOLT	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90117-16021	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90117-16184	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90119-08276	New Genuine Part	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90119-08336	BOLT	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90119-10355	Washer, Rear Shock Absorber Cushion, No.2	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90170-16016	NUT HEXAGON	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90179-08038	Nut	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90179-08141	Nut (For Transmission Control Cable)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90179-16030	NUT	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90201-16035	New Genuine Part	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90385-16011	Cushion, Shock Absorber	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90385-23002	Bush(For Front Spring Pin)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90948-03003	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
90948-03007	Washer, Front Shock Absorber Cushion, No.1	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
91611-61020	Bolt(For Transaxle & Engine Setting)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
93220-18045	New Genuine Part	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
94130-61600	Nut, Hexagon(for Sector Shaft To Pitman Arm Setting)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
94184-61201	Nut, Lock(For Power Steering Control Valve)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)
94621-11600	Washer(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU162)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 213
Collected: 2026-08-03
