BU162

Toyota DYNA-200-TOYOACE-G25 · 1995 · 4,189 parts · 213 categories
BU162 ×

← Back to categories

4,189 items

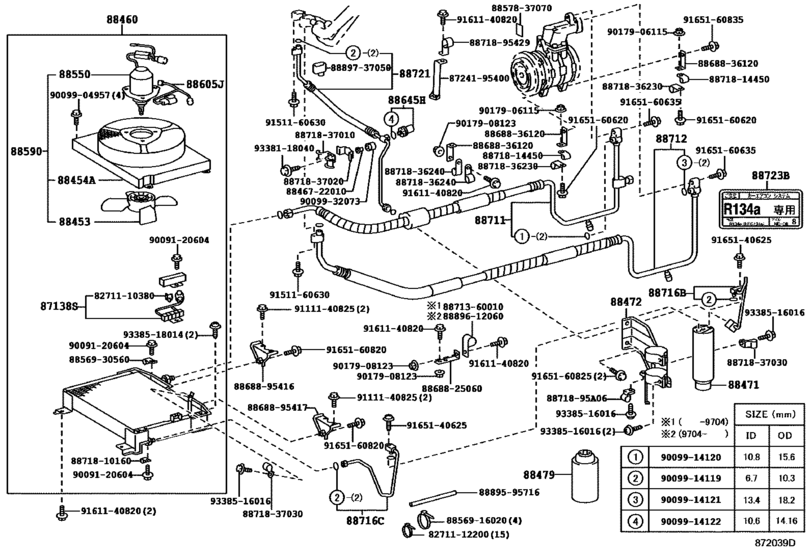

Heating & Air Conditioning - Cooler Piping ([05.1995 - ] ﾚｲﾄｳｼﾔ (9505- )BU162,182) 69
#OEMPart name
87138 87138-37010 Resistor, Blower
88453 88453-95A01 Fan, Cooling (For Condenser)
88454 88454-37010 Shroud, Fan
88460 88460-37140 Condenser Assy, Cooler
88471 88471-34010 Receiver & Dryer Assy, Cooler
88472 88472-37070 Bracket, Receiver Tank, No.1
88479 90986-02007 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88550 87104-37060 Motor Assy, Blower (For Condenser)
88590 88590-37020 Blower Assy, W/shroud
88605 88648-37040 Harness Sub-Assy, Air Conditioner Wiring
88645 88645-60030 Switch, Pressure No.1
88711 88711-37280 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-37450 Hose, Cooler Refrigerant Suction, No.1
88716 88716-37140 Pipe, Cooler Refrigerant Liquid, B
88716 88716-37150 Pipe, Cooler Refrigerant Liquid, C
88721 88721-37220 Pipe, Cooler Refrigerant Suction, No.5
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
8871895 88718-95A06 Pipe, Cooler Refrigerant Suction, No.2
8271110380 82711-10380 Wire, Fuse To Fuse(for Combustion Heater)
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8724195400 87241-95400 Controller, Water Valve
8846722010 88467-22010 Insulator, Cooler Condenser Mounting
8856916020 88569-16020 Clamp (for Cooler Relay)
8856930560 88569-30560 Clamp, Piping, No.2
8857837070 88578-37070 Paking, Cooler Air Duct
8868825060 88688-25060 Bracket, Cooler Diaphragm
8868836120 88688-36120 Bracket, Cooler Diaphragm
8868895416 88688-95416 Bracket, Cooler Condenser, No.1
8868895417 88688-95417 Bracket, Cooler Condenser, No.2
8871360010 88713-60010 Hose, Cooler Refrigerant Suction, No.2
8871810160 88718-10160 Pipe, Cooler Refrigerant Suction, No.2
8871814450 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
8871836230 88718-36230 Pipe, Cooler Refrigerant Suction, No.2
8871836240 88718-36240 Pipe, Cooler Refrigerant Suction, No.2
8871837010 88718-37010 Pipe, Cooler Refrigerant Suction, No.2
8871837020 88718-37020 Pipe, Cooler Refrigerant Suction, No.2
8871837030 88718-37030 Pipe, Cooler Refrigerant Suction, No.2
8871895429 88718-95429 Pipe, Cooler Refrigerant Suction, No.2
8889595716 88895-95716 Insulator(For Water By-Pass Hose)
8889595716 88714-10010 Insulator(For Water By-Pass Hose)
8889612060 88896-12060 Plate, Cooler Air Outlet Grille Ornament
8889737050 88897-37050 Valve, Cooler Magnet
9009120604 90091-20604 New Genuine Part
9009904957 90099-04957 New Genuine Part
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
9009932073 90099-32073 Grommet
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9111140825 91111-40825 Bolt(For Clutch Master Cylinder Setting)
9111140825 91111-50825 Bolt(For Clutch Master Cylinder Setting)
9151160630 91511-60630 BOLT
9161140820 91611-40820 Bolt(For Intake Manifold To Exhaust Manifold)
9165140625 91651-40625 New Genuine Part
9165160620 91651-60620 BOLTWWASHER
9165160635 91651-60635 BOLT
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9165160825 91651-60825 Bolt, Hexagon(For Steering Column Bracket)
9165160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9338118040 93381-18040 New Genuine Part
9338516016 93385-16016 New Genuine Part
9338518014 93385-18014 New Genuine Part
