BU147

Toyota DYNA-200-TOYOACE-G25 · 1996 · 4,527 parts · 216 categories
BU147 ×

← Back to categories

4,527 items

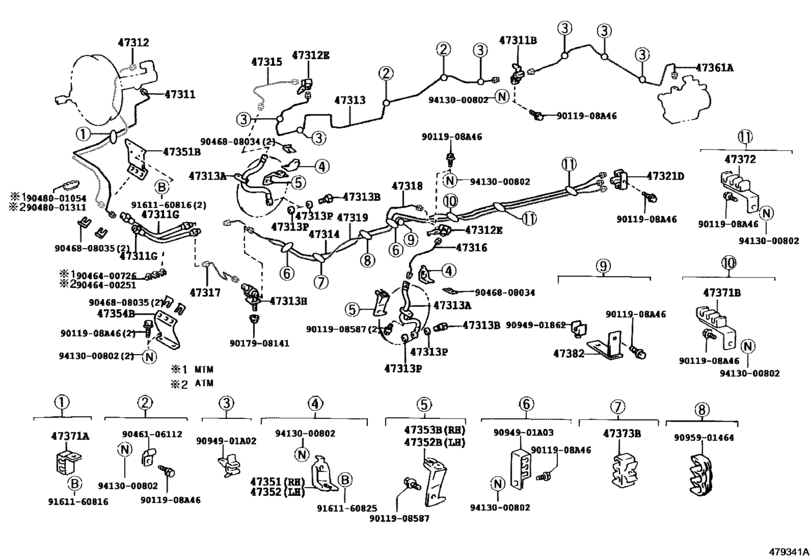

Brake Tube & Clamp ([08.1997 - ] ｱﾘ(ABS) (9708- )BU147..T3) 64
#OEMPart name
47311 47311-37081 Tube, Front Brake, No.1
47311 47311-37141 Tube, Front Brake, No.1
47311 90413-12005 Way, No.1(For Front Brake Tube)
47311 90904-12017 Way, No.1(For Front Brake Tube)
47311 96932-33855 Hose, Clutch, No.1
47311 96932-33857 Hose, Clutch, No.1
47312 47321-37081 Tube, Front Brake, No.2
47312 47321-37141 Tube, Front Brake, No.2
47312 90904-12021 Way, No.2(For Front Brake Tube)
47312 90904-12047 Way, No.2(For Front Brake Tube)
47313 47313-37100 Tube, Front Brake, No.3
47313 47313-37130 Tube, Front Brake, No.3
47313 90947-02899 Hose, Flexible, No.1(For Front)
47313 90947-02A63 Hose, Flexible, No.1(For Front)
47313 90947-02950 Hose, Flexible, No.1(For Front)
47313 90947-02A62 Hose, Flexible, No.1(For Front)
47313 90401-10023 Bolt, Union(For Master Cylinder Fluid Outlet)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47314 47314-37110 Tube, Front Brake, No.4
47314 47314-37150 Tube, Front Brake, No.4
47315 47315-37040 Tube, Front Brake, No.5
47316 47316-37080 Tube, Front Brake, No.6
47317 47312-37040 Tube, Front Brake, No.7
47318 47318-37040 Tube, Front Brake, No.8
47319 47319-37040 Tube, Front Brake, No.9
47319 47322-37140 Tube, Front Brake, No.9
47321 90412-12049 Way, No.1(For Rear Brake Tube)
47321 90904-12020 Way, No.1(For Rear Brake Tube)
47351 47351-37110 Bracket, Flexible Hose(For Front Rh)
47351 47351-37120 Bracket, Flexible Hose, No.1
47352 47352-37060 Bracket, Flexible Hose(For Front Lh)
47352 47356-37020 Bracket, Flexible Hose, No.2
47353 47355-37010 Bracket, Flexible Hose, No.3
47354 47354-37020 Bracket, Flexible Hose, No.4
47361 47361-37050 Tube, Front Brake, No.10
47371 90949-01188 Clamp, Brake Tube, No.1
47371 47371-36070 Clamp, Brake Tube, No.1
47371 47371-37010 Clamp, Brake Tube, No.6
47372 47372-36070 Clamp, Brake Tube, No.2
47373 47373-36050 Clamp, Brake Tube, No.3
47382 47382-36010 Bracket, Tube Clamp, Lh
9011908 90119-08A46 BOLT WWASHER
9094901 90949-01A02 New Genuine Part
9094901 90949-01A03 New Genuine Part
9011908587 90119-08587 New Genuine Part
9011908587 90129-08007 New Genuine Part
9017908141 90179-08141 Nut (For Transmission Control Cable)
9017908141 90179-08038 Nut
9046106112 90461-06112 Clamp, Brake Tube, No.6
9046400251 90464-00251 Clamp, Vacuum Tube
9046400726 90464-00726 Clamp, Brake Tube, No.4
9046808034 90468-08034 CLIP
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9048001054 90480-01054 Grommet(For Brake Tube)
9048001311 90480-01311 Grommet(For Brake Tube)
9094901862 90949-01862 Clamp, Brake Tube, No.5
9095901464 90959-01464 New Genuine Part
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9413000802 94130-00802 Nut, No.1 (For Center Support Bearing)
9413000802 90170-A0001 New Genuine Part
