| 77001-3B130 |
Tank Sub-Assy, Fuel Sub |

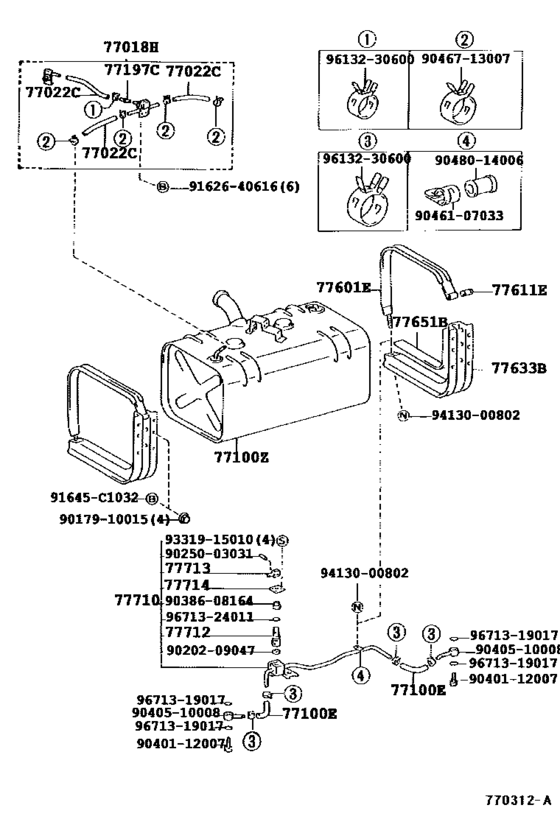

Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 77001-3B131 |
Tank Sub-Assy, Fuel Sub |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 77018-37050 |
Valve Sub-Assy, Fuel Vapour Separate |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 77501-37040 |
Stay, Fuel Tank |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 77601-36140 |
Band Sub-Assy, Fuel Tank, No.1 |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 77601-37030 |
Band Sub-Assy, Fuel Tank, No.1 |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 77629-36010 |
Pin (For Fuel Tank Band) |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 77651-36100 |
Packing, Fuel Tank Bracket |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 77710-36030 |
Cock Assy, Fuel Change |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 77712-36011 |
Valve, Fuel Change Cock |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 77713-36010 |
Lever, Fuel Change Cock |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 77714-36010 |
Cap, Fuel Change Cock |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 90170-A0001 |
New Genuine Part |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 90179-10015 |
NUT |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 90202-09047 |
New Genuine Part |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 90250-03031 |
Pin (For Down Shift Plug Sleeve) |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 90386-08164 |
Bush (For Accelerator Pedal Rod) |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 90401-12007 |
Bolt, Union, No.1 |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 90405-10008 |
Union(For Fuel Sub-Tank) |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 90461-07033 |
New Genuine Part |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 90467-13007 |
Clamp Or Clip(For Water By-Pass Hose No.2) |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 90480-14006 |
New Genuine Part |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 90977-02001 |
Orifice, Fuel Vapour |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 91626-40616 |
New Genuine Part |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 91645-C1032 |
Bolt, Fuel Tank |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 93319-15010 |
SCREW |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 94130-00802 |
Nut, No.1 (For Center Support Bearing) |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 95332-10014 |
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter) |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 95333-06040 |
Hose |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 95333-08030 |
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter) |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 96132-30600 |
Clip(For Actuator Hose) |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 96132-51100 |
Clip (For Hose) |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 96132-51300 |
Clip(For Ventilation Hose No.2) |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 96713-19017 |
New Genuine Part |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
| 96713-24011 |
New Genuine Part |
Fuel Tank & Tube ([05.1995 - ] ｱﾘ(ｻﾌﾞ ﾀﾝｸ) (9505- )BU142,147..T3..20T..CBU..5F ; (9505- )BU14#,212,222..ALV,T3..DSL,TD.. IV3) |
