Search › Model › BU145

BU145

Toyota DYNA-200-TOYOACE-G25 · 1997 · 3,874 parts · 205 categories

3,874 items

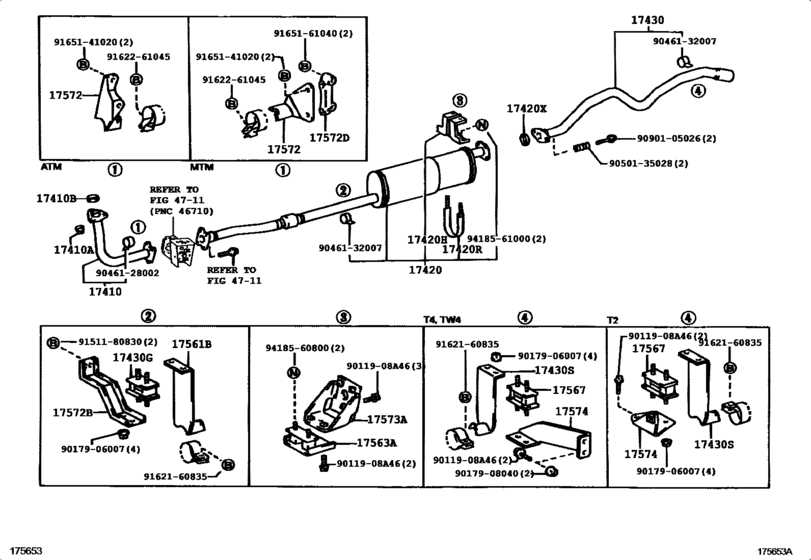

Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147) 32

#	OEM	Part name
17410	17410-58260	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	90917-06067	Gasket, Exhaust Pipe
17420	17420-58870	Pipe Assy, Exhaust, Center
17420	17576-58030	Clamp No.1, Exhaust Pipe Center, Center
17420	17504-58020	Clamp No.2, Exhaust Pipe Center, Center
17420	17451-67010	Gasket, Exhaust Pipe, Center
17430	17430-58650	Pipe Assy, Exhaust, Tail
17430	17567-17010	Cushion, Exhaust Pipe Center, Rear
17430	17561-47010	Bracket, Exhaust Pipe Center, Front
17563	17562-58020	Support, Exhaust Pipe, No.3
17572	17571-58320	Bracket, Exhaust Pipe No.1 Support
17572	17572-58131	Bracket, Exhaust Pipe Support, No.2
17572	17579-73010	Bracket, Exhaust Pipe Front (For Front)
17573	17573-58040	Bracket, Exhaust Pipe, Center
17574	17574-58040	Bracket, Exhaust Tail Pipe (For Rear)
9011908	90119-08A46	BOLT WWASHER
9017906007	90179-06007	Nut
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9046128002	90461-28002	CLAMP
9046132007	90461-32007	Clamp No.1, Exhaust Tail Pipe (For Front)
9050135028	90501-35028	Spring, Exhaust Pipe
9090105026	90901-05026	Bolt, Exhaust Pipe Support
9151180830	91511-80830	Bolt(For Alternator)
9162160835	91621-60835	BOLT
9162160835	91651-B0835	BOLT
9162261045	91622-61045	New Genuine Part
9165141020	91651-41020	BOLT W-WASHER
9165161040	91651-61040	Bolt (For Transfer Case)
9418560800	94185-60800	NUT
9418561000	94185-61000	NUTLOCK

OEM	Part name	Category
17410-58260	Pipe Assy, Exhaust, Front	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
17420-58870	Pipe Assy, Exhaust, Center	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
17430-58650	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
17451-67010	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
17504-58020	Clamp No.2, Exhaust Pipe Center, Center	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
17561-47010	Bracket, Exhaust Pipe Center, Front	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
17562-58020	Support, Exhaust Pipe, No.3	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
17567-17010	Cushion, Exhaust Pipe Center, Rear	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
17571-58320	Bracket, Exhaust Pipe No.1 Support	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
17572-58131	Bracket, Exhaust Pipe Support, No.2	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
17573-58040	Bracket, Exhaust Pipe, Center	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
17574-58040	Bracket, Exhaust Tail Pipe (For Rear)	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
17576-58030	Clamp No.1, Exhaust Pipe Center, Center	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
17579-73010	Bracket, Exhaust Pipe Front (For Front)	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
90119-08A46	BOLT WWASHER	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
90179-06007	Nut	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
90461-28002	CLAMP	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
90461-32007	Clamp No.1, Exhaust Tail Pipe (For Front)	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
90501-35028	Spring, Exhaust Pipe	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
90901-05026	Bolt, Exhaust Pipe Support	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
90917-06067	Gasket, Exhaust Pipe	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
91511-80830	Bolt(For Alternator)	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
91621-60835	BOLT	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
91622-61045	New Genuine Part	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
91651-41020	BOLT W-WASHER	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
91651-61040	Bolt (For Transfer Case)	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
91651-B0835	BOLT	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
94185-60800	NUT	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
94185-61000	NUTLOCK	Exhaust Pipe ([10.1996 - ] (9610- )15BF,3B..BU145,147)
