Search › Model › BU120

BU120

Toyota DYNA-200-TOYOACE-G25 · 1995 · 3,899 parts · 197 categories

3,899 items

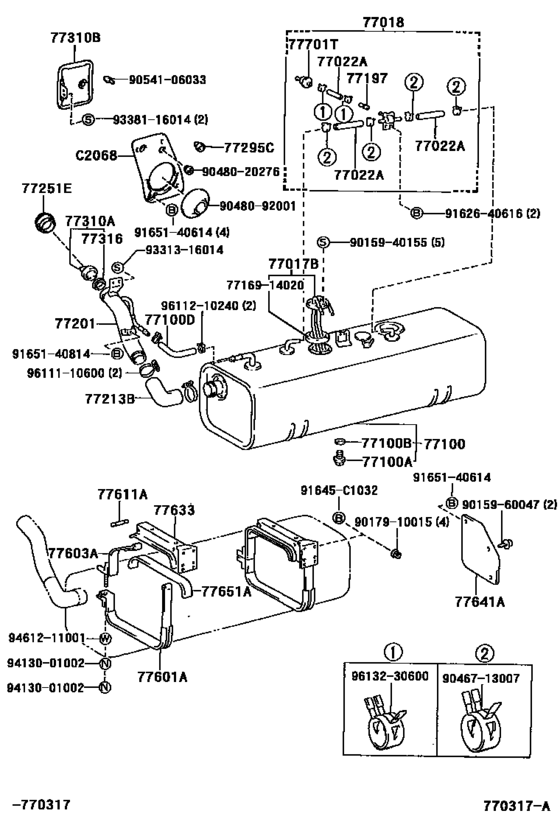

Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120) 56

#	OEM	Part name
77017	77017-36321	Tube Sub-Assy, Fuel Tank Vent
77018	77018-25130	Valve Sub-Assy, Fuel Vapour Separate
77018	77018-37130	Valve Sub-Assy, Fuel Vapour Separate
77018	77018-26140	Valve Sub-Assy, Fuel Vapour Separate
77018	77018-37140	Valve Sub-Assy, Fuel Vapour Separate
77022	95333-06030	Hose, Fuel
77022	95338-06030	HOSE, FUEL
77022	95333-06040	Hose
77022	95333-08020	Hose, Lpg Injector
77022	95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77100	77001-3B030	Tank Assy, Fuel
77100	77001-3B050	Tank Assy, Fuel
77100	77001-37292	Tank Sub-Assy, Fuel
77100	90105-12116	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77100	90445-24015	Hose, Fuel, No.1(For Fuel Tank)
77100	95333-08040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77100	95337-08040	Hose, Fuel, No.2 (For Main Tube, No.1)
77197	90977-02001	Orifice, Fuel Vapour
77201	77201-36150	Pipe Sub-Assy, Fuel Tank Inlet
77213	77213-36070	Hose, Fuel Tank Sub Inlet
77251	77251-10010	Shield, Fuel Tank, Inlet, No.1
77295	77295-27010	Grommet, Fuel Tube
77310	77310-14070	Cap Assy, Fuel Tank
77310	77310-92605	Cover Sub-Assy, Fuel Inlet Box
77310	77310-95700	Cover Sub-Assy, Fuel Inlet Box
77316	77316-12050	Gasket (For Fuel Tank Cap)
77601	77601-25090	Band Sub-Assy, Fuel Tank, No.1
77603	77603-25010	Band Sub-Assy, Fuel Tank, No.2
77611	77653-25010	Pin (For Fuel Tank Band)
77633	77501-25091	Bracket Sub-Assy, Fuel Tank
77641	77641-92600	Protector, Fuel Tank, No.1
77651	77651-26040	Packing, Fuel Tank Bracket
77701	90917-10067	Valve, Check (For Main Fuel Tank)
91645	91645-C1032	Bolt, Fuel Tank
7716914020	77169-14020	Gasket, Fuel Tank Vent
9015940155	90159-40155	SCREW WWASHER
9015960047	90159-60047	SCREWWWASHER
9017910015	90179-10015	NUT
9046713007	90467-13007	Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007	96132-51300	Clip(For Ventilation Hose No.2)
9048020276	90480-20276	Grommet(For Instrument Panel)
9048092001	90480-92001	Grommet
9054106033	90541-06033	New Genuine Part
9162640616	91626-40616	New Genuine Part
9165140614	91651-40614	Bolt
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9331316014	93313-16014	Clamp, Fuel Tube
9338116014	93381-16014	New Genuine Part
9413001002	94130-01002	Nut, Booster Sleeve Cylinder
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)
9611110600	96111-10600	Clamp Or Clip, Hose(For Radiator Outlet No.1)
9611210240	96112-10240	Clamp Or Clip, Hose(For Oil Cooler Hose)
9613230600	96132-30600	Clip(For Actuator Hose)
9613230600	96132-51100	Clip (For Hose)

OEM	Part name	Category
77001-37292	Tank Sub-Assy, Fuel	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77001-3B030	Tank Assy, Fuel	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77001-3B050	Tank Assy, Fuel	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77017-36321	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77018-25130	Valve Sub-Assy, Fuel Vapour Separate	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77018-26140	Valve Sub-Assy, Fuel Vapour Separate	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77018-37130	Valve Sub-Assy, Fuel Vapour Separate	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77018-37140	Valve Sub-Assy, Fuel Vapour Separate	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77169-14020	Gasket, Fuel Tank Vent	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77201-36150	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77213-36070	Hose, Fuel Tank Sub Inlet	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77251-10010	Shield, Fuel Tank, Inlet, No.1	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77295-27010	Grommet, Fuel Tube	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77310-14070	Cap Assy, Fuel Tank	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77310-92605	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77310-95700	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77316-12050	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77501-25091	Bracket Sub-Assy, Fuel Tank	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77601-25090	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77603-25010	Band Sub-Assy, Fuel Tank, No.2	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77641-92600	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77651-26040	Packing, Fuel Tank Bracket	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
77653-25010	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
90080-11228	New Genuine Part	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
90105-12116	Plug(For Fuel Tank)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
90159-40155	SCREW WWASHER	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
90159-60047	SCREWWWASHER	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
90179-10015	NUT	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
90445-24015	Hose, Fuel, No.1(For Fuel Tank)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
90467-13007	Clamp Or Clip(For Water By-Pass Hose No.2)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
90480-20276	Grommet(For Instrument Panel)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
90480-92001	Grommet	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
90541-06033	New Genuine Part	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
90917-10067	Valve, Check (For Main Fuel Tank)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
90977-02001	Orifice, Fuel Vapour	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
91626-40616	New Genuine Part	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
91645-C1032	Bolt, Fuel Tank	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
91651-40614	Bolt	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
91651-40814	BOLT	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
93313-16014	Clamp, Fuel Tube	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
93381-16014	New Genuine Part	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
94130-01002	Nut, Booster Sleeve Cylinder	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
95333-06030	Hose, Fuel	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
95333-06040	Hose	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
95333-08020	Hose, Lpg Injector	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
95333-08040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
95337-08040	Hose, Fuel, No.2 (For Main Tube, No.1)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
95338-06030	HOSE, FUEL	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
96111-10600	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
96112-10240	Clamp Or Clip, Hose(For Oil Cooler Hose)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
96132-30600	Clip(For Actuator Hose)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([05.1995 - ] ｱﾘ(5 ﾄﾞｱ) (9505- )BU120)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 197
Collected: 2026-08-03
