Search › Model › BU112

BU112

Toyota DYNA-200-TOYOACE-G25 · 1995 · 3,296 parts · 183 categories

3,296 items

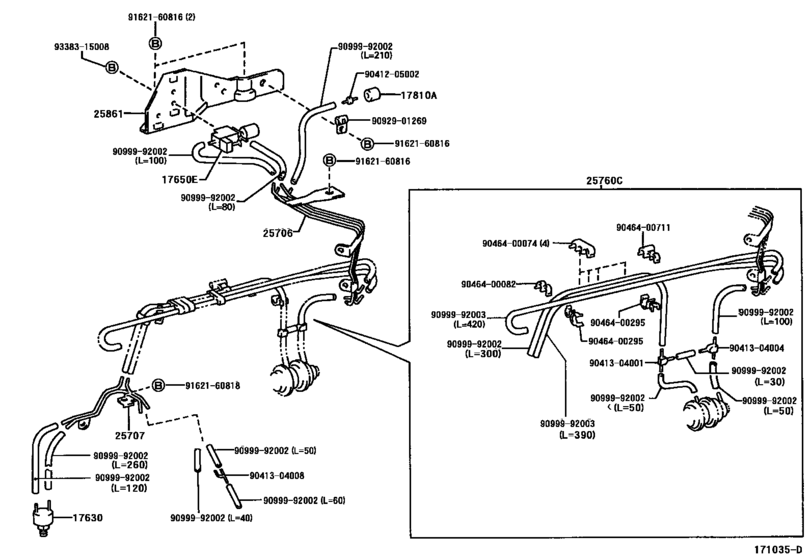

Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112) 23

#	OEM	Part name
17630	17630-15010	Valve Assy, Air Control
17810	90925-06007	Filter Assy, Air
25706	25706-58060	Pipe Sub-Assy, Vacuum Transmitting, No.1
25707	25707-58050	Pipe Sub-Assy, Vacuum Transmitting, No.2
25760	25760-58130	Hose Assy, Vacuum Transmitting, No.3
25861	25861-58010	Bracket, Vacuum Switching Valve
25861	25861-58020	Bracket, Vacuum Switching Valve
9041205002	90412-05002	Way, 2(For Fuel Expansion Tank)
9041304001	90413-04001	Way, 3(For Transfer Breather Hose)
9041304004	90413-04004	Way, 3(For Canister)
9041304008	90413-04008	Way, 3(For Transfer Breather Hose)
9046400074	90464-00074	Joint, No.1 (For Idle Up Divice)
9046400082	90464-00082	Clamp(For Resistive Cord)
9046400295	90464-00295	New Genuine Part
9046400711	90464-00711	New Genuine Part
9092901269	90929-01269	New Genuine Part
9099992002	90999-92002	Air Hose (300 mm)
9099992003	90999-92003	Hose, Breather (For Transfer Case)
9162160816	91621-60816	New Genuine Part
9162160816	91621-B0816	BOLT WWASHER
9162160818	91621-60818	Bolt(For Automatic Transmission Case Protector)
9162160818	91651-B0820	Bolt, Radiator Side Support Plate
9338315008	93383-15008	New Genuine Part

OEM	Part name	Category
17630-15010	Valve Assy, Air Control	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
25706-58060	Pipe Sub-Assy, Vacuum Transmitting, No.1	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
25707-58050	Pipe Sub-Assy, Vacuum Transmitting, No.2	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
25760-58130	Hose Assy, Vacuum Transmitting, No.3	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
25861-58010	Bracket, Vacuum Switching Valve	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
25861-58020	Bracket, Vacuum Switching Valve	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
90412-05002	Way, 2(For Fuel Expansion Tank)	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
90413-04001	Way, 3(For Transfer Breather Hose)	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
90413-04004	Way, 3(For Canister)	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
90413-04008	Way, 3(For Transfer Breather Hose)	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
90464-00074	Joint, No.1 (For Idle Up Divice)	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
90464-00082	Clamp(For Resistive Cord)	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
90464-00295	New Genuine Part	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
90464-00711	New Genuine Part	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
90925-06007	Filter Assy, Air	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
90929-01269	New Genuine Part	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
90999-92002	Air Hose (300 mm)	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
90999-92003	Hose, Breather (For Transfer Case)	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
91621-60816	New Genuine Part	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
91621-60818	Bolt(For Automatic Transmission Case Protector)	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
91621-B0816	BOLT WWASHER	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
91651-B0820	Bolt, Radiator Side Support Plate	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
93383-15008	New Genuine Part	Vacuum Piping ([03.1997 - ] (9703- )15BF..BU102,112)
