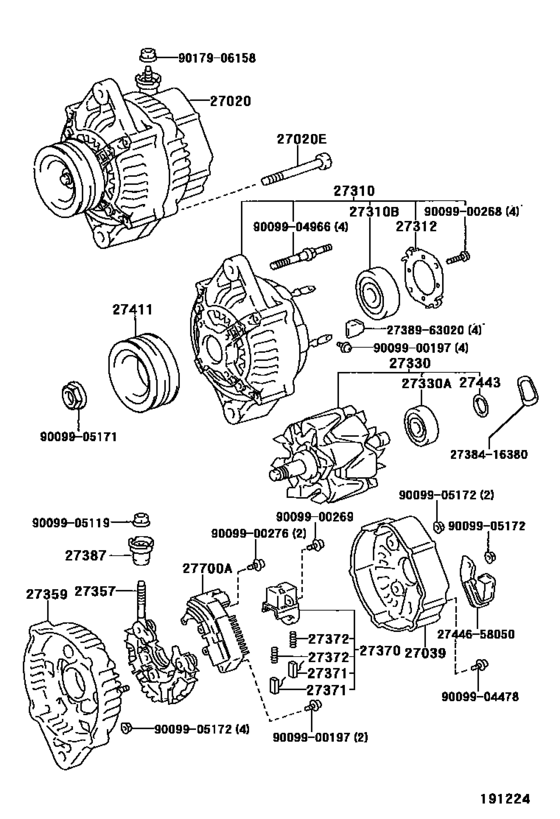

| 27039-16380 |
Cover, Alternator Rear End |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27060-58190 |
Alternator Assy |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27310-58040 |
Frame Assy, Drive End, Alternator |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27312-70200 |
Plate, Bearing Retainer, Alternator |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27330-58040 |
Rotor Assy, Alternator |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27357-16380 |
Holder, Alternator, W/rectifier |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27359-16182 |
Frame, Alternator Rectifier End |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27370-35060 |
Holder Assy, Alternator Brush |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27371-70300 |
Brush, Alternator |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27372-63020 |
Spring, Alternator Brush |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27372-87501 |
Spring, Alternator Brush |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27384-16380 |
Washer |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27387-70171 |
Insulator, Terminal |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27389-63020 |
Insulator, Terminal |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27411-58220 |
Pulley, Alternator |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27443-63020 |
Cover, Alternator Bearing |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27446-58050 |
Clip, Alternator Cord |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 27700-58060 |
Regulator Assy, Generator |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 90099-00197 |
Screw |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 90099-00268 |
Screw(For Alternator Drive End Frame) |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 90099-00269 |
New Genuine Part |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 90099-00276 |
New Genuine Part |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 90099-04478 |
New Genuine Part |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 90099-04966 |
Bearing(for Alternator Rotor) |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 90099-05119 |
New Genuine Part |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 90099-05171 |
Nut(For Alternator Pulley) |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 90099-05172 |
New Genuine Part |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 90099-10140 |
Bearing(For Alternator Rotor) |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 90099-10178 |
Bearing(For Alternator Drive End Frame) |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 90148-10001 |
Bolt(For Alternator) |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
| 90179-06158 |
Nut, Rear Wiper Link Pivot, No.2 |
Alternator ([03.1997 - ] 24V 30A (9703- )15BFT..RHD..GEN..IV3) |
