Search › Model › BK10
BK10

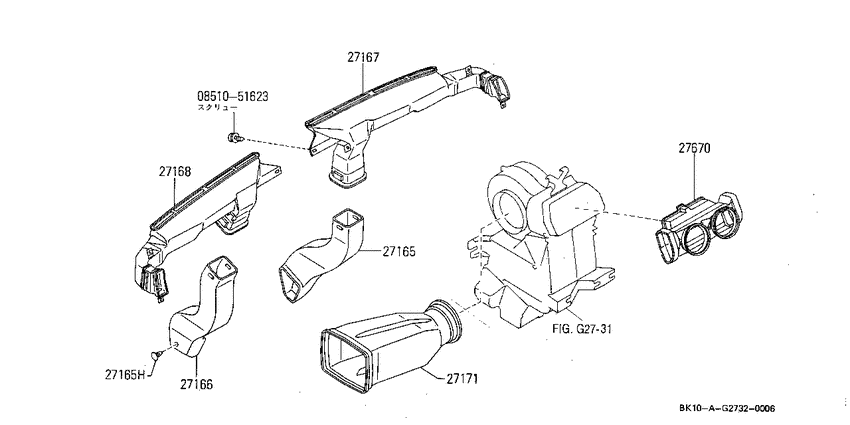

heater,cooler & air conditioner (fitting) (1987-01-01 ~ ; S) 8
| # | OEM | Part name |
|---|---|---|
| 27165 | 27815-01B00 | Duct-Demister, Rh |
| 27165 | 01553-01112 | CLIP |
| 27166 | 27816-01B00 | Duct-Demister, Lh |
| 27167 | 27800-20B00 | ノズル,デミスタ- rh |
| 27168 | 27801-20B00 | ノズル,デミスタ- lh |
| 27171 | 27850-01B00 | Duct-Heater |
| 27670 | 27860-20B00 | ダクト,ベンチレ-タ- センタ- |
| 851051623 | 08510-51623 | スクリユ-,タツピング |
| OEM | Part name | Category |
|---|---|---|
| 01553-01112 | CLIP | heater,cooler & air conditioner (fitting) (1987-01-01 ~ ; S) |
| 08510-51623 | スクリユ-,タツピング | heater,cooler & air conditioner (fitting) (1987-01-01 ~ ; S) |
| 27800-20B00 | ノズル,デミスタ- rh | heater,cooler & air conditioner (fitting) (1987-01-01 ~ ; S) |
| 27801-20B00 | ノズル,デミスタ- lh | heater,cooler & air conditioner (fitting) (1987-01-01 ~ ; S) |
| 27815-01B00 | Duct-Demister, Rh | heater,cooler & air conditioner (fitting) (1987-01-01 ~ ; S) |
| 27816-01B00 | Duct-Demister, Lh | heater,cooler & air conditioner (fitting) (1987-01-01 ~ ; S) |
| 27850-01B00 | Duct-Heater | heater,cooler & air conditioner (fitting) (1987-01-01 ~ ; S) |
| 27860-20B00 | ダクト,ベンチレ-タ- センタ- | heater,cooler & air conditioner (fitting) (1987-01-01 ~ ; S) |
