Search › Model › BK10
BK10

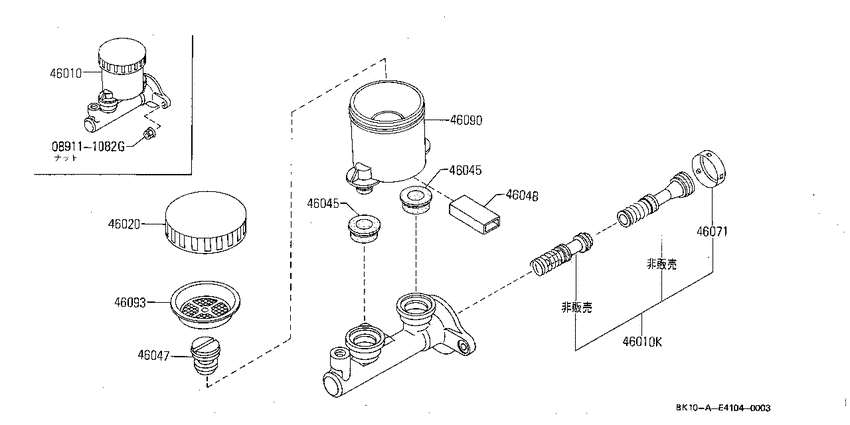

Brake master cylinder (1987-01-01 ~ ; S) 6
| # | OEM | Part name |
|---|---|---|
| 46020 | 46020-04M10 | キヤツプ アツセンブリ-,オイル リザ-バ- タンク |
| 46047 | 46047-01B10 | Float-Reservoir Tank |
| 46048 | 46048-01B10 | Indicator Assy-Level |
| 46071 | 46082-01B11 | Ring-Snap |
| 46090 | 46091-01B10 | Tank-Oil Reservoir |
| 46093 | 46093-01B11 | Strainer-Brake Oil |
| OEM | Part name | Category |
|---|---|---|
| 46020-04M10 | キヤツプ アツセンブリ-,オイル リザ-バ- タンク | Brake master cylinder (1987-01-01 ~ ; S) |
| 46047-01B10 | Float-Reservoir Tank | Brake master cylinder (1987-01-01 ~ ; S) |
| 46048-01B10 | Indicator Assy-Level | Brake master cylinder (1987-01-01 ~ ; S) |
| 46082-01B11 | Ring-Snap | Brake master cylinder (1987-01-01 ~ ; S) |
| 46091-01B10 | Tank-Oil Reservoir | Brake master cylinder (1987-01-01 ~ ; S) |
| 46093-01B11 | Strainer-Brake Oil | Brake master cylinder (1987-01-01 ~ ; S) |
