Search › Model › BJ71

BJ71

Toyota LAND-CRUISER · 1985 · 6,414 parts · 275 categories

6,414 items

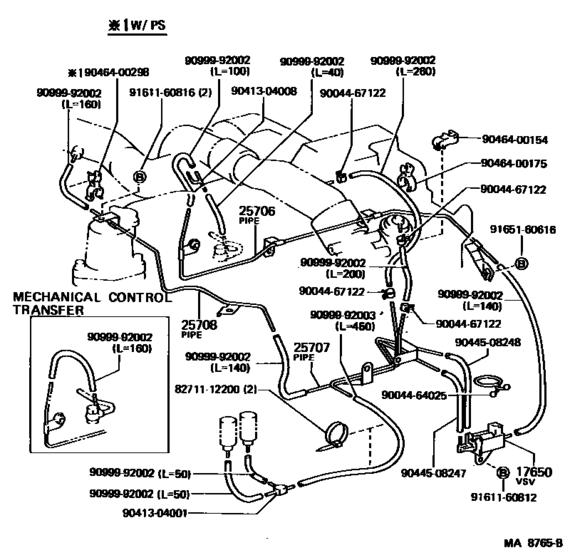

Vacuum Piping ([10.1985 - ] (8510- )13BT) 26

#	OEM	Part name
17650	90910-12020	Valve Assy, Vacuum Switching
25706	25706-56012	Pipe Sub-Assy, Vacuum Transmitting, No.1
25706	25706-56013	Pipe Sub-Assy, Vacuum Transmitting, No.1
25707	25707-58010	Pipe Sub-Assy, Vacuum Transmitting, No.2
25708	25708-58010	Pipe Sub-Assy, Vacuum Transmitting, No.3
8271112200	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
9004464025	90044-64025	Clamp, Wiring Harness
9004467122	90044-67122	Clip(For Intake Manifold)
9041304001	90413-04001	Way, 3(For Transfer Breather Hose)
9041304004	90413-04004	Way, 3(For Canister)
9041304008	90413-04008	Way, 3(For Transfer Breather Hose)
9044508247	90445-08247	New Genuine Part
9044508248	90445-08248	New Genuine Part
9046400102	90464-00102	Clamp, No.3(For Luggage Door Lock Control Cable)
9046400154	90464-00154	New Genuine Part
9046400175	90464-00175	New Genuine Part
9046400298	90464-00298	Clamp, No.2 (For Transfer Vacuum)
9091710049	90917-10049	Valve, Check, No.1
9092504004	90925-04004	Valve, Vacuum Transmitting, No.1
9099992002	90999-92002	Air Hose (300 mm)
9099992003	90999-92003	Hose, Breather (For Transfer Case)
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9165160616	91651-60616	BOLT

OEM	Part name	Category
25706-56012	Pipe Sub-Assy, Vacuum Transmitting, No.1	Vacuum Piping ([10.1985 - ] (8510- )13BT)
25706-56013	Pipe Sub-Assy, Vacuum Transmitting, No.1	Vacuum Piping ([10.1985 - ] (8510- )13BT)
25707-58010	Pipe Sub-Assy, Vacuum Transmitting, No.2	Vacuum Piping ([10.1985 - ] (8510- )13BT)
25708-58010	Pipe Sub-Assy, Vacuum Transmitting, No.3	Vacuum Piping ([10.1985 - ] (8510- )13BT)
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90044-64025	Clamp, Wiring Harness	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90044-67122	Clip(For Intake Manifold)	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90413-04001	Way, 3(For Transfer Breather Hose)	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90413-04004	Way, 3(For Canister)	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90413-04008	Way, 3(For Transfer Breather Hose)	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90445-08247	New Genuine Part	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90445-08248	New Genuine Part	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90464-00102	Clamp, No.3(For Luggage Door Lock Control Cable)	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90464-00154	New Genuine Part	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90464-00175	New Genuine Part	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90464-00298	Clamp, No.2 (For Transfer Vacuum)	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90910-12020	Valve Assy, Vacuum Switching	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90917-10049	Valve, Check, No.1	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90925-04004	Valve, Vacuum Transmitting, No.1	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90999-92002	Air Hose (300 mm)	Vacuum Piping ([10.1985 - ] (8510- )13BT)
90999-92003	Hose, Breather (For Transfer Case)	Vacuum Piping ([10.1985 - ] (8510- )13BT)
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Vacuum Piping ([10.1985 - ] (8510- )13BT)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Vacuum Piping ([10.1985 - ] (8510- )13BT)
91611-B0812	Bolt	Vacuum Piping ([10.1985 - ] (8510- )13BT)
91611-B0816	Bolt	Vacuum Piping ([10.1985 - ] (8510- )13BT)
91651-60616	BOLT	Vacuum Piping ([10.1985 - ] (8510- )13BT)
