BJ71

Toyota LAND-CRUISER · 1985 · 6,414 parts · 275 categories

6,414 items

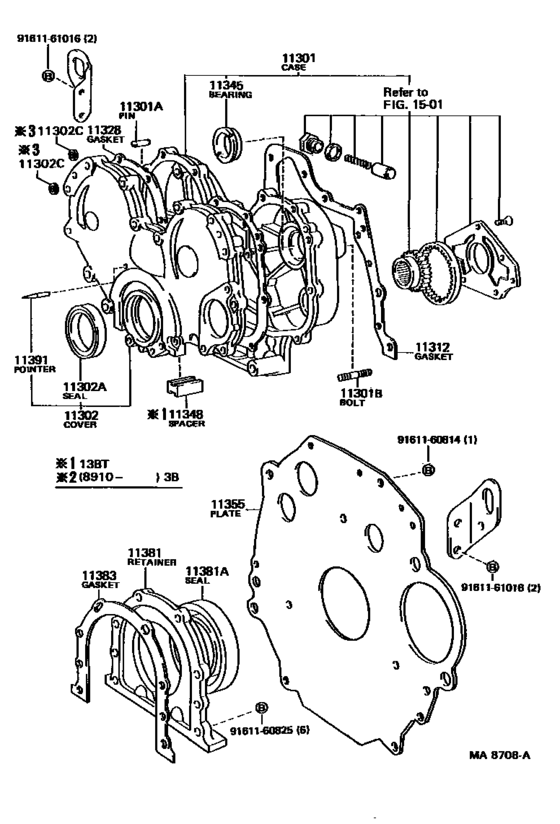

Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B) 32

#	OEM	Part name
11301	11301-56060	Case Sub-Assy, Timing Gear
11301	90250-08120	Pin, Straight, No.1
11301	90116-10048	Bolt,stud(For Timing Gear Case)
11301	90116-10093	Bolt, Stud(For Turbocharger)
11302	11302-56040	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-50007	Seal, Oil(For Timing Chain Or Belt Cover)
11302	90311-50013	Seal, Oil(For Timing Chain Or Belt Cover)
11312	11312-56031	Gasket, Front End Plate
11312	11312-56040	Gasket, Front End Plate
11328	11328-56040	Gasket, Timing Gear Or Chain Cover
11328	11328-56041	Gasket, Timing Gear Or Chain Cover
11345	11345-56020	Bearing, Injection Pump Gear Thrust
11348	11348-56010	Spacer, Timing Gear Cover
11355	11355-56053	Plate, Rear End
11355	11355-58030	Plate, Rear End
11355	11355-56060	Plate, Rear End
11355	11355-56061	Plate, Rear End
11381	11381-56031	Retainer, Engine Rear Oil Seal
11381	11381-58011	Retainer, Engine Rear Oil Seal
11381	90311-95008	Seal, Engine Rear Oil
11381	11381-56032	Retainer, Engine Rear Oil Seal
11381	11381-56033	Retainer, Engine Rear Oil Seal
11381	90311-95003	Seal, Engine Rear Oil
11381	90311-95005	Seal, Engine Rear Oil
11383	11383-56031	Gasket, Engine Rear Oil Seal Retainer
11383	11383-56040	Gasket, Engine Rear Oil Seal Retainer
11391	11391-56020	Pointer, Timing
9161160814	91611-60814	Bolt
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161161016	91611-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161016	91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)

OEM	Part name	Category
11301-56060	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11302-56040	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11312-56031	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11312-56040	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11328-56040	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11328-56041	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11345-56020	Bearing, Injection Pump Gear Thrust	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11348-56010	Spacer, Timing Gear Cover	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11355-56053	Plate, Rear End	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11355-56060	Plate, Rear End	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11355-56061	Plate, Rear End	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11355-58030	Plate, Rear End	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11381-56031	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11381-56032	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11381-56033	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11381-58011	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11383-56031	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11383-56040	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
11391-56020	Pointer, Timing	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
90116-10048	Bolt,stud(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
90116-10093	Bolt, Stud(For Turbocharger)	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
90250-08120	Pin, Straight, No.1	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
90311-50007	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
90311-50013	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
90311-95003	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
90311-95005	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
90311-95008	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
91611-60814	Bolt	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
91611-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Timing Gear Cover & Rear End Plate ([11.1984 - ] (8411- )13BT,3B)
