Search › Model › BJ71

BJ71

Toyota LAND-CRUISER · 1985 · 6,414 parts · 275 categories

6,414 items

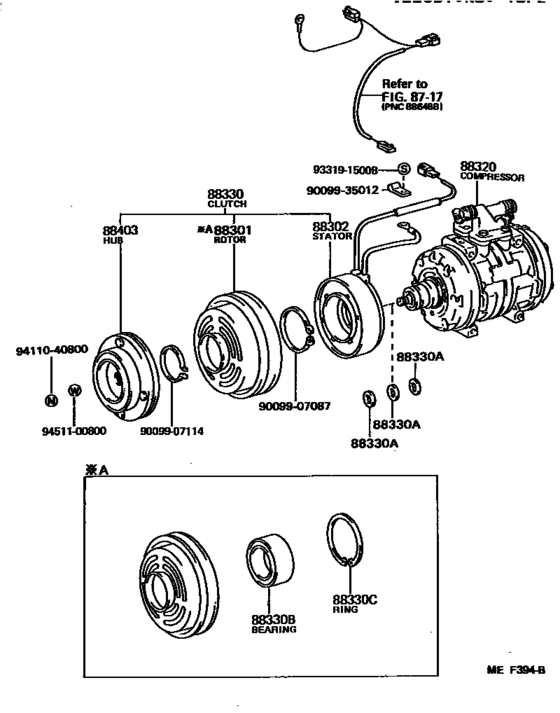

Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- )) 21

#	OEM	Part name
88301	88412-22030	Rotor Sub-Assy, Magnet Clutch
88302	88411-25020	Stator Sub-Assy, Magnet Clutch
88320	88320-60170	Compressor Assy, Cooler
88320	88320-60171	Compressor Assy, Cooler
88330	88410-60070	Clutch Assy, Magnet
88330	88335-12050	Washer (For Magnet Clutch)
88330	90099-01108	Washer (For Magnet Clutch)
88330	90099-01350	Washer (For Magnet Clutch)
88330	90099-01351	Washer (For Magnet Clutch)
88330	90099-10133	Bearing, Ball(For Clutch Pully)
88330	90099-10162	Bearing (For Magnet Clutch)
88330	90099-07094	Ring, Snap (For Magnet Clutch)
88403	88403-12030	Hub Sub-Assy, Magnet Clutch
88403	88403-14030	Hub Sub-Assy, Magnet Clutch
9009907087	90099-07087	Bearing, Magnet Clutch
9009907114	90099-07114	Ring, Snap (For Magnet Clutch)
9009935012	90099-35012	CLIP
9331915008	93319-15008	SCREW
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
88320-60170	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
88320-60171	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
88335-12050	Washer (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
88403-12030	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
88403-14030	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
88410-60070	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
88411-25020	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
88412-22030	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
90099-01108	Washer (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
90099-01350	Washer (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
90099-01351	Washer (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
90099-07087	Bearing, Magnet Clutch	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
90099-07094	Ring, Snap (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
90099-07114	Ring, Snap (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
90099-10133	Bearing, Ball(For Clutch Pully)	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
90099-10162	Bearing (For Magnet Clutch)	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
90099-35012	CLIP	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
93319-15008	SCREW	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
94110-40800	Nut(For Steering Damper)	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
94511-00800	WASHERSPRING	Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- ))
