Search › Model › BJ71

BJ71

Toyota LAND-CRUISER · 1985 · 6,414 parts · 275 categories

6,414 items

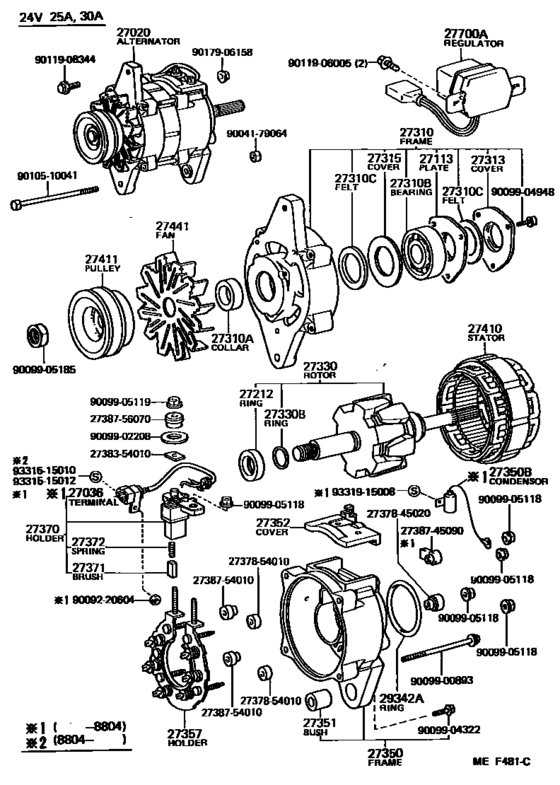

Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT) 67

#	OEM	Part name
27020	27020-56310	Alternator Assy
27020	27020-56320	Alternator Assy
27020	27020-56400	Alternator Assy
27036	27036-57080	Terminal Sub-Assy, Lead Wire, Alternator
27036	27036-57060	Terminal Sub-Assy, Lead Wire, Alternator
27036	27036-56390	Terminal Sub-Assy, Lead Wire, Alternator
27113	27312-57060	Plate, Bearing Retainer, Alternator
27212	27333-57060	Ring, Space(For Alternator Rotor)
27310	27310-56110	Frame Assy, Drive End, Alternator
27310	27310-56180	Frame Assy, Drive End, Alternator
27310	27412-57060	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10137	Bearing(For Alternator Drive End Frame)
27310	90099-02209	Felt(For Alternator Drive End Frame)
27313	27313-57060	Cover, Alternator Felt, Inner No.2
27315	27315-57060	Cover, Alternator Felt, Inner No.1
27330	27330-56110	Rotor Assy, Alternator
27330	90099-07103	Ring, Snap(For Alternator Rotor)
27330	27330-56390	Rotor Assy, Alternator
27350	27350-56110	Frame Assy, Rectifier End
27350	90099-52066	Condenser, Alternator
27350	90099-52035	Condenser, Alternator - RECTIFIER END
27351	27351-56013	Bush(For Alternator Rectifier End Frame)
27352	27388-56100	Cover, Frame Brush
27352	27388-57060	Cover, Frame Brush
27352	27388-57070	Cover, Frame Brush
27352	27388-54070	Cover, Frame Brush
27357	27357-56310	Holder, Alternator, W/rectifier
27357	27357-64060	Holder, Alternator, W/rectifier
27370	27370-57080	Holder Assy, Alternator Brush
27370	27370-56210	Holder Assy, Alternator Brush
27370	27373-57120	Holder Assy, Alternator Brush
27370	27373-57121	Holder Assy, Alternator Brush
27371	27371-56070	Brush, Alternator
27371	27371-54412	Brush, Alternator
27372	27372-56070	Spring, Alternator Brush
27410	27410-56310	Stator Assy, Alternator
27410	27410-56390	Stator Assy, Alternator
27411	27411-57060	Pulley, Alternator
27441	27441-56090	Fan, Alternator
27700	27700-57080	Regulator Assy, Generator
27700	27700-57050	Regulator Assy, Generator
27700	27700-57051	Regulator Assy, Generator
29342	90099-14055	Packing, Vacuum Pump
2737845020	27378-45020	Insulator, Alternator, No.1
2737854010	27378-54010	Insulator, Alternator, No.2
2738354010	27383-54010	Washer, Alternater Terminal Insulator, No.1
2738745090	27387-45090	Insulator, Terminal
2738754010	27387-54010	Insulator, Terminal
2738756070	27387-56070	Insulator, Terminal
9004179064	90041-79064	New Genuine Part
9009220604	90092-20604	Nut, Wire Adjusting, No.1
9009220604	94120-40600	Nut, Wire Adjusting, No.1
9009900893	90099-00893	BOLT
9009902208	90099-02208	New Genuine Part
9009904322	90099-04322	New Genuine Part
9009904947	90099-04947	New Genuine Part
9009904948	90099-04948	New Genuine Part
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9009905185	90099-05185	NUT
9010510041	90105-10041	New Genuine Part
9011906005	90119-06005	New Genuine Part
9011908344	90119-08344	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9331515010	93315-15010	New Genuine Part
9331515012	93315-15012	SCREWWWASHER
9331915008	93319-15008	SCREW

OEM	Part name	Category
27020-56310	Alternator Assy	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27020-56320	Alternator Assy	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27020-56400	Alternator Assy	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27036-56390	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27036-57060	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27036-57080	Terminal Sub-Assy, Lead Wire, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27310-56110	Frame Assy, Drive End, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27310-56180	Frame Assy, Drive End, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27312-57060	Plate, Bearing Retainer, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27313-57060	Cover, Alternator Felt, Inner No.2	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27315-57060	Cover, Alternator Felt, Inner No.1	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27330-56110	Rotor Assy, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27330-56390	Rotor Assy, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27333-57060	Ring, Space(For Alternator Rotor)	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27350-56110	Frame Assy, Rectifier End	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27351-56013	Bush(For Alternator Rectifier End Frame)	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27357-56310	Holder, Alternator, W/rectifier	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27357-64060	Holder, Alternator, W/rectifier	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27370-56210	Holder Assy, Alternator Brush	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27370-57080	Holder Assy, Alternator Brush	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27371-54412	Brush, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27371-56070	Brush, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27372-56070	Spring, Alternator Brush	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27373-57120	Holder Assy, Alternator Brush	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27373-57121	Holder Assy, Alternator Brush	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27378-45020	Insulator, Alternator, No.1	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27378-54010	Insulator, Alternator, No.2	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27383-54010	Washer, Alternater Terminal Insulator, No.1	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27387-45090	Insulator, Terminal	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27387-54010	Insulator, Terminal	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27387-56070	Insulator, Terminal	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27388-54070	Cover, Frame Brush	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27388-56100	Cover, Frame Brush	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27388-57060	Cover, Frame Brush	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27388-57070	Cover, Frame Brush	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27410-56310	Stator Assy, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27410-56390	Stator Assy, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27411-57060	Pulley, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27412-57060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27441-56090	Fan, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27700-57050	Regulator Assy, Generator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27700-57051	Regulator Assy, Generator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
27700-57080	Regulator Assy, Generator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90041-79064	New Genuine Part	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90092-20604	Nut, Wire Adjusting, No.1	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-00893	BOLT	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-02208	New Genuine Part	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-02209	Felt(For Alternator Drive End Frame)	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-04322	New Genuine Part	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-04947	New Genuine Part	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-04948	New Genuine Part	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-05118	New Genuine Part	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-05119	New Genuine Part	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-05185	NUT	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-07103	Ring, Snap(For Alternator Rotor)	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-10137	Bearing(For Alternator Drive End Frame)	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-14055	Packing, Vacuum Pump	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-52035	Condenser, Alternator - RECTIFIER END	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90099-52066	Condenser, Alternator	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90105-10041	New Genuine Part	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90119-06005	New Genuine Part	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90119-08344	New Genuine Part	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
93315-15010	New Genuine Part	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
93315-15012	SCREWWWASHER	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
93319-15008	SCREW	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
94120-40600	Nut, Wire Adjusting, No.1	Alternator ([11.1984 - 08.1988] (8411-8808)13BT,3B ; (8808- )13BT)
